Operation
CLUTCH/BRAKE
PEDAL
OPERATION
Refer
to
figure
11.
Depressing
pedal
from
position
A
to
B
disengages
transmission
drive.
Depressing
pedal
further
from
position
B
to
C
will
also
apply
tractor
brake.
Parking
brake
is
applied
at
position
C
when
pedal
is
latched
over
foot
rest
as
shown
in
figure
11.

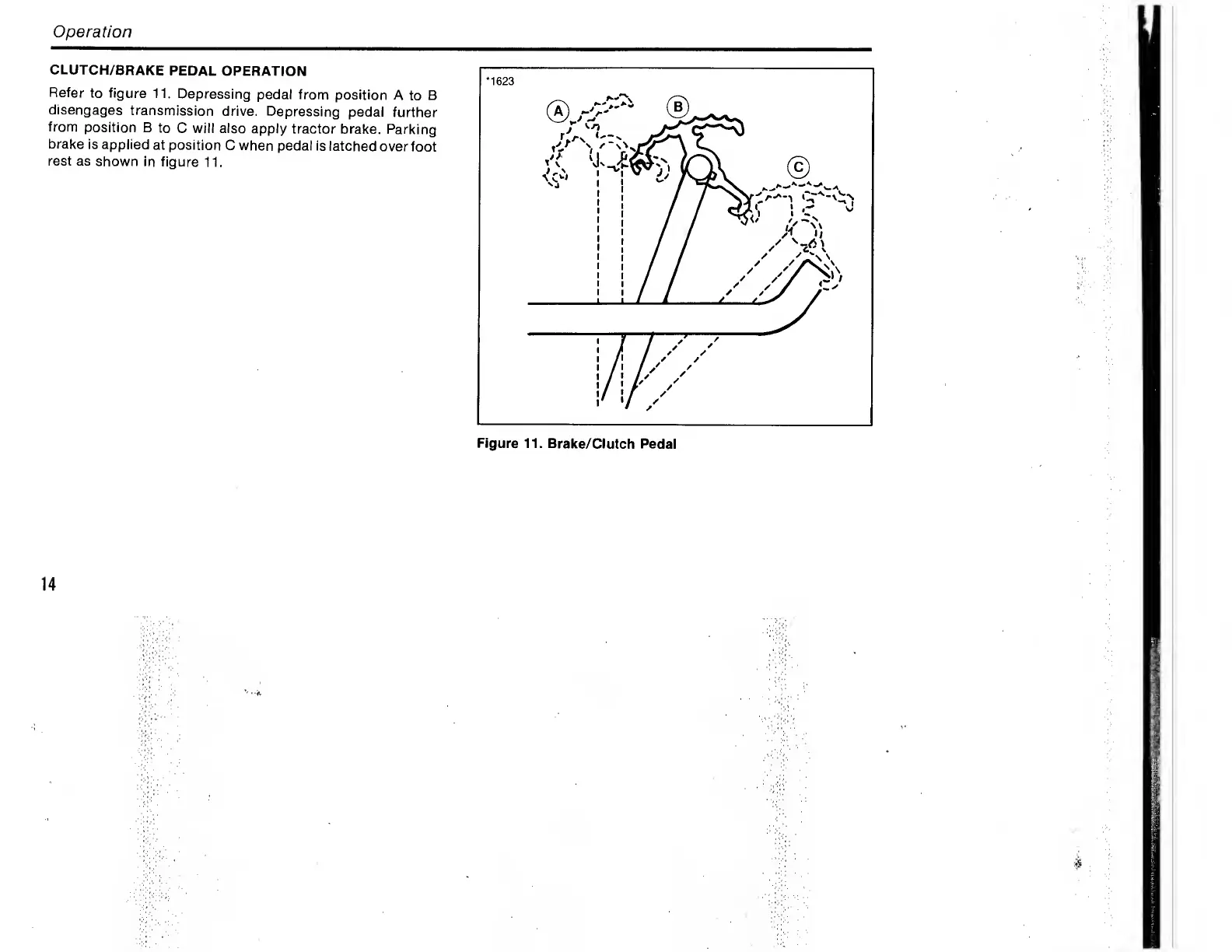

Figure
11.
Brake/Clutch
Pedal
