Troubleshooting, Adjustments, & Service
FUSE REPLACEMENT
1. Park the rider on a smooth, level surface such as a
concrete floor. Disengage the PTO, lock the motion
control levers into their neutral locked positions, turn
off the engine, and remove the ignition key.
2. Raise the seat. The fuse block (A, Figure 36) is
located on the right side of the rear seat support.
3. Remove and check the suspected fuse (or fuses). If
blown, replace with a fuse with a rating equal to the
ratings indicated in Figure 37.
A

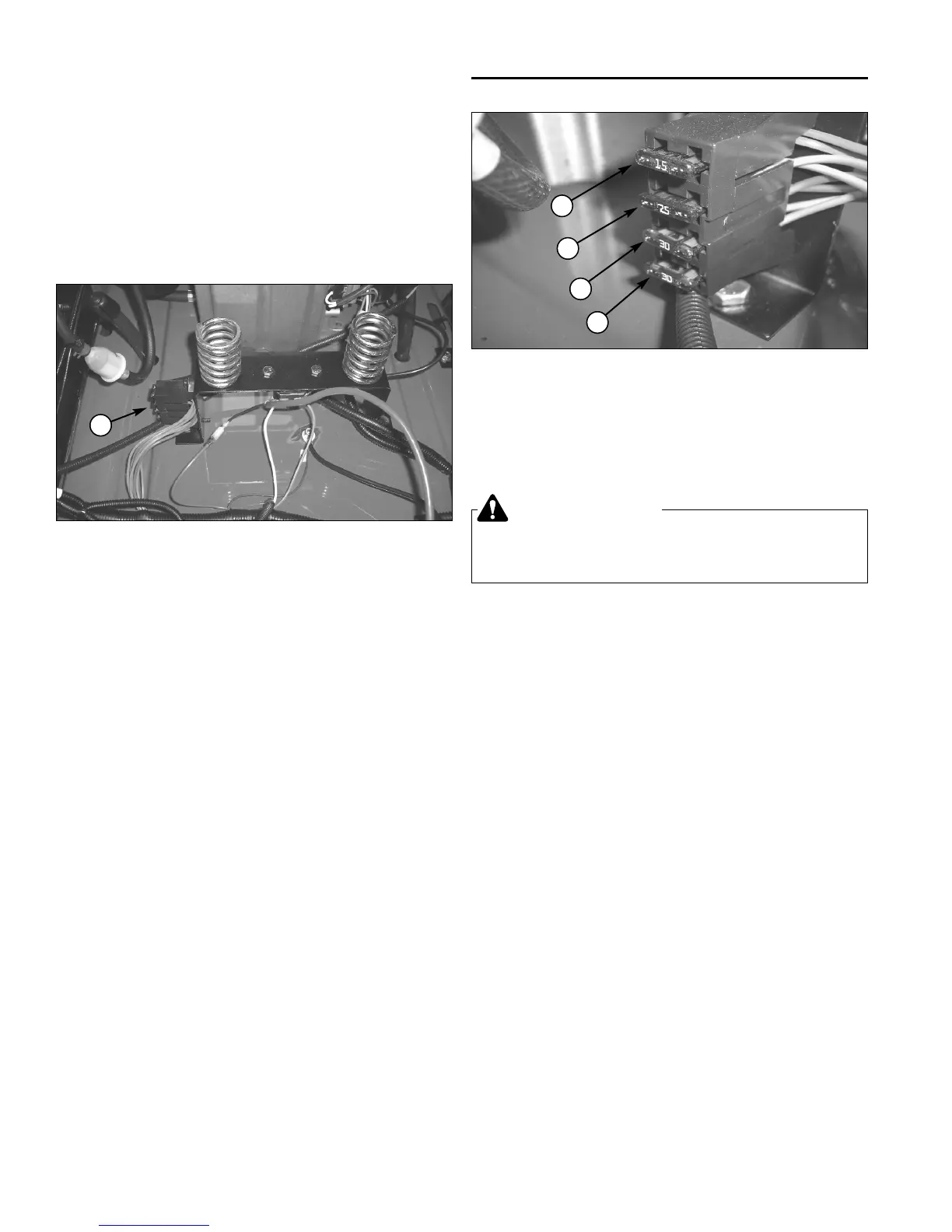

Figure 36. Fuse Replacement
(View looking back from under raised seat)
A. Fuse Block
WARNING
Do not use a fuse with a rating other than that
specified. Serious equipment damage may result.
A
Figure 37. Fuse Designations and Ratings
A. Start - 15 Amp
B. PTO - 7.5 Amp
C. Charge - 30 Amp
D. Accessory - 30 Amp
B
C
D
