Simplicity SOVEREIGN 3415S - Page 20

I
I
I

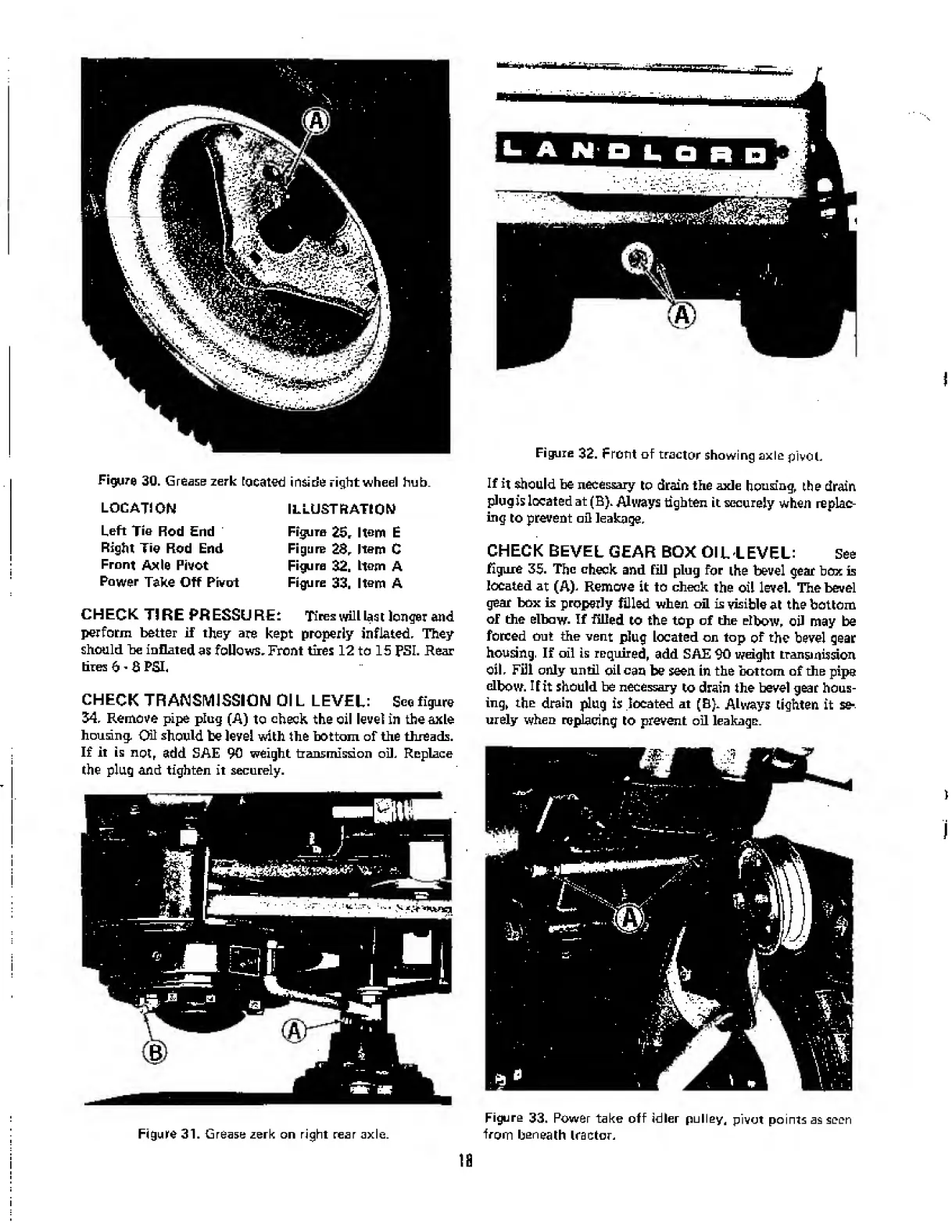

Figure 30. Grease zerk located inside right wheel hub.
LOCATION
Left Tie Rod End
Right Tie Rod End
Front Axle Pivot
Power Take Off Pivot
ILLUSTRATION
Figure 25 r Item E
Figure 28 r Item C
Figure 32. Item A
Figure 33. Item A
CHECK TIRE PRESSURE: Tires will last longer and
perform better if they are kept properly inflated. They
should be inflated as follows. Front tires 12 to 15 FSI. Rear
tires 6 ’ 8 PSL
CHECK TRANSMISSION 01L LEVEL: See figure
34. Remove pipe plug (A) to check the oil level in the axle
housing. Oil should be level with the bottom of the threads.
If it is not r add SAE 90 weight transmission oil. Replace
the plug and tighten it securely.
Figure 32. Front of tractor showing axle pivot.
If it should be necessary to drain the axle housing, the drain
plugis located at (B). Always tighten it securely when replac¬
ing to prevent oD leakage.
CHECK BEVEL GEAR BOX OIL LEVEL: See
figure 35- The check and fill plug for the bevel gear box is
located at (A). Remove it to check the oil level. The bevel
gear box is properly filled when oil is visible at the bottom
of the elbow. If filled to the top of the elbow, oil may be
forced out the vent plug Located on top of the bevel gear
housing. If oil is required, add SAE 90 weight transmission
oil. Fill only until oil can be seen in the bottom of the pipe
elbow. I fit should be necessary to drain the bevel gear hous¬
ing, the drain plug is located at [BJ. Always tighten it se-
urely when replacing to prevent oil leakage.
Figure 33. Power take off idler pulley, pivot points as seen
from beneath tractor.
i
i
j
18
I
Figure 31. Grease zerk on right rear axle_
