Normal Care

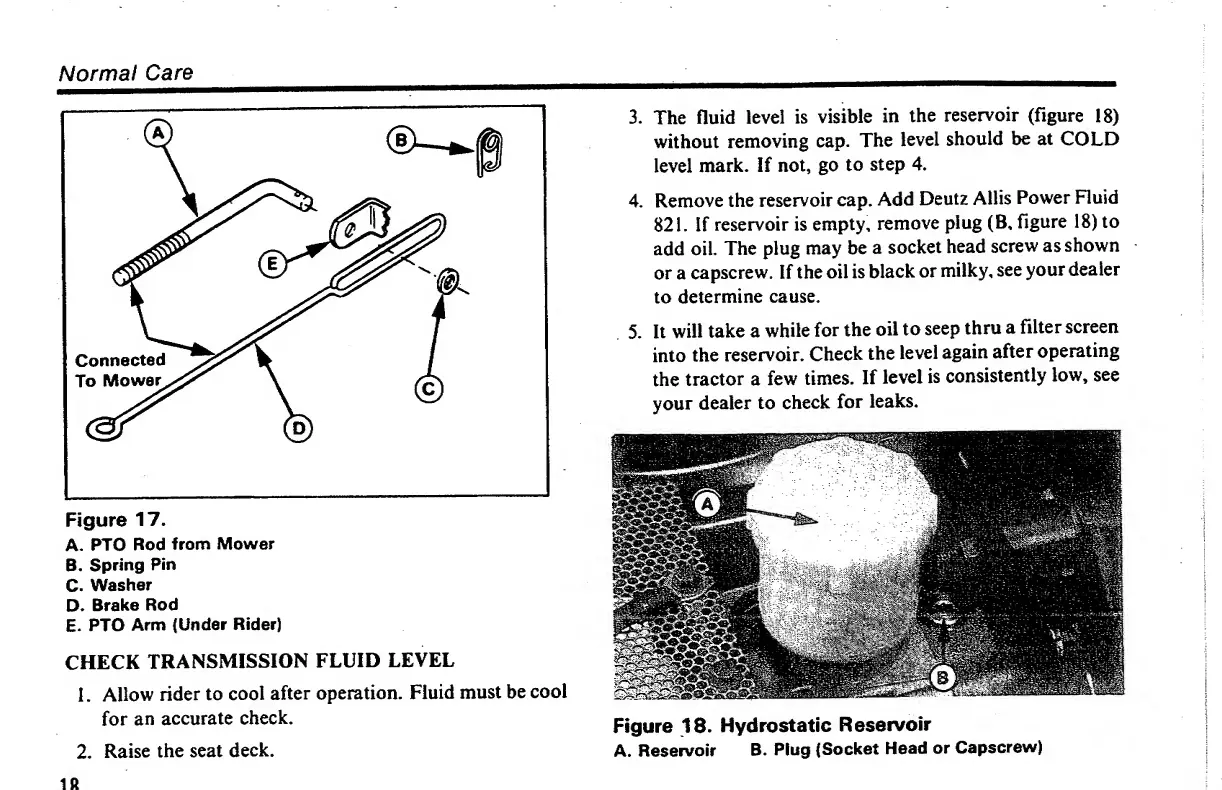

Figure 17.
A. PTO Rod from Mower
B. Spring Pin
C. Washer
D. Brake Rod
E. PTO Arm (Under Rider)
CHECK TRANSMISSION FLUID LEVEL
1. Allow rider to cool after operation. Fluid must be cool
for an accurate check.
2. Raise the seat deck.
3. The fluid level is visible in the reservoir (figure 18)
without removing cap. The level should be at COLD
level mark. If not, go to step 4.
4. Remove the reservoir cap. Add Deutz Allis Power Fluid
821. If reservoir is empty, remove plug (B, figure 18) to
add oil. The plug may be a socket head screw as shown
or a capscrew. If the oil is black or milky, see your dealer
to determine cause.
5. It will take a while for the oil to seep thru a filter screen
into the reservoir. Check the level again after operating
the tractor a few times. If level is consistently low, see
your dealer to check for leaks.
Figure 18. Hydrostatic Reservoir
A. Reservoir B. Plug (Socket Head or Capscrew)
