Adjustments

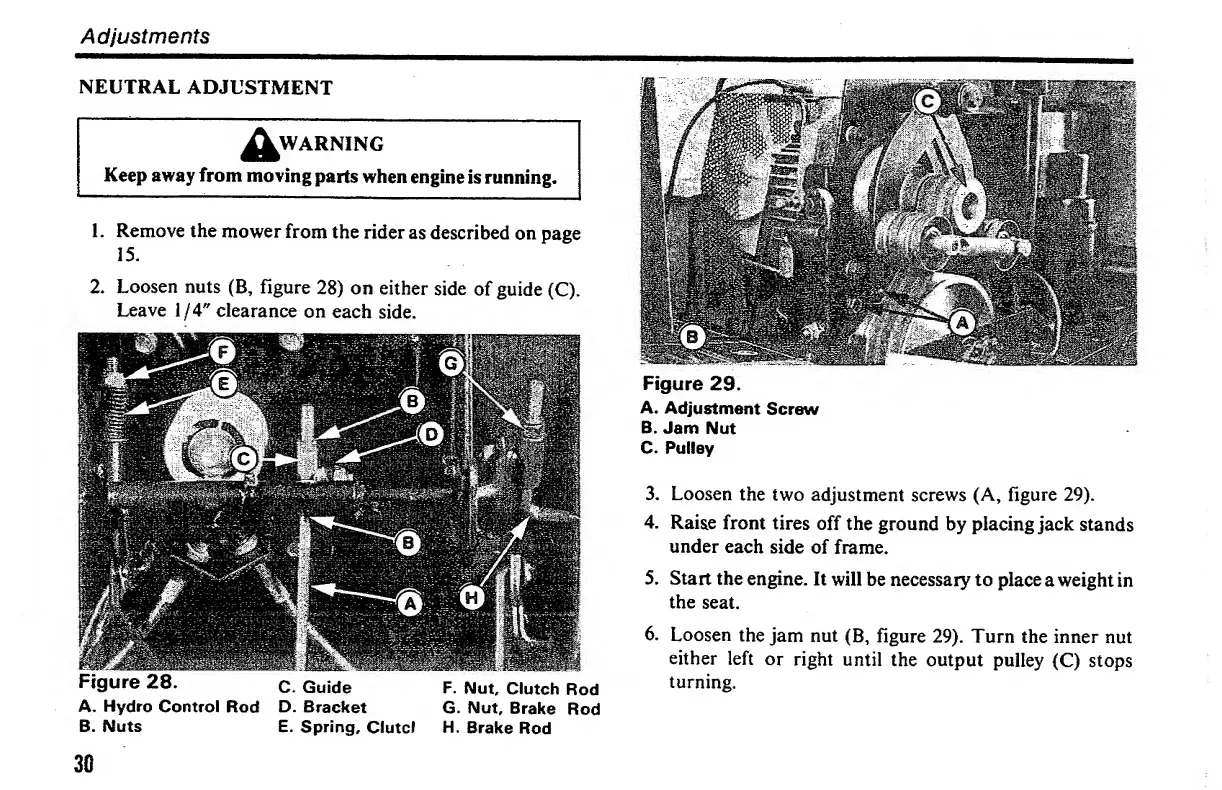

NEUTRAL ADJUSTMENT
Jjjj^WARNING
Keep away from moving parts when engine is running.
I. R emove the mower from the rider as described on page
15.
2. L oosen nuts (B, figure 28) on either side of guide (C).
Leave 1 /4" clearance on each side.
Figure 28. C. Guide F. Nut, Clutch Rod
A. Hydro Control Rod D. Bracket G. Nut, Brake Rod
B. Nuts E. Spring, Clutcf H. Brake Rod
Figure 29.
A. Adjustment Screw
B. Jam Nut
C. Pulley
3. Loosen the two adjustment screws (A, figure 29).
4. Raise front tires off the ground by placing jack stands
under each side of frame.
5. Start the engine. It will be necessary to place a weight in
the seat.
6. Loosen the jam nut (B, figure 29). Turn the inner nut
either left or right until the output pulley (C) stops
turning.
30
