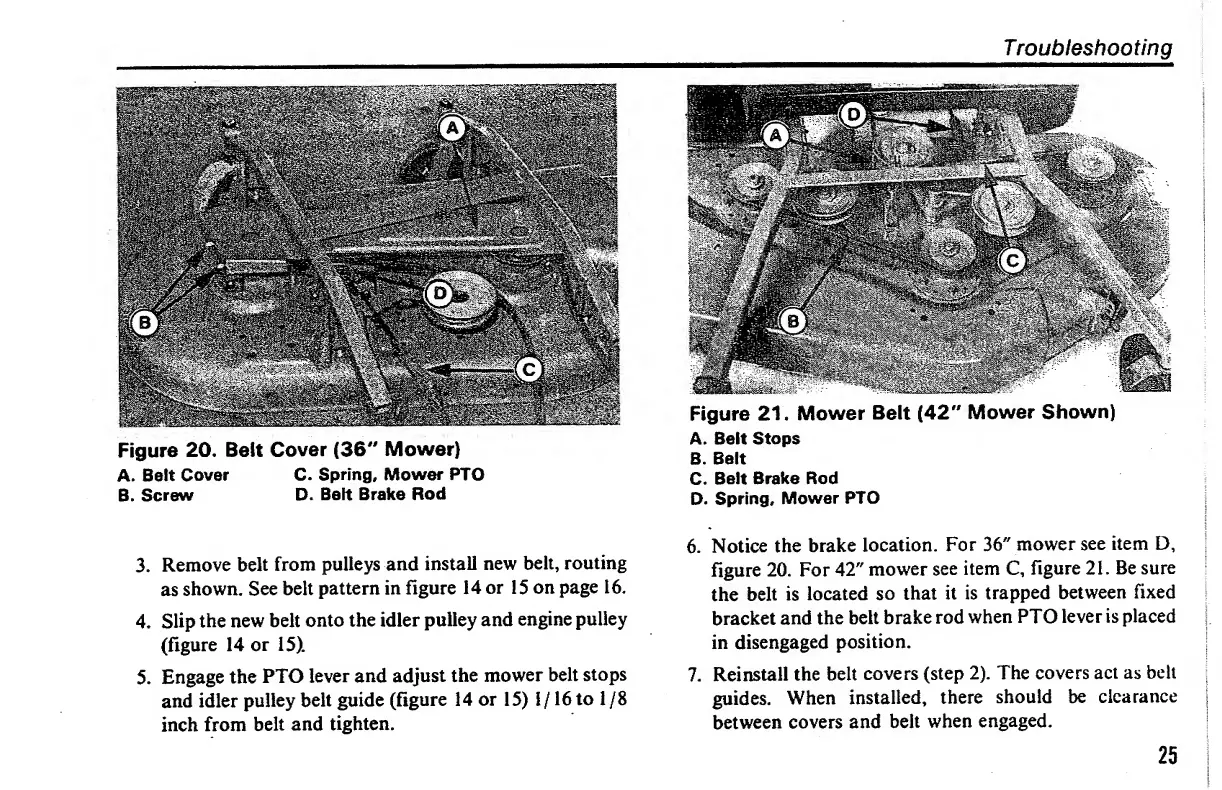

Figure 20. Belt Cover (36" Mower)
A. Beit Cover C. Spring, Mower PTO
B. Screw D. Belt Brake Rod
3. Remove belt from pulleys and install new belt, routing
as shown. See belt pattern in figure 14 or 15 on page 16.
4. Slip the new belt onto the idler pulley and engine pulley
(figure 14 or 15).
5. Engage the PTO lever and adjust the mower belt stops
and idler pulley belt guide (figure 14 or 15) 1/16 to 1/8
inch from belt and tighten.
Troubleshooting
Figure 21. Mower Belt (42" Mower Shown)
A. Belt Stops
B. Belt
C. Belt Brake Rod
D. Spring, Mower PTO
6. Notice the brake location. For 36" mower see item D,
figure 20. For 42" mower see item C, figure 21. Be sure
the belt is located so that it is trapped between fixed
bracket and the belt brake rod when PTO leveris placed
in disengaged position.
7. Reinstall the belt covers (step 2). The covers act as belt
guides. When installed, there should be clearance
between covers and belt when engaged.
