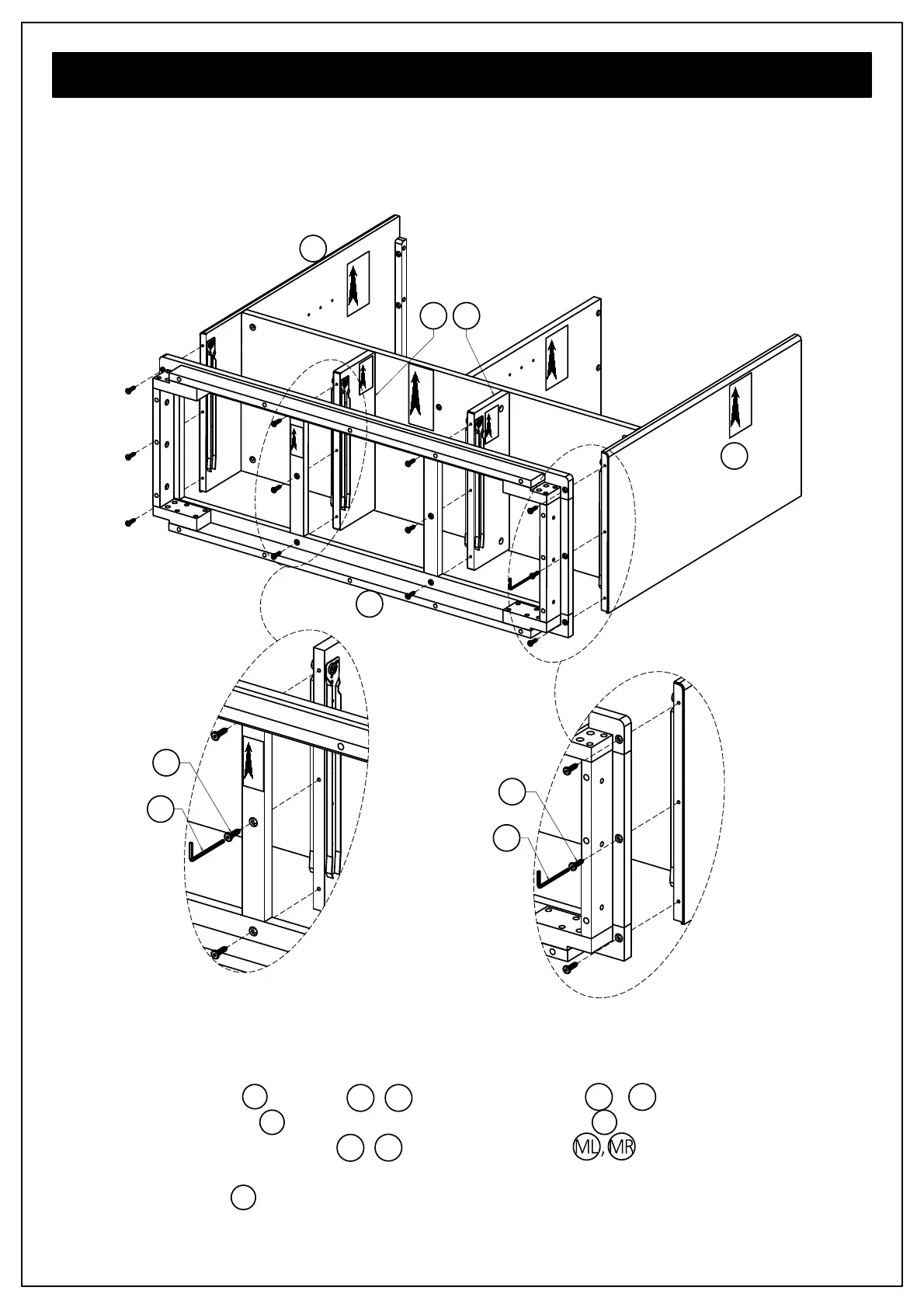

Step 7
1. Attach Bottom C to Sides AL , AR and Small Divides
ML , MR
using twelve
Allen Key Screws 1 through guide holes from Bottom C to pre-drilled holes
underneath of each Sides AL , AR and Small Dividers
ML , MR
(three Screws on each Side and Small Divider).
2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
C
1
3
1
3
A
L
A
R
M
L
M
R
Front / Avant
Front / Avant
Front / Avant
Front / Avant
Front / Avant
Front / Avant
Front /
Avant
Front / Avant
15
Model # AXCHRP-06-TKAssembly
