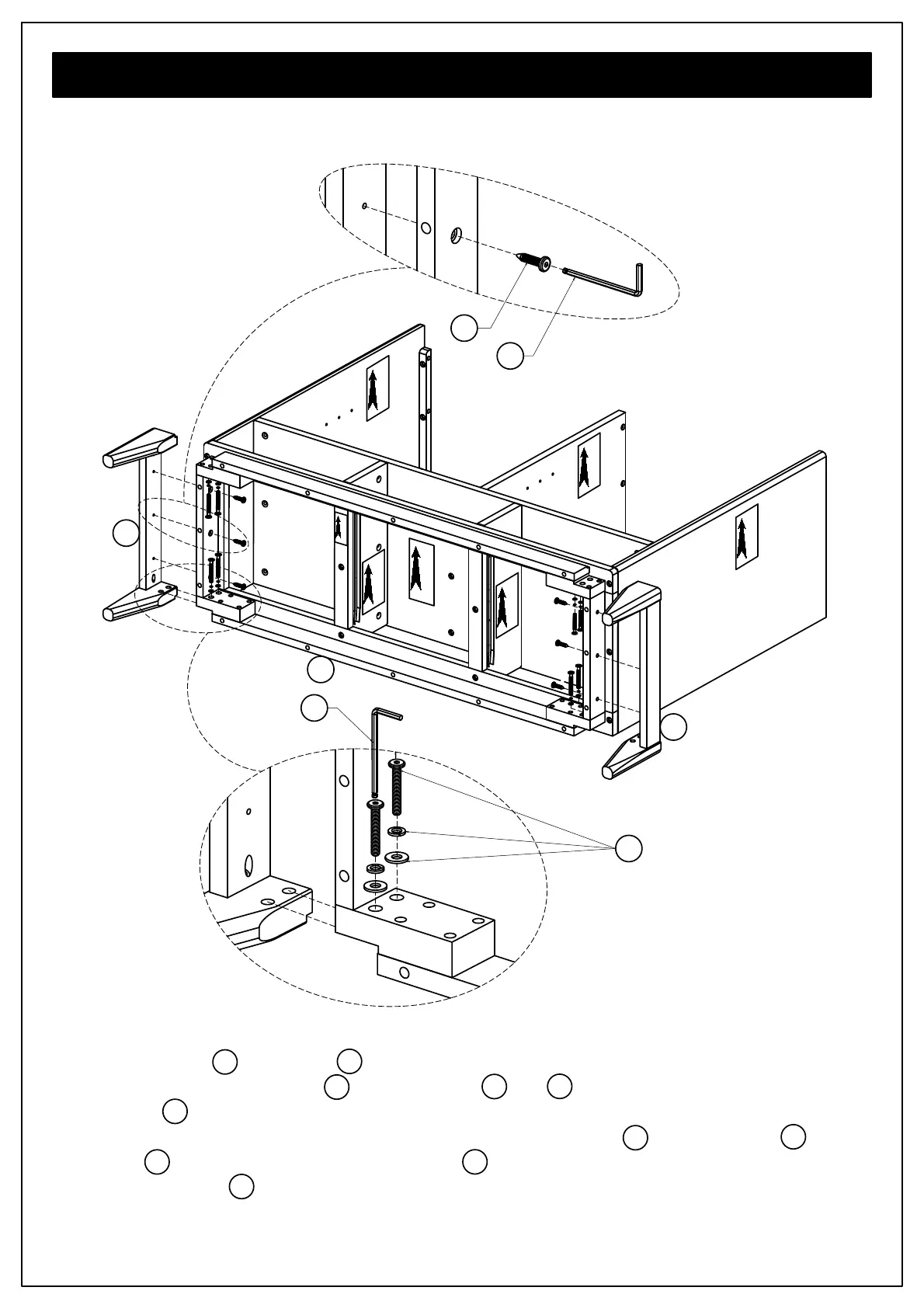

Step 8
1. Attach Legs G to Bottom C .
2. Use xis Allen Key Screws 1 to secure part C and G through guide holes from
frame C (three Screws on each Leg)
3. Use eight sets Allen Key Bolts, Lock Washers and Washers 2 to secure part C
and G through guide holes from frame C (four sets on each Leg).
4. Use Allen Key 3 to tighten Bolts and Screws. Do not over-tighten.
1
3
G
C
3
2
G
Front / Avant
Front / Avant
Front / Avant
Front /
Avant
Front / Avant
Front / Avant
Front / Avant
16
Model # AXCHRP-06-TKAssembly
