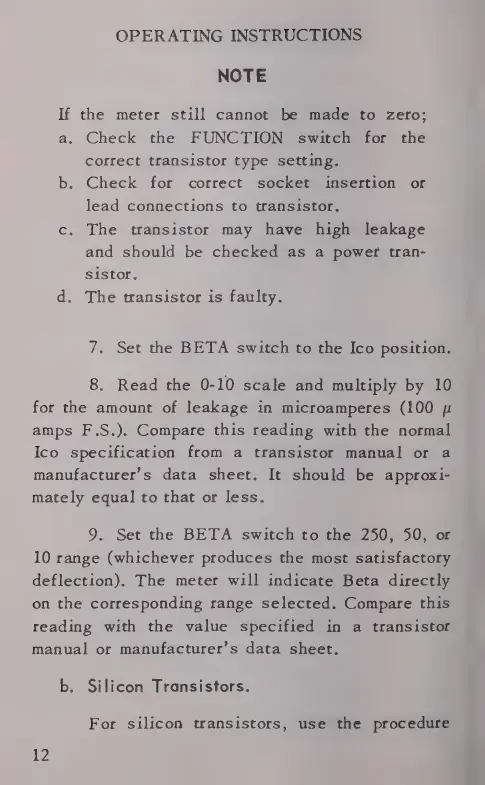

OPERATING
INSTRUCTIONS
NOTE
If
the
meter
still
cannot
be
made
to
zero;
a.
Check
the
FUNCTION
switch
for
the
correct
transistor
type
setting.
b.
Check
for
correct
socket
insertion
or
lead
connections
to
transistor.
c.
The
transistor
may
have
high
leakage
and
should
be
checked
as
a
power
tran-
sistor.
d.
The
transistor
15
faulty.
7.
Set
the
BETA
switch
to
the
Ico
position.
8.
Read
the
0-10
scale
and
multiply
by
10
for
the
amount
of
leakage
in
microamperes
(100
џ
amps
F.S.).
Compare
this
reading
with
the
normal
Ico
specification
from
a
transistor
manual
or
a
manufacturer's
data
sheet.
It
should
be
approxi-
mately
equal
to
that
or
less.
9.
Set
the
BETA
switch
to
the
250,
50,
or
10
range
(whichever
produces
the
most
satisfactory
deflection).
The
meter
will
indicate
Beta
directly
on
the
corresponding
range
selected.
Compare
this
reading
with
the
value
specified
in
a
transistor
manual
or
manufacturer's
data
sheet.
b.
Silicon
Transistors.
For
silicon
transistors,
use
the
procedure
12
