Simpson SSTP71007 - Connecting Suction Hose Strainer; Hose Placement

1
2
3
4

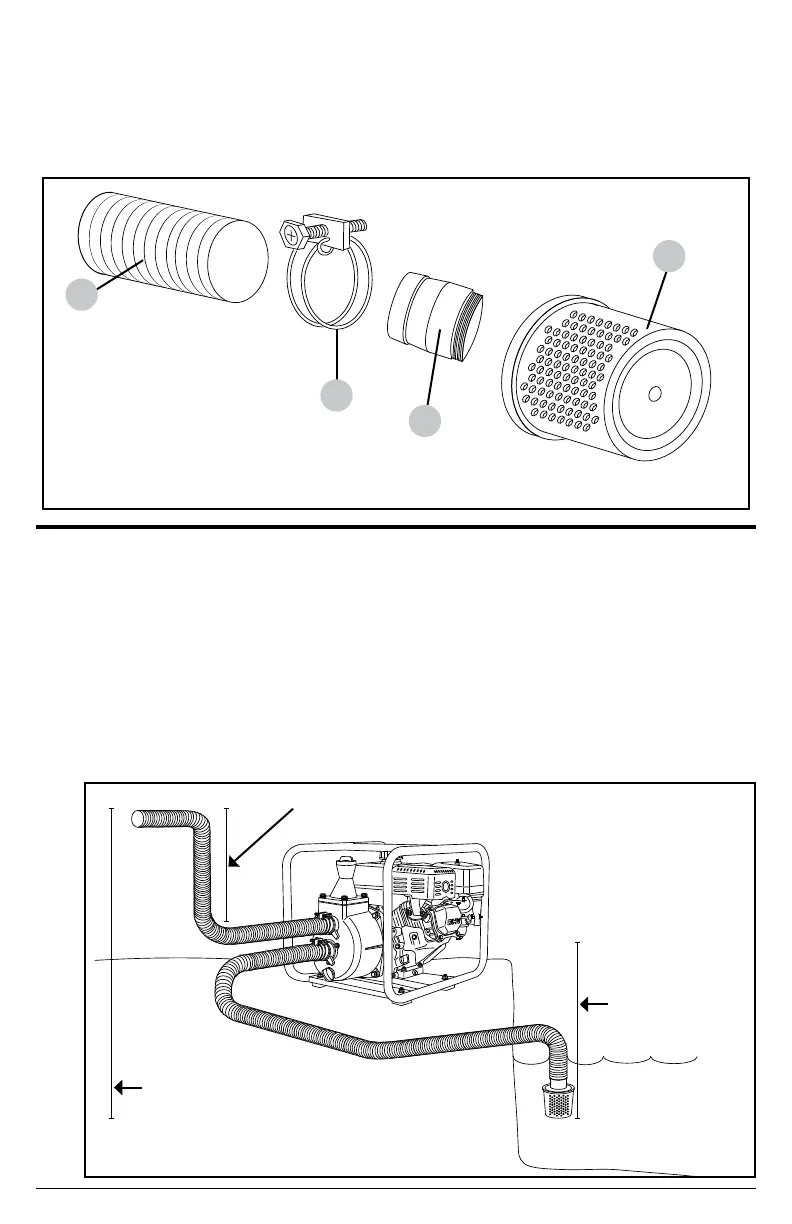

1. Suction hose (not included)
2. Strainer hose clamp
3. Strainer barb
4. Strainer
Suction head lift
Total head lift
Discharge head lift
Page 13
Connecting Suction Hose Strainer
1. Thread the strainer barb into the strainer.
2. Place the suction hose over the strainer barb and secure it with a strainer hose clamp.
Hose Placement
1. Place the pump on a level surface.
2. Completely immerse strainer but do not rest it on the bottom of the water source.
3. Do not exceed the maximum suction head and total head lifts as listed in the
SPECIFICATIONS section of this manual.
NOTE: The suction head lift should always be less than the discharge head lift.
