Data Interface to PC or Other
Navigation Systems
The figure below shows the power and data output
connections to the serial port of a PC or other navigation
systems using a dB9 connector and a terminal strip (user
supplied items).

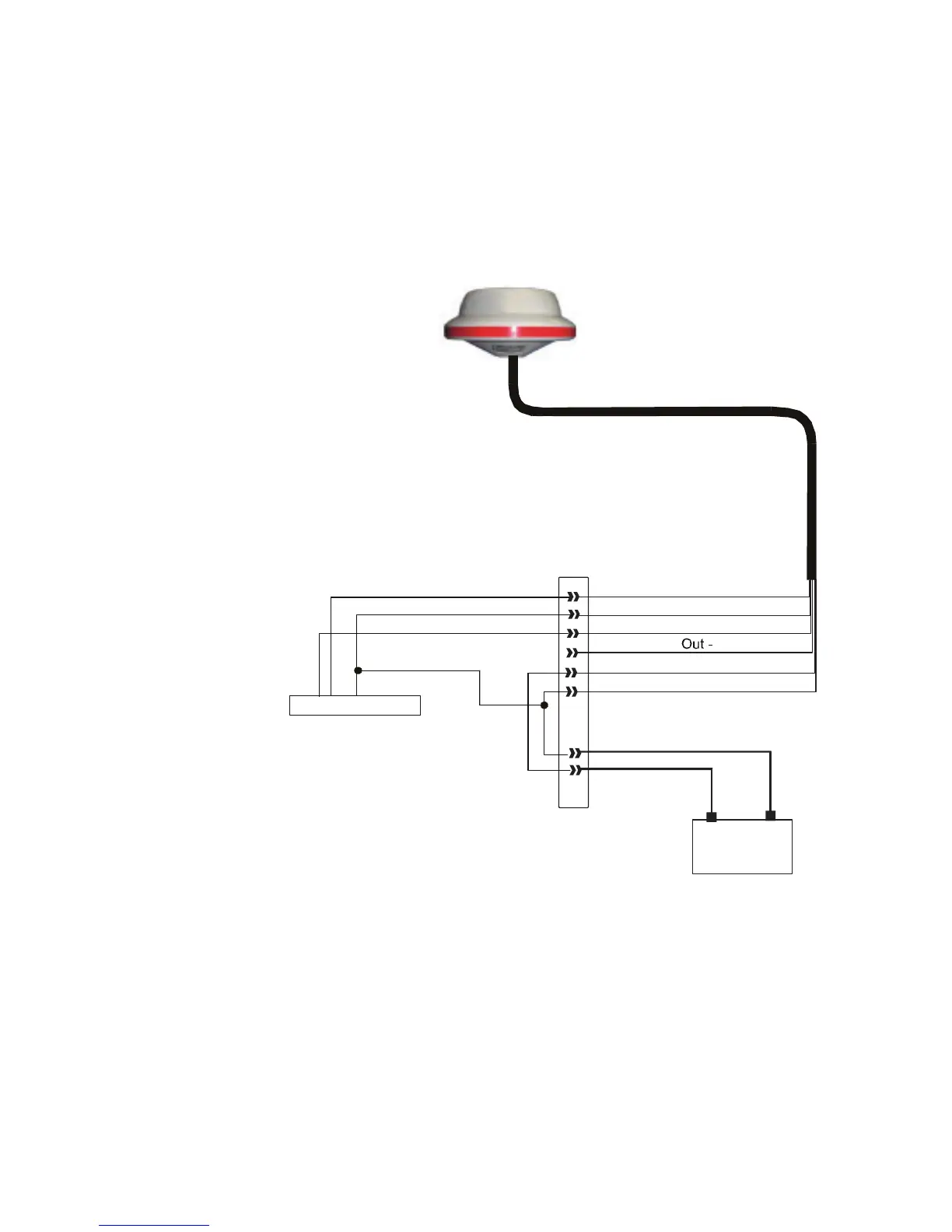

MX521 Interface to Other Navigation Systems
Red (+12 VDC)
BLk (GND)
Grn (GPS Out + )
Org (GPS
)
Brn (MPM In +)
Blu (MPM In -)
12~32 VDC
Supply
+
-
1 2 3 4 5 6 7 8 9
9dB PC Connector
