NSS evo3S | Quick Guide - EN
H MOB keys
•
Press simultaneously the Enter and Exit keys to create a MOB (Man Over Board) at
the vessel’s position.
I Arrow keys
•
Press to activate cursor or to move cursor.
• Press to navigate through menu items and to adjust a value.
J Mark key
•
Press to place waypoint at vessel position, or at cursor position when cursor is
active.
• Press and hold to open the Plot dialog from where you can add or manage
waypoints, routes and tracks.
K Power key
• Press and hold: turns the unit ON/OFF
• Short press once: displays the System Controls dialog.
• Repeat short presses: toggles through preset dimming levels.
L
Card reader door
M Dual card reader slots

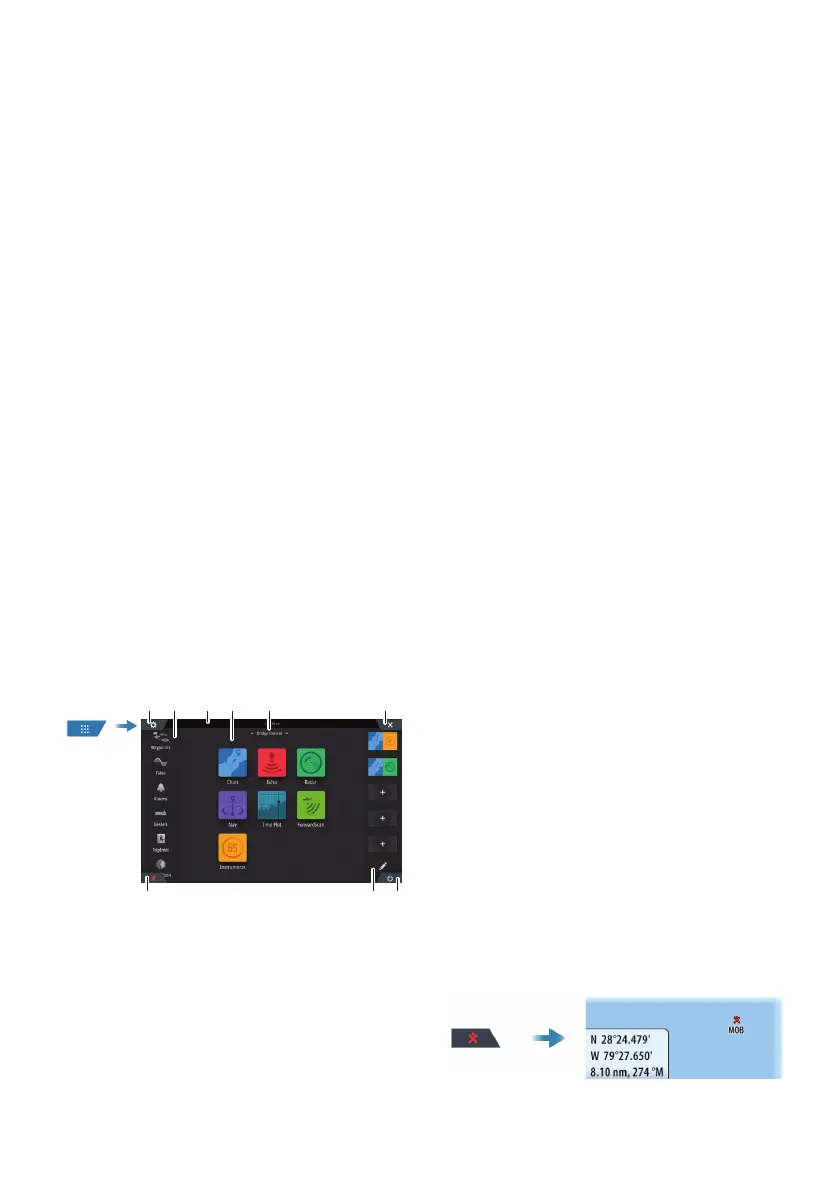

Home page
A Settings button
B Toolbar
C Status bar
D Application page buttons
E Bridge Control
F Close button, closes the current
panel
G System Controls button
H Favorites bar
I Man Over Board (MOB) button
The MOB mark
To create a MOB mark:
• Press the MOB button.
• Simultaneously press the Enter and Exit keys.
To stop displaying navigational information to the MOB waypoint: cancel the navigation
from the menu.
G
A
H
C
D E
B F
I

Simrad NSS evo3S Specifications

General

Connectivity	Wi-Fi, Bluetooth, NMEA 2000, Ethernet
Internal Memory	16 GB
External Memory	microSD card slot
Waterproof Rating	IPX6
Resolution	1280 x 720
Sonar	DownScan, SideScan
GPS	Built-in GPS/GLONASS
Processor	iMX8
Operating Voltage	10-32 V DC
Ethernet Ports	2
Radar Compatibility	Halo
Operating Temperature	-15°C to +55°C
Storage Temperature	-20°C to +60°C
Dimensions	Varies by model
Weight	Varies by model
Display Size	9, 12, or 16 inches
