SUREFIRE ELECTRONIC IGNITION SYSTEM
S.I.T. PROFLAME 1 TROUBLESHOOTING
SimTech Proflame I

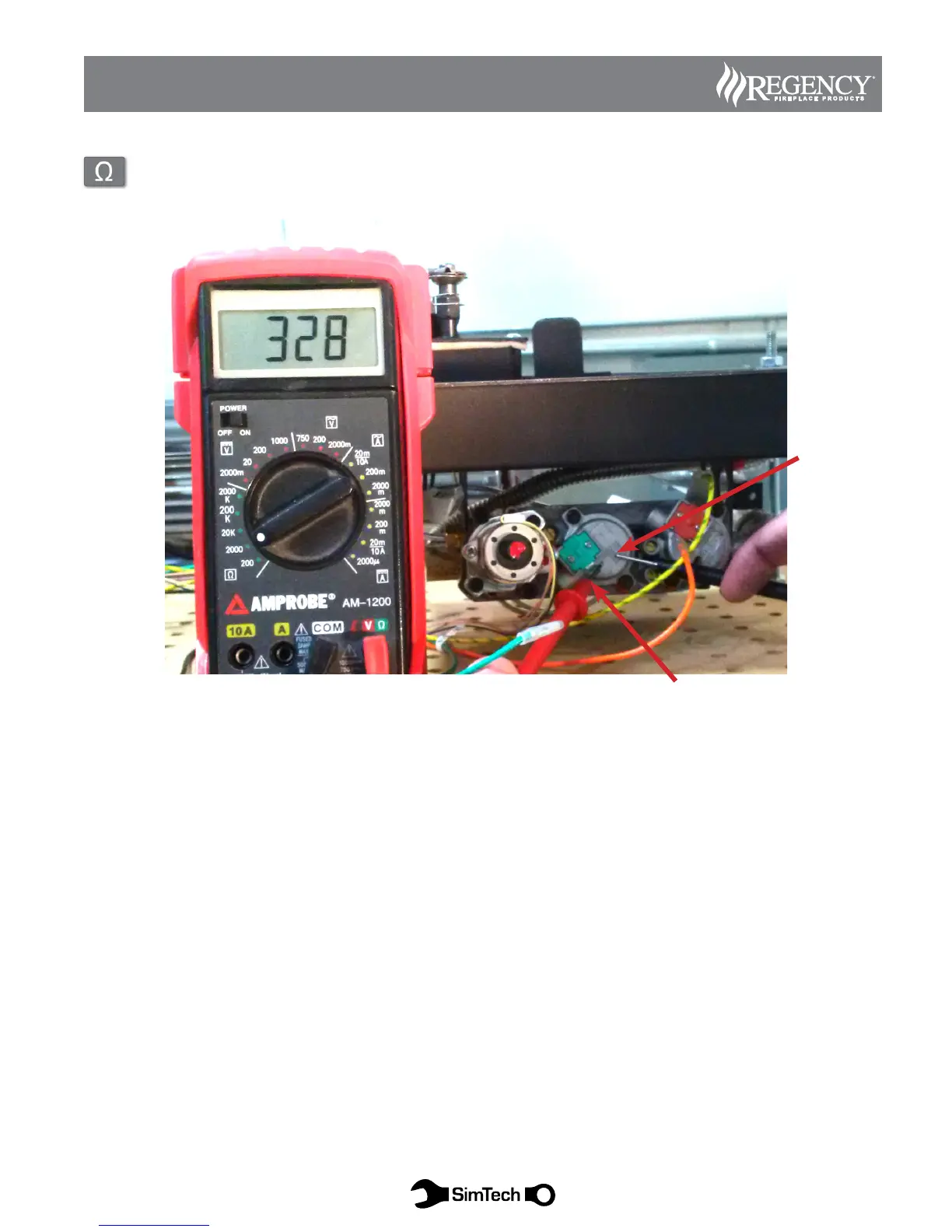

Diagram 14 CONTINUITY TEST (Ohms)
Check continuity/resistance of the EV2 main burner coil. Disconnect the green wire from EV2. It should read
approximately 340 ohms (+/- 20 ohms). If there is no continuity or high/low resistance replace the valve..
EV2 Green tab-
wire disconnected
Valve Body
