MAXITROL GV60 IGNITION SYSTEM
TROUBLESHOOTING
Maxitrol GV60
Diagram 13
Diagram 13a

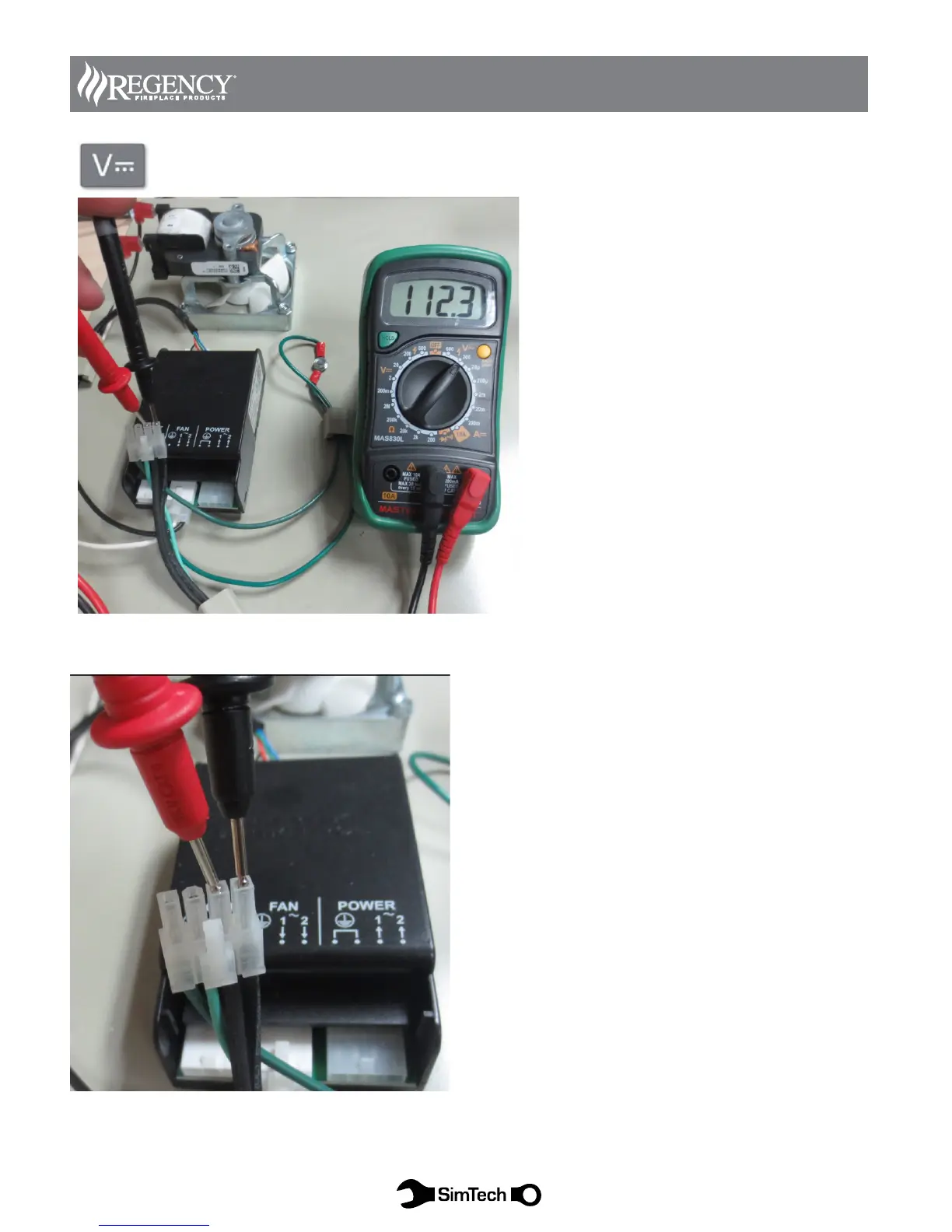

-To test for power coming in to the Fan control module, remove the 4 wire Molex from the fan
control module. Set meter to AC voltage, in a range of 200VAC and place one probe in the end
of each black wire. Reading should be approximately 120VAC. If no power confirm outlet is live.
