Sinclair ASC-18AIA - Schematic Diagram of Unit Line Connection

DC Inverter Cassette Type Air Conditioner Installation and Operation Manual
60

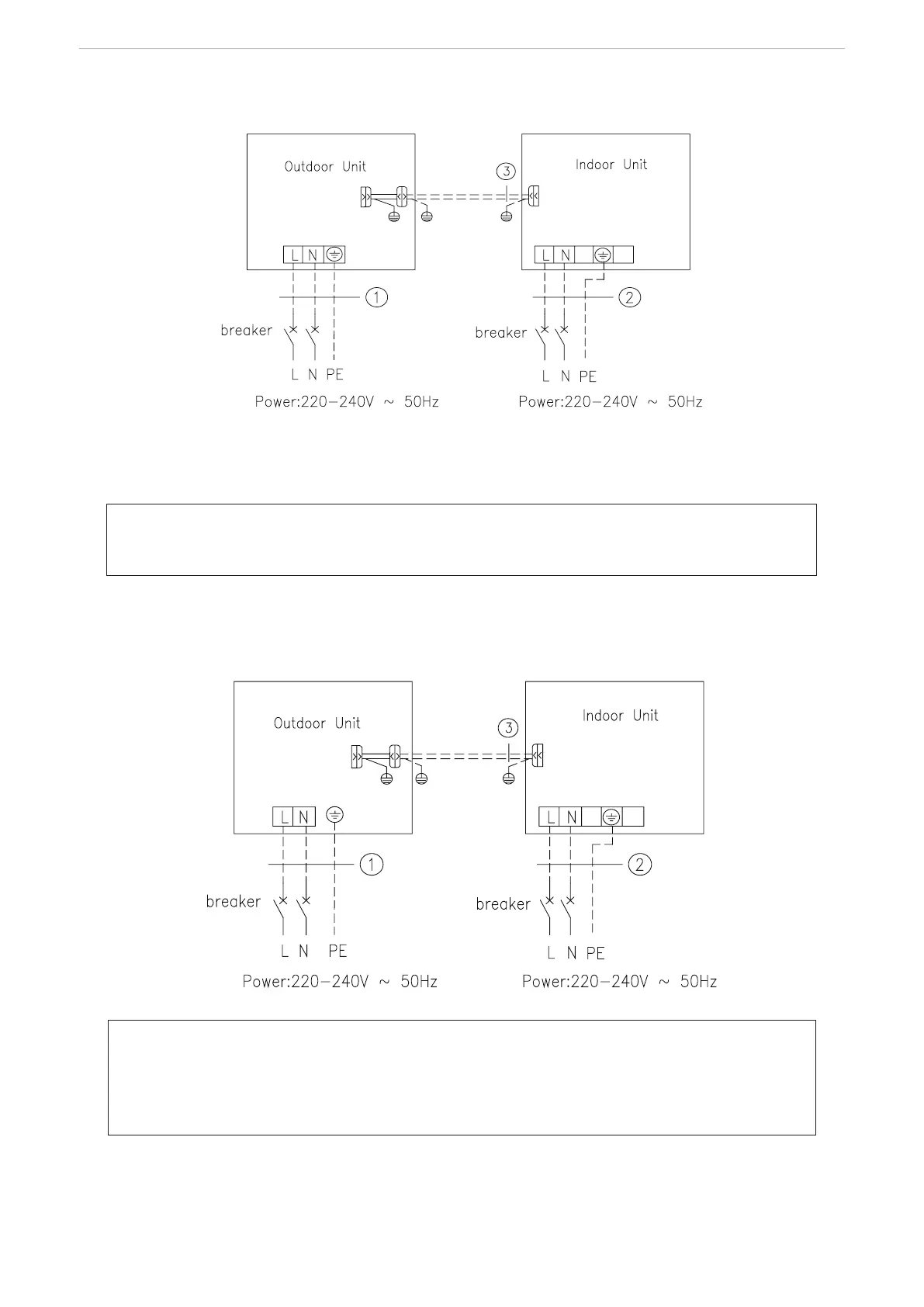

8.7 Schematic Diagram of Unit Line Connection
ASGE-36AIA WK+ASC-36AIA
1.Power cord 3×4.0 mm
2
(H07RN-F) 2.Power cord 3×1.0 mm
2
(H05VV-F)
3.Communication Cords
ASGE-18AIA WK+ASC-18AIA
ASGE-24AIA WK+ASC-24AIA
1.Power cord 3×4.0 mm
2
(H07RN-F) 2.Power cord 3×1.0 mm
2
(H05VV-F)
3.Communication Cords
