Sinclair ASH-12AIE2 Service Manual

64
Installation and Maintenance
Service Manual

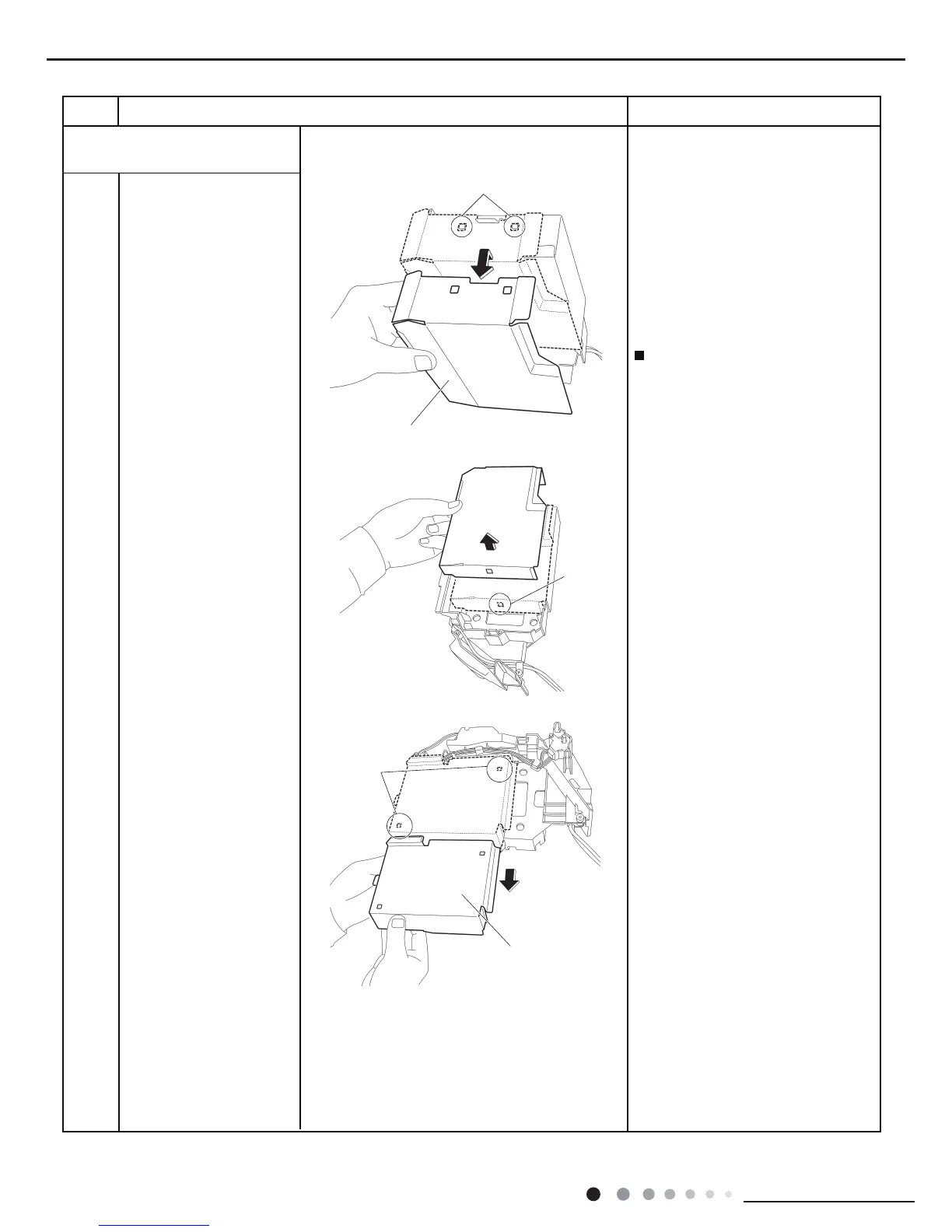

Remove the electrical box according
to the “Removal of Electrical Box”.
a
Unfasten the hooks at
the upper 2 positions of
the shield plate.
b
Unfasten the hook at
the lower position, and
remove the shield plate
(1).
c
Lift the shield plate (2)
and unfasten the 2
hooks.
d
Slide the shield plate
(2) and remove it.
Hooks
shield plate (1)
Hook
Hooks
Shield plate (2)
8. Remove the shield plate and
control PCB
Steps PointsProcedure
