Installation and Maintenance
Service Manual

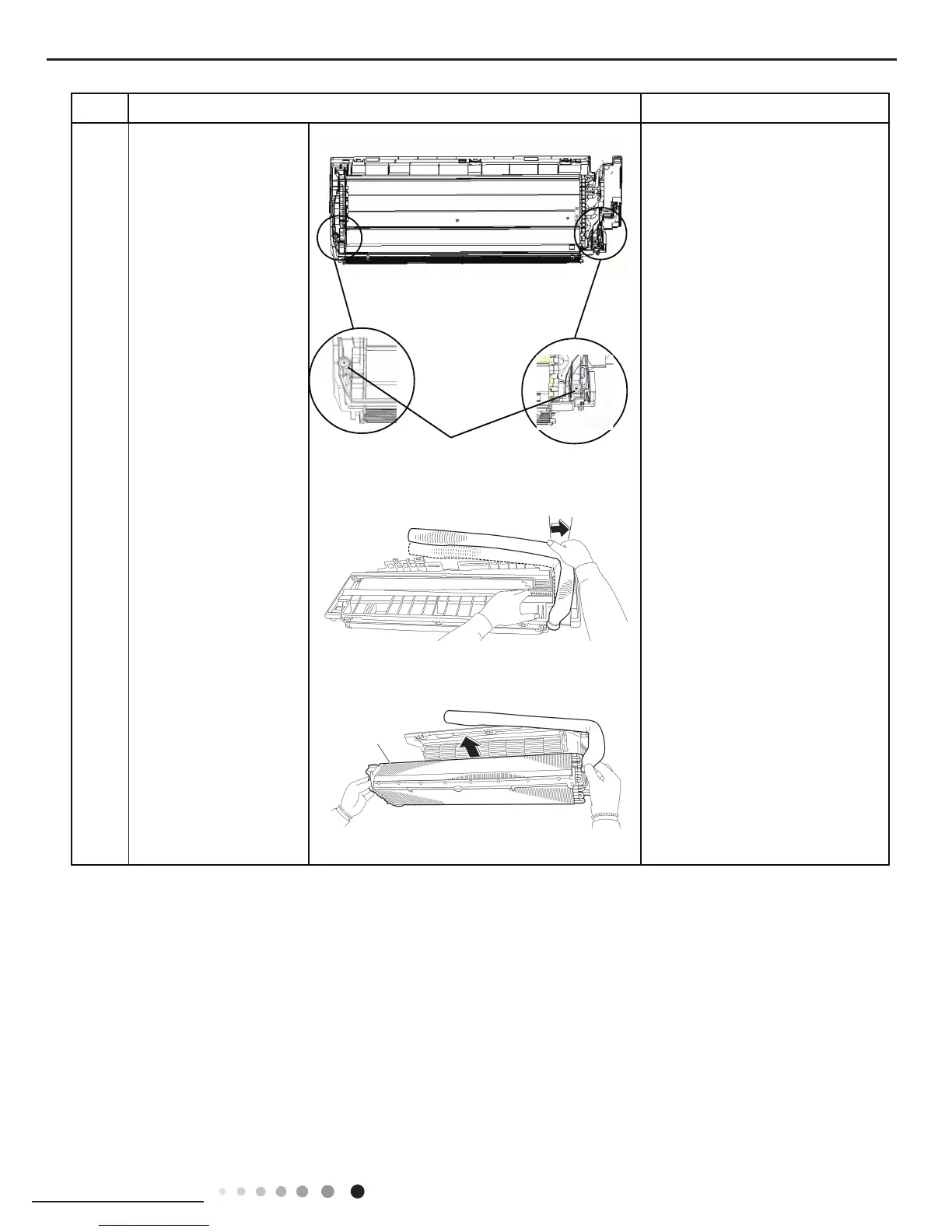

Loosen the 2 screws,
in the right and the left,
which fix the evaporator
assy.
c
d
Widen the auxiliary
piping to the extent of
10°~20°.
e
Pull the evaporator assy
to the front side to undo
the hooks completely,
and then lift it.
Auxiliary piping
evaporator
Steps Procedure Points
Screws
