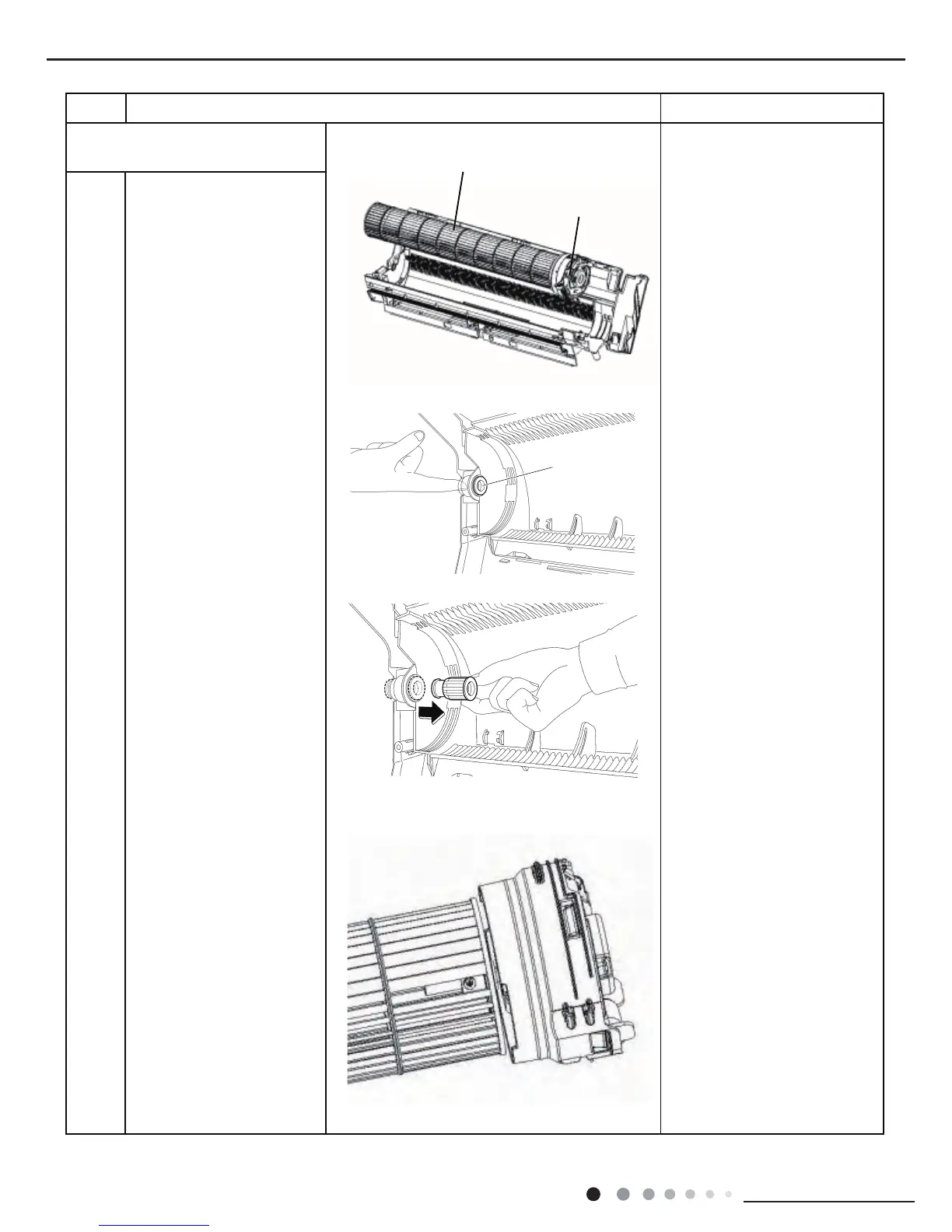

11. Remove cross flow fan and fan
Remove the rubber cushion
of the bearing.
motor
Bearing
Remove cross flow fan and
fan motor.
a
b
c
Remove the screws at the
joint of the cross flow
blade and the motor.
Steps PointsProcedure
Cross flow fan
Fan motor
