17.Troubleshooting

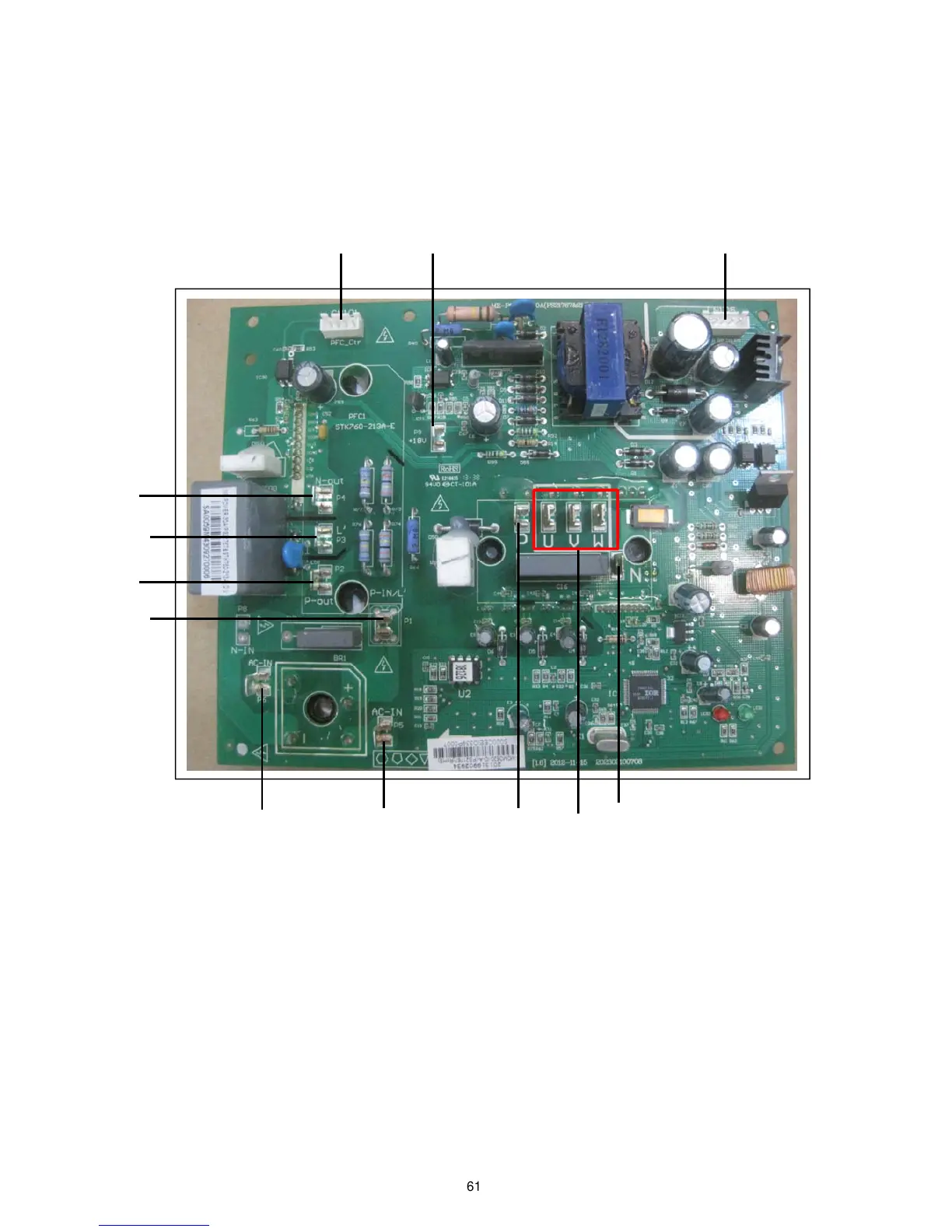

17.1 PCB parts instructions
SCV-50EA, SCV-70EA
PFC&IPM panel




























7 9
12
11
6
4
3
5
12
10
8
1. Input rectifier bridge port 1
2. Input rectifier bridge port 2
3. PFC inductance port 1
4. P-OUT
5. PFC inductance por 2
6. N-OUT
7. PFC control port
8. +18V port
9. IPDU communication port
10. IPM power port N
11. Compressor connection port U/V/W
12. IPM power port P
