8
Fig.4-11

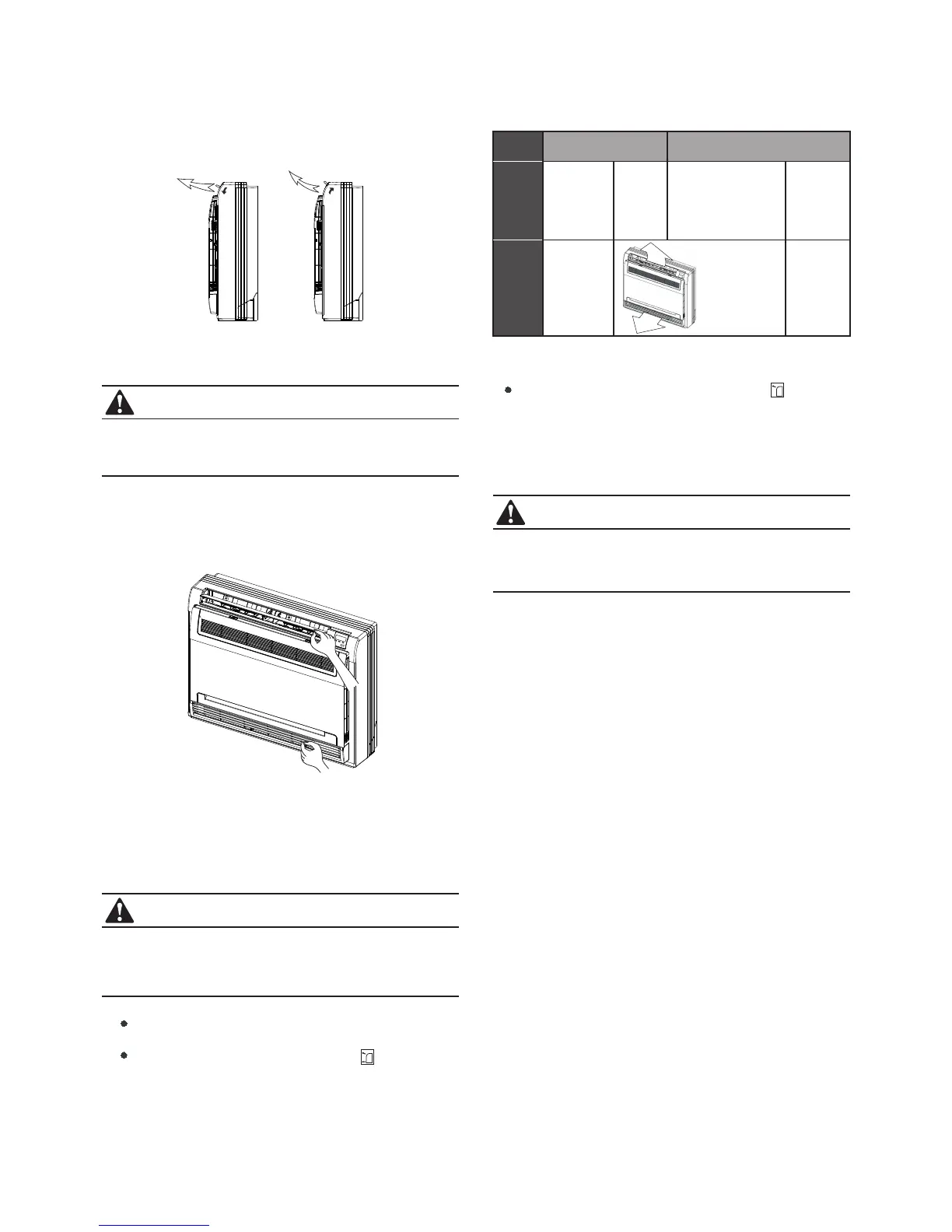

● When heating
Adjust the louver downward (vertically). (Refer to Fig.4-14)
●
When cooling
Adjust the louver horizontally. (Refer to Fig.4-13)
Fig.4-13
Fig.4-14
Do not try to adjust the louver by hand, as doing so may
cause a malfunction.
CAUTION
■
Adjust the air direction left and right
Fig.4-15
Before opening the front panel, cut off power supply and
turn the breaker to OFF.
Do not touch the metal parts inside the indoor unit to avoid
injury.
Open the front panel.
(How to open the front panel: refer to Fig.5-6).
CAUTION
■ Air flow selection
Table 4-1
Select the air flow as desired.
When setting the air flow selection switch to ,
the air conditioner automatically decides the appropriate
blowing pattern depending on the operating mode/
scenario.
In all modes, air is expelled from the upper air outlet.
Use this switch if you do not want air coming out of the
lower air outlet (when sleeping).
Operating
mode
Situation
Blowing
pattern
cooling mode heating mode
When the room
is cool or after
running the air
conditioner for
one hour.
Air is blown via
the upper air
outlet to equalize
the room
temperature, so
the air doesn’t
directly blow
onto people.
At the start
of the
operation
or at other
times when
the room is
not fully cooled.
At times other than those
below. (Normal time.)
Air is blown from the
upper and lower air
outlets for
high-speed cooling
in cooling mode and
for warming the air
in heating mode.
At the start or
when air
temperature is
low.
Air is blown via
the upper air
outlet, so it
doesn’t directly
blow onto
people.
When setting the air outlet selection switch to .
To switch between Auto and Manual mode on the lower air
outlet, turn off the unit and restart it to reset the modes.
CAUTION
To change the air direction to the left or right, adjust the left and
right louvers to appropriate positions.
To Next Page
