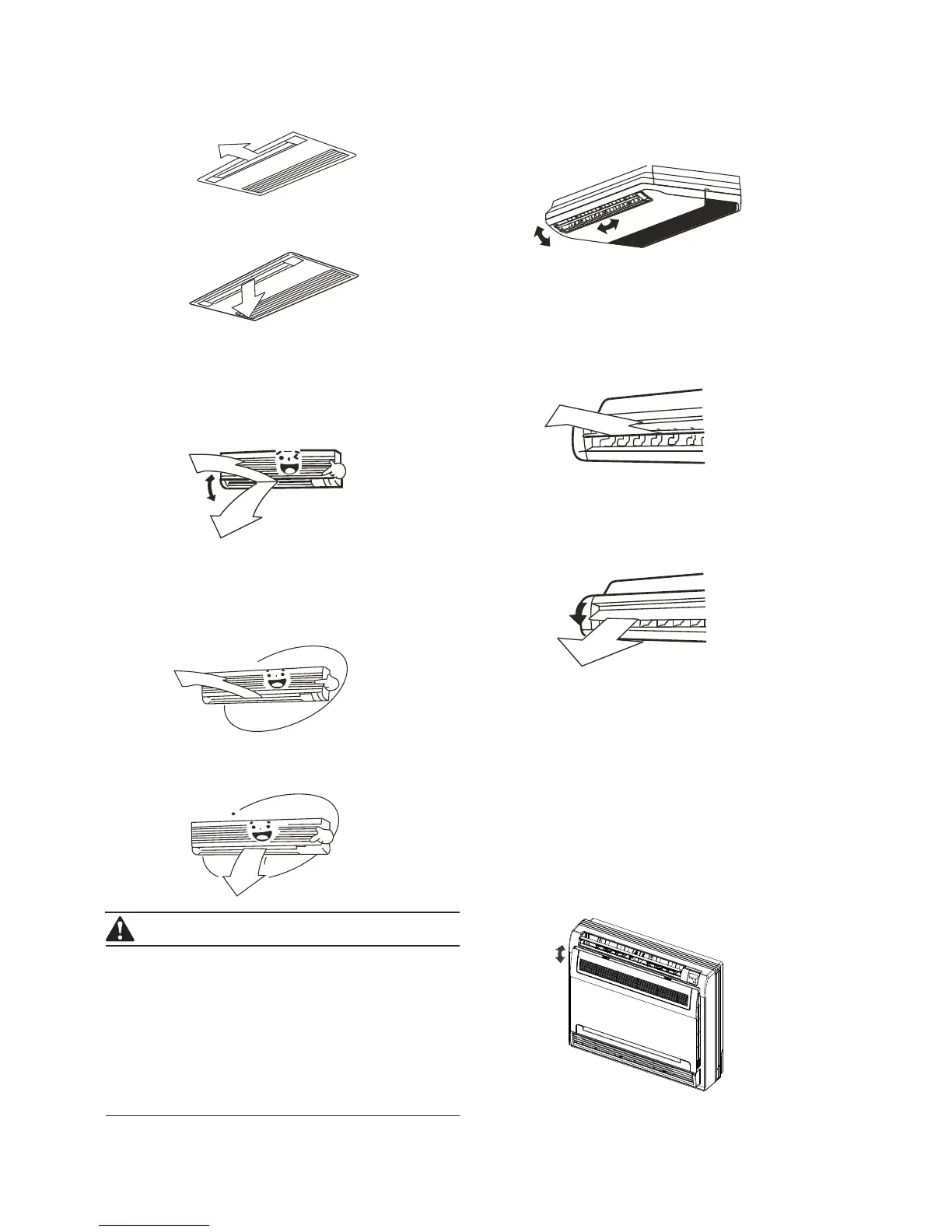

7
When heating
When cooling
adjust the louver horizontally
adjust the louver downward
When heating
Auto-swing
Adjust the louver downward (vertically).
Manual swing
Press SWING and the louver will swing up and down
automatically.
Adjust the louver to improve the cooling or heating effect.
When cooling
Adjust the louver horizontally.
CAUTION
Ceiling-floor type
Auto-swing
Press SWING and the louver will swing up and down (left
and right) automatically.
Manual swing
Adjust the louver to improve the cooling or heating effect.
When cooling
Adjust the louver horizontally.
When heating
Adjust the louver downward (vertically).
Fig.4-4
Fig.4-5
Fig.4-6
Fig.4-7
Fig.4-8
Fig.4-9
Fig.4-10
Fig.4-11
Wall-Mounted type
Console type
Auto-swing
Press SWING and the louver will swing up and down
automatically.
Manual swing
Press Air Direction to fix the louver at the desired angle.
The louver swing will move up or down with each press.
Fig.4-12
Adjust the air direction up and down
Water may drip from the unit if the direction of outlet air is
adjusted downward during cooling operation.
The uneven distribution of indoor temperature will be aggra-
vated if the direction of outlet air is horizontal during heating
operation.
Do not move the horizontal louver with your hand,as doing
so may cause a malfunction. The position of the horizontal
louver should be adjusted by the SWING button on the wired
controller.
Adjust the air direction up and down
