4
installation manual
4. INSPECTING AND HANDLING THE UNIT
At delivery, the package should be checked and any damage should
be reported immediately to the carrier claims agent.
When handling the unit, take into account the following:
5. INDOOR UNIT INSTALLATION
5.1 Installation place
Fr agile, handle the unit with care.
Choose on before hand the path along which the unit is to be
brought in.
Move this unit as originally package as possible.
When lifting the unit , always use protectors to prevent belt
damage and pay attention to the position of the unit’s centre
of gravity.
1
2
3
4
Indoor Unit
A place where is no obstacle near the inlet and outlet area.
A place which can bearf the indoor unit.
A place which is convenient to maintenance.
A place which provides the space around the indoor unit as
required right in the diagram.
There is strong electromagnetic wave exist-ing.
A place which is far from heat, steam and inflammable gas.
Installation in the following places may cause trouble.If it
is unavoidable, please consult with the local dealer.
A place full of machine oil.
A saline place such as coast.
A place full of sulfide gas such as hot-spring resort.
Places where there are high frequency machines such
as wireless equipment, welding
Machine, and medical facility.
A place there is no combustive gases and volatile matter.
A place of special environmental conditions.

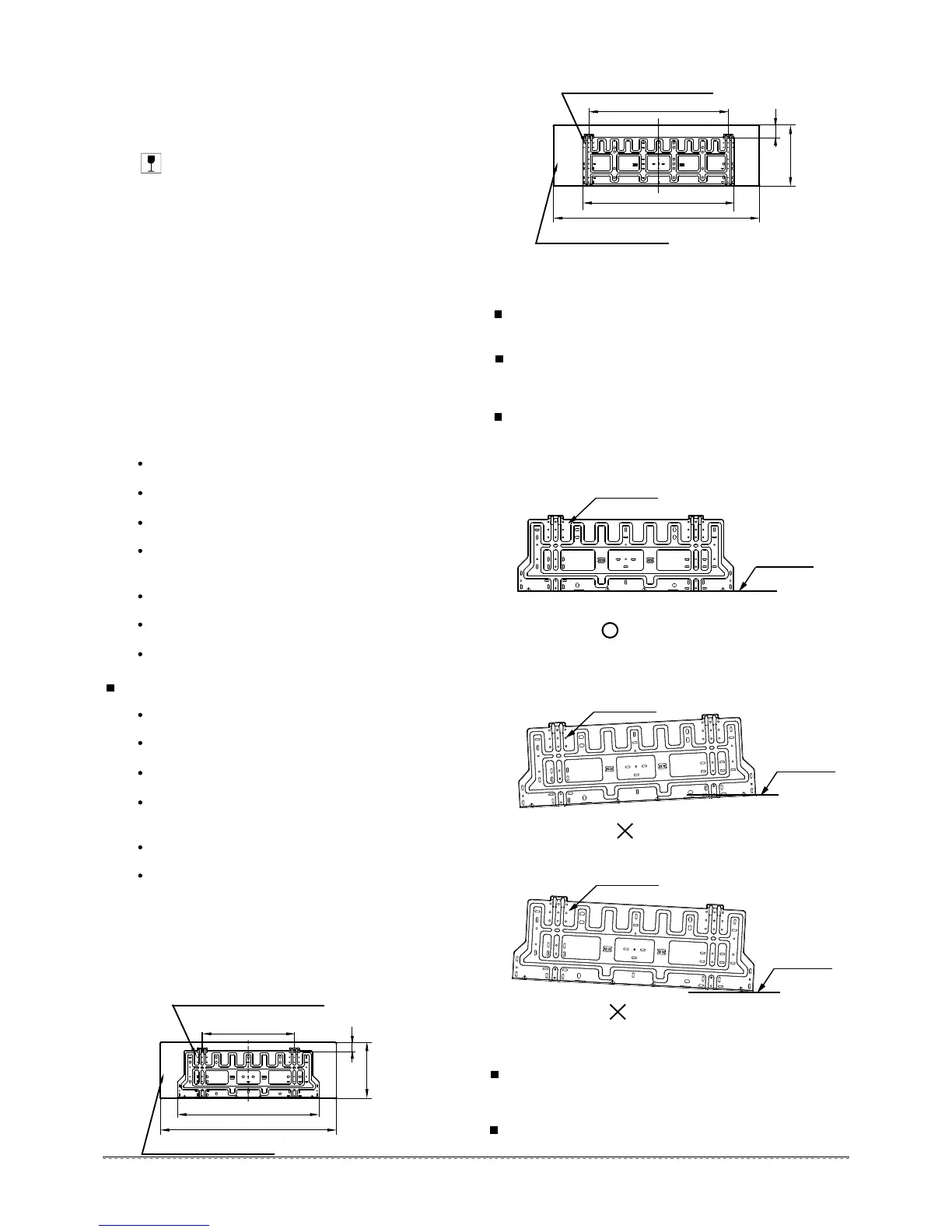

Installation Board and Its Direction (unit: mm)
5.2 Drilling A Hole and Mounting Installation
Board
250\300\400 type
500\600 type
1 Fix the installation board .
Install the installation board horizontally on structural parts in
the wall with the spaces provided around the plate.
In case of brick, concrete or similar type walls,make 5mmdia,
holes in the wall. Insert clip anchors for appropriate mounting
screws.
Fix the installation board on the wall.
Fig.5-2
Fig.5-1
Right installation
Fig.5-3
2 Drilling a hole.
Determine the pipe hole position using the installation
board
, and drill the pipehole ( N 95mm) so it slants slightly
downward.
Always use a wall hole conduit when piercing metal lath,
ply wood or metal plate.
False installation
Fig.5-5
Fig.5-4
462
57
290
915
712
mounting board of indoor unit
the shape of indoor unit
315
1070
794
730
65
mounting board of indoor unit
the shape of indoor unit
mounting
board
of indoor unit
horizontal line
mounting
board
of indoor unit
horizontal line
mounting
board
of indoor unit
horizontal line
