Singer 1022 - Page 49

CARING FOR YOUR MACHINE (Continued)
Locks
Unlocks
This machine
is designed to
use a 15 watt
maximum light
bulb
Th/s machine is designed to use a 15
watt maximum light bulb.

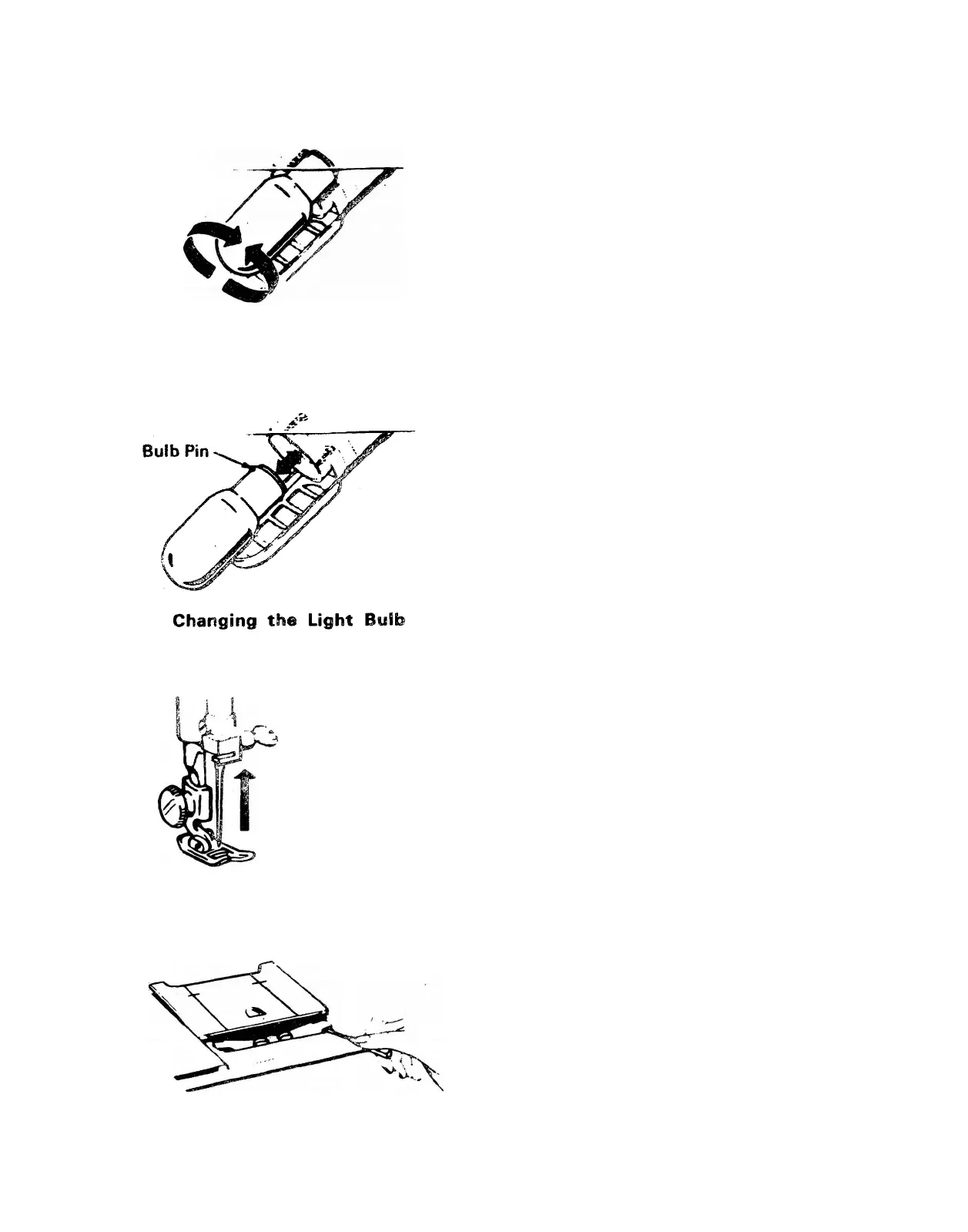

CHANGING THE LIGHT BULB
Disconnect power-line plug from elec
trical supply.
Removing the Bulb
With thumb and forefinger lower the light
bracket. Do not attempt to unscrew bulb.
Press it up into socket and at same time
turn bulb over in direction shown to
unlock bulb pin.
Replacing the Bulb
Press new bulb into socket with bulb pin
entering slot of socket, and turn it over in
direction shown to lock bulb in position.
Release bracket, and entire assembly will
snap back Into recess.
Raise Presser Foot
and Needle
Lift Retaining
Spring into Slide
Plate Grooves
Replacing the Slide Plate
46
REPLACING THE SLIDE PLATE
You will not have any occasion to remove
the slide plate. However, if it should
accidentally become disengaged from
the machine, it is easily replaced.
• Raise presser foot and needle.
• Place slide plate In slideway with the
front edge close to, but not covering,
the retaining spring (as shown in illu
stration).
• With a screwdriver, lift each end of the
spring into each of the side grooves on
the underside of the slide plate.
« Draw the plate gently toward you and
fully engage the spring.
• Close slide plate.
