THREAD
Use left twist thread for the needle. Either left or right twist thread
may be used for the bobbin.

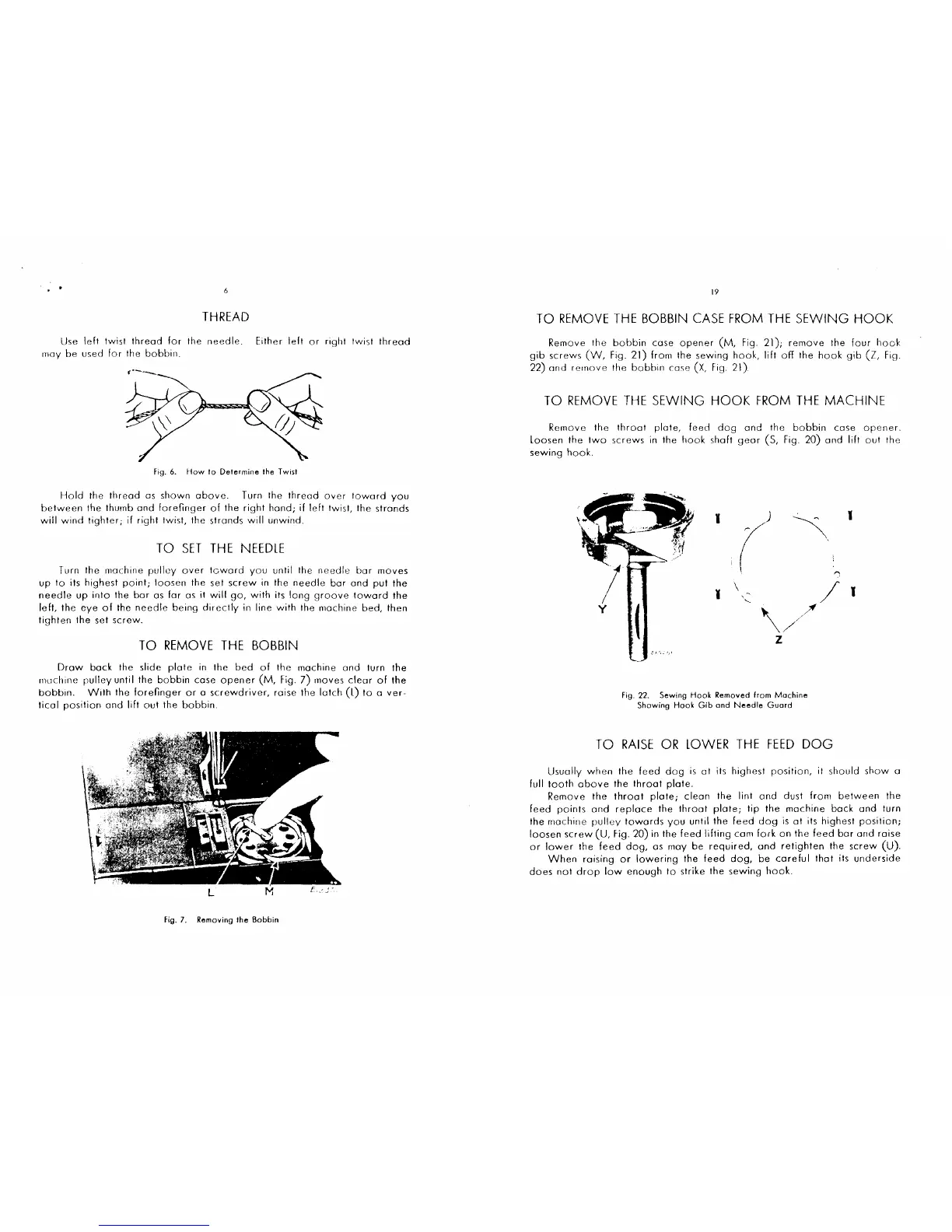

Fig. 6. How to Determine the Twist
Hold the thread as shown above. Turn the thread over toward you
between the thumb and forefinger of the right hand; if left twist, the strands
will wind tighter; if right twist, the strands will unwind.
TO SET THE NEEDLE
Turn the machine pulley over toward you until the needle bar moves
up to its highest point; loosen the set screw in the needle bar and put the
needle up into the bar as far as it will go, with its long groove toward the
left, the eye of the needle being directly in line with the machine bed, then
tighten the set screw.
TO REMOVE THE BOBBIN
Draw back the slide plate in the bed of the machine and turn the
rnuchine pulley until the bobbin case opener (M, Fig. 7) moves clear of the
bobbin. Wrth the forefinger or a screwdriver, raise the latch (l) to a ver-
tical position and lift out the bobbin.
Fig. 7. Removing the Bobbin
19
TO REMOVE THE BOBBIN CASE FROM THE SEWING HOOK
Remove the bobbin case opener (M, Fig. 21); remove the four hook
gib screws (W, Fig. 21) from the sewing hook, lilt off the hook gib (Z, Fig.
22) and remove the bobbin case (X, Fig. 21)
TO REMOVE THE SEWING HOOK FROM THE MACHINE
Remove the throat plate, feed dog and the bobbin case opener.
loosen the two screws in the hook shalt gear (S, Fig. 20) and lilt out the
sewing hook.
I
~
')
I
\
'-.
/
\//
z
Fig. 22. Sewing Hook Removed from Machine
Showing Hook Gib and Needle Guard
TO RAISE OR LOWER THE FEED DOG
I
1
Usually when the feed dog is at its highest position, it should show a
full
tooth above the throat plate.
Remove the throat plate; clean the lint and dust from between the
feed points and replace the throat plate; tip the machine back and turn
the machine pulley towards you until the feed dog is at its highest position;
loosen screw (U, fig. 20) in the feed lilting cam fork on the feed bar and raise
or lower the feed dog, as may be required, and retighten the screw (U).
When raising or lowering the feed dog, be careful that its underside
does not drop low enough to strike the sewing hook.
