10
15

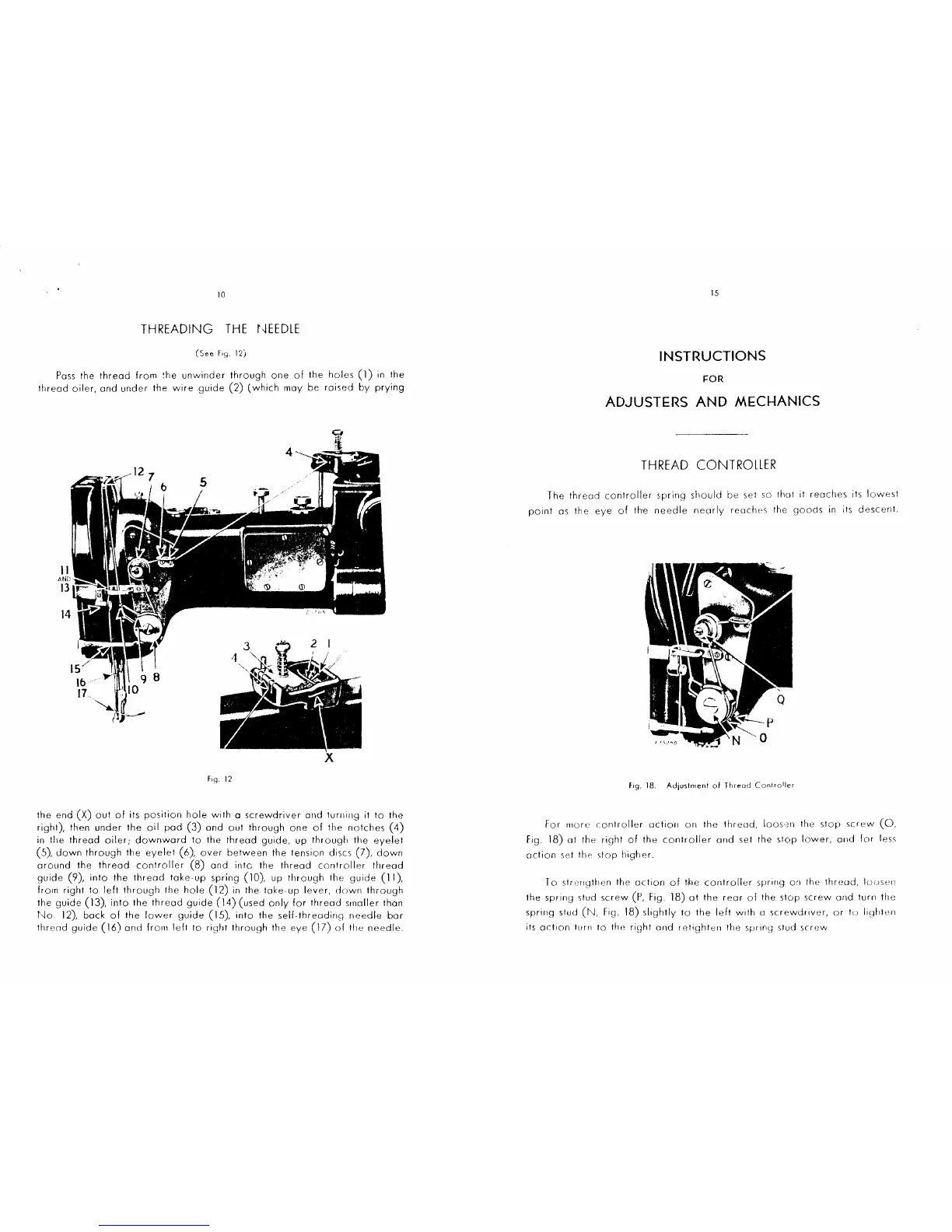

THREADING
THE
~~EEDLE
(See
F•g.
12)
Pass
the
thread
from
~he
unwinder
through
one
of
the
holes
(1)
in
the
thread
oiler,
and
under
the
wire
guide
(2)
(which
may
be
raised
by
prying
II
AtHl
13
14
the end
(X)
out
of
its
position
hole
with
a
screwdriver
and
turning
it
to
the
right),
then
under
the
oil
pod
(3)
and
out
through
one
of
the
notches
(4)
in the
thread
oiler;
downward
to
the
thread
guide,
up
through
the
eyelet
(5),
down
through
the
eyelet
(6),
over
between
the
tension
discs
(7),
down
around
the
thread
controller
(8)
and
into
the
thread
controller
thread
guide
(9),
into
the
thread
take-up
spring
(10),
up
through
the
guide
(11),
from
right
to
left
through
the
hole
(12)
in the
toke
up
lever,
down
through
the
guide
(13),
into
the
thread
guide
(14)
(used
only
for
thread
smaller
than
No.
12),
back
of
the
lower
guide
(15),
into
the
self-threoditl~J
needle
bar
threod
guide
(16)
and
from
left
to
right
through
the
eye
(17)
of
the
needle.
INSTRUCTIONS
FOR
ADJUST~RS
AND
M~CI-lANICS
THREAD
CONTROLLER
The
thread
controller
spring
should
be
set
so
tho! it
reaches
its
lowest
point
as
the
eye
of
th·e
needle
nearly
reodws
the
goods
in
its
descent.
fig.
18.
Adjustment
of
Thread
Controller
For
more
controller
action
on
the
threod,
loos·"n
the
stop
screw
(0,
Fig.
18)
of
the
right
of
the
controller
and
set the
stop
lower,
and
for
less
action
set the
stop
higher.
1 o
strcer~qthen
the
oction
of
the
controller
spring
0~1
the
threod,
loosen
the
spring
stud
screw
(P, Fig.
18)
at
the
rear
of
the
stop
screw
and
turn
the
spring
stud
(N,
Fig. 18)
slightly
to
the
left
with
a
screwdrtver,
or
tu
liqhten
its
acfton
f11rn
to
the
riSJhf
and
retighten
the
spring
stud
screw
From the library of: Superior Sewing Machine & Supply LLC
