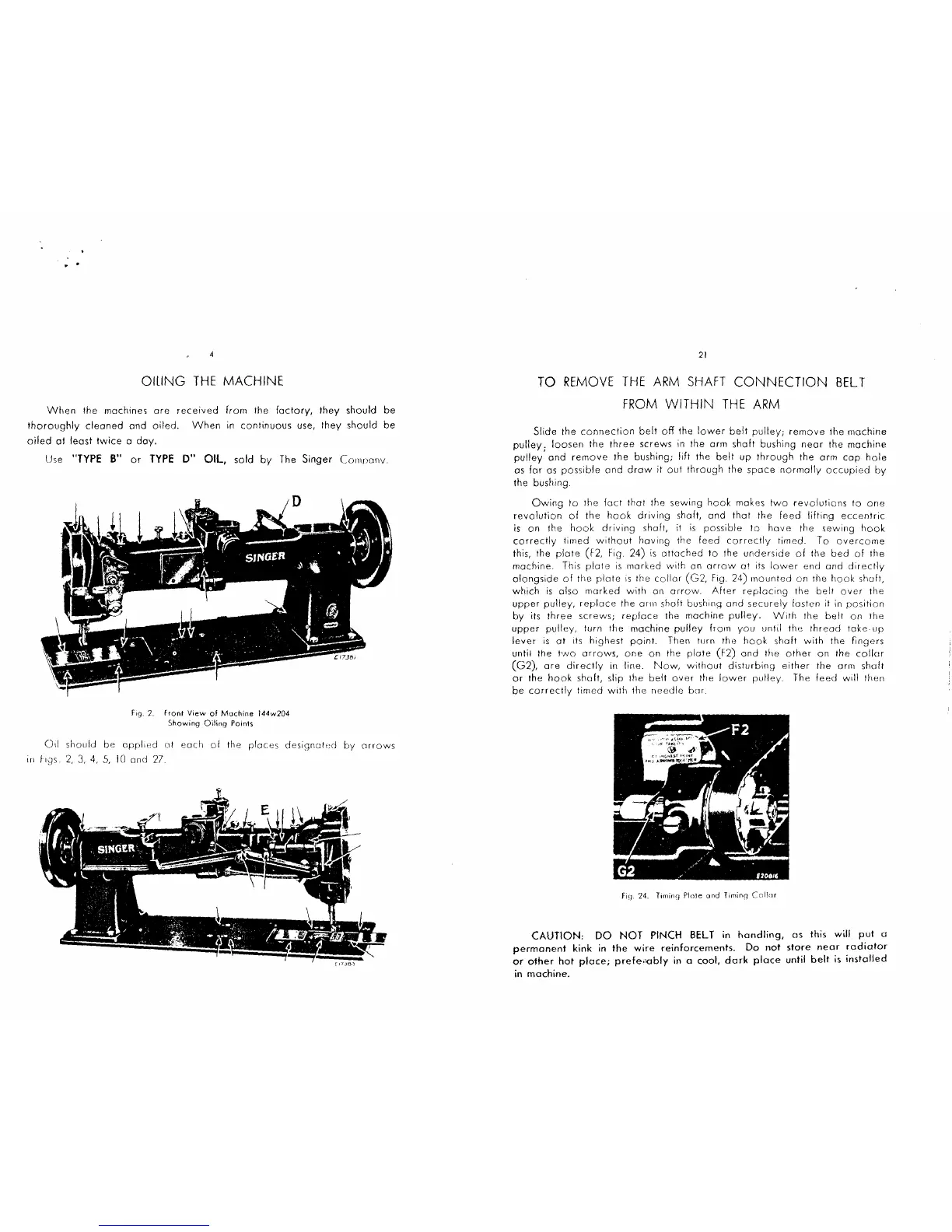

OILING THE MACHINE
When the machines are received from the factory, they should be
thoroughly cleaned and oiled. When in continuous use, they should be
oiled of least twice a day.
Use "TYPE B" or TYPE D" OIL, sold by The Singer Comnanv.
F1g. 2. Front View of Machine 144w204
Showing Oiling Points
Od should be opri,Rd ot each of the places designotc:d by arrows
If\ l1gs 2, 3, 4, 5, 10 and 27.
21
TO REMOVE THE ARM SHAFT CONNECTION BELT
FROM WITHIN THE ARM
Slide the connection belt off the lower belt pulley; remove the machine
pulley. loosen the three screws in the arm shaft bushing near the machine
pulley' and remove the bushing; lift the belt up through the arm cop hole
as far as possible and draw it out through the space normally occupied by
the bushing.
Owing to the fact that the sewing hook makes two revolutions to one
revolution of the hook driving shaft, and that the feed lilting eccentric
is on the hook driving shalt, it is possible to have the sewing hook
correctly timed without having the feed correctly timed. To overcome
this, the plate (F2, Fig. 24) is attached to the underside of the bed of the
machine. This plate is marked with on arrow at its lower end and directly
alongside of the plate is the collar (G2, Fig. 24) mounted on the hook shalt,
which is also marked with an arrow. Alter replacing the belt over the
upper pulley, replace the arn1 shalt bushinq and securely fasten it in position
by its three screws; replace the machine pulley. With the belt on the
upper pulley, turn the machine pulley from you until the thread toke- up
lever is at its highest point. Then turn the hook shalt with the fingers
until the two arrows, one on the plate (F2) and the other on the collar
(G2), ore directly in line. Now, without disturbing either the arm shaft
or the hook shaft, slip the belt over the lower pulley. The feed will then
be correctly timed with the needle bor.
Fiq. 24. T1ming P!ote and 1iming Collflr
CAUTION: DO NOT PINCH BELT in handling, as this will put a
permanent kink in the wire reinforcements. Do not store near radiator
or other hot place; prefe·10bly in a cool, dark place until belt is installed
in machine.
