Copyright © 1945 by The Singer Company
23

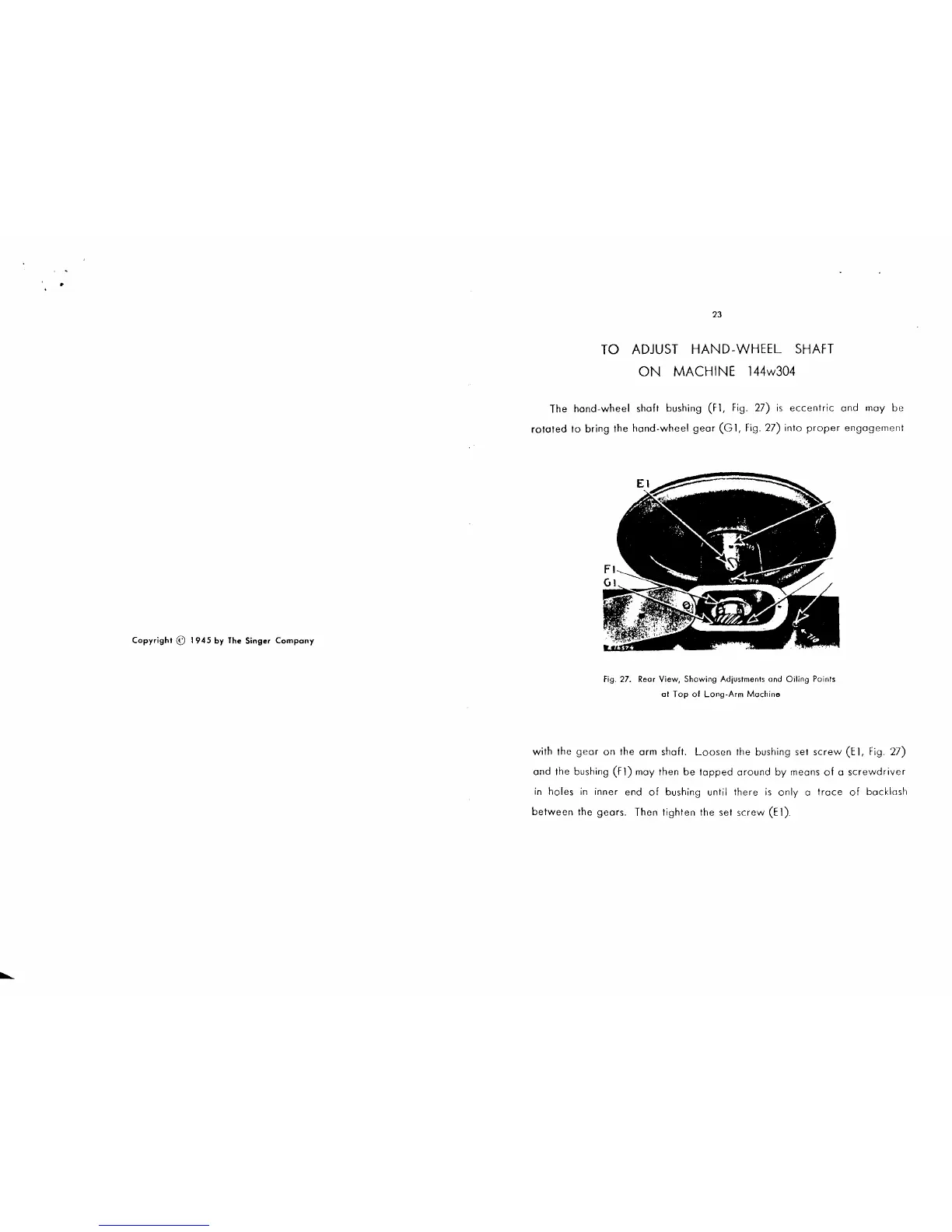

TO ADJUST HAND-WHEEL SHAFT
ON MACHINE 144w304
The hand-wheel shaft bushing (F1, Fig. 27) is eccentric and may be
rotated to bring the hand-wheel gear (G 1, Fig. 27) into proper engagement
fig. 27. Rear View, Showing Adjustments and Oiling Points
at Top of Long-Arm Machine
with the gear on the arm shaft. Loosen the bushing set screw (E 1, Fig. 27)
and the bushing (F1) may then be tapped around by means of a screwdriver
in holes in inner end of bushing until there is only a trace of backlash
between the gears. Then tighten the set screw (E 1).
