Singer 252 - Hand Wheel and Stop Motion

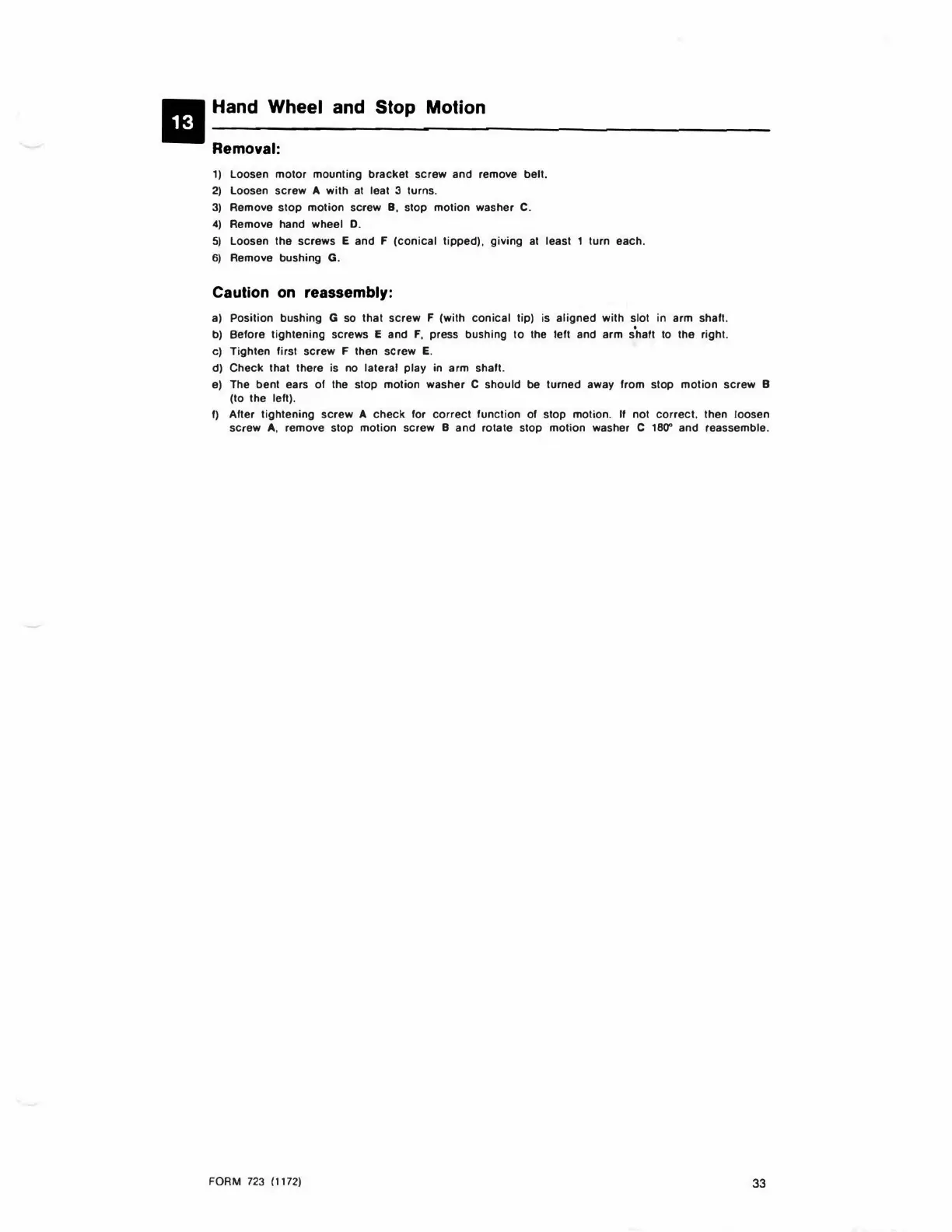

II Hand Wheel and Stop Motion
Removal:
1) Loosen motor mounting bracket screw and remove bell .
2) Loosen screw A with at leat 3 turns.
3) Remove stop motion screw B, stop motion washer C.
4) Remove hand wheel D.
5) Loosen the screws E and F (conical tipped). giving at least 1 turn each.
6) Remove bushing G.
Caution on reassembly:
a) Position bushing G so that screw F (with conical tip) is aligned with slot in arm shalt.
b) Before tightening screws E and F, press bushing to the left and arm s
0
hafl to the right.
c) Tighten first screw F then screw E.
d) Check that there is no lateral play in arm shalt.
e) The bent ears of the stop motion washer C should be turned away from stop motion screw B
(to the left).
f) Alter tightening screw A check for correct function of stop motion. II not correct , then loosen
screw A, remove stop motion screw B and rotate stop motion washer C 180' and reassemble.
FORM 723 (1172)
33
