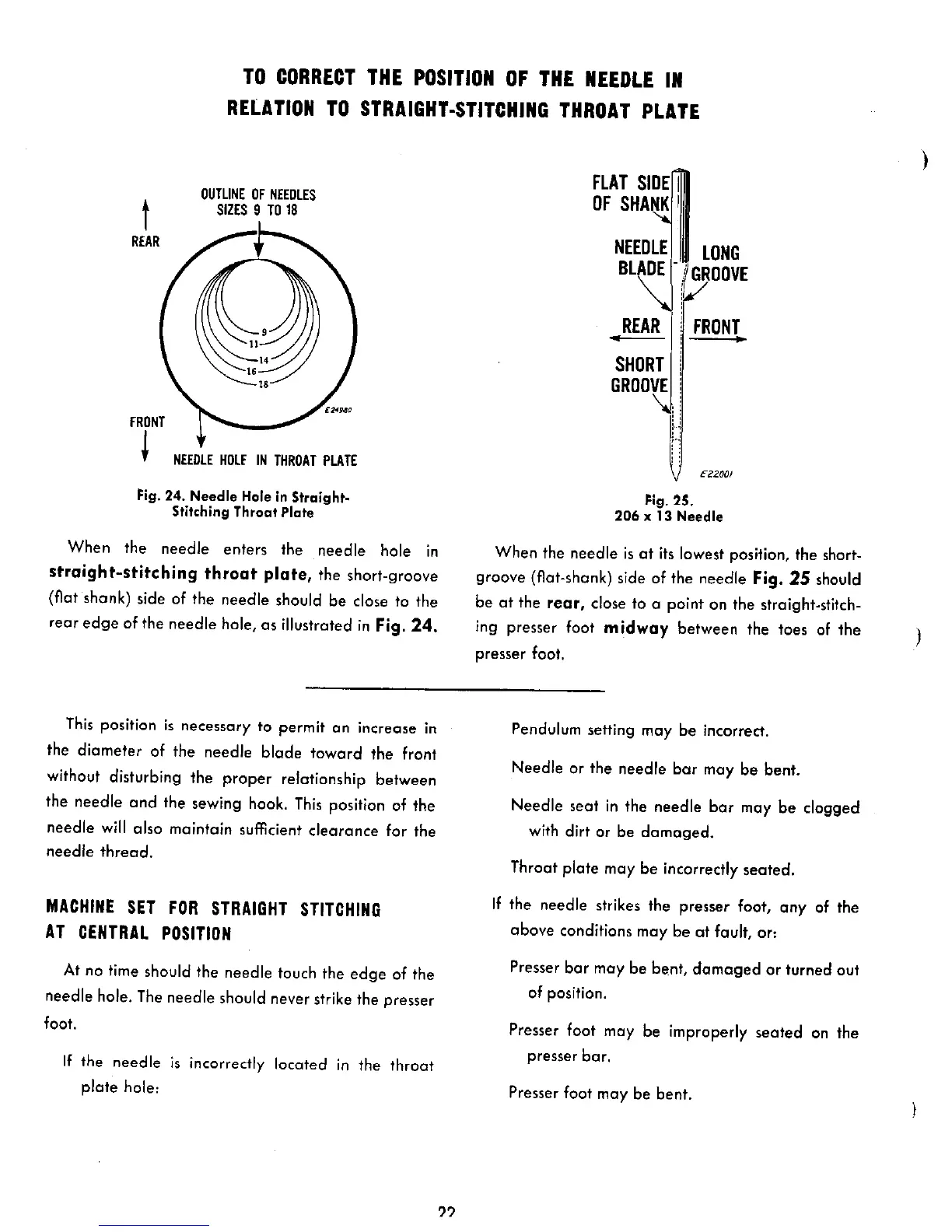

Singer 306 - To Correct the Position of the Needle in Relation to Straight-Stitching Throat Plate; Machine Set for Straight Stitching at Central Position
