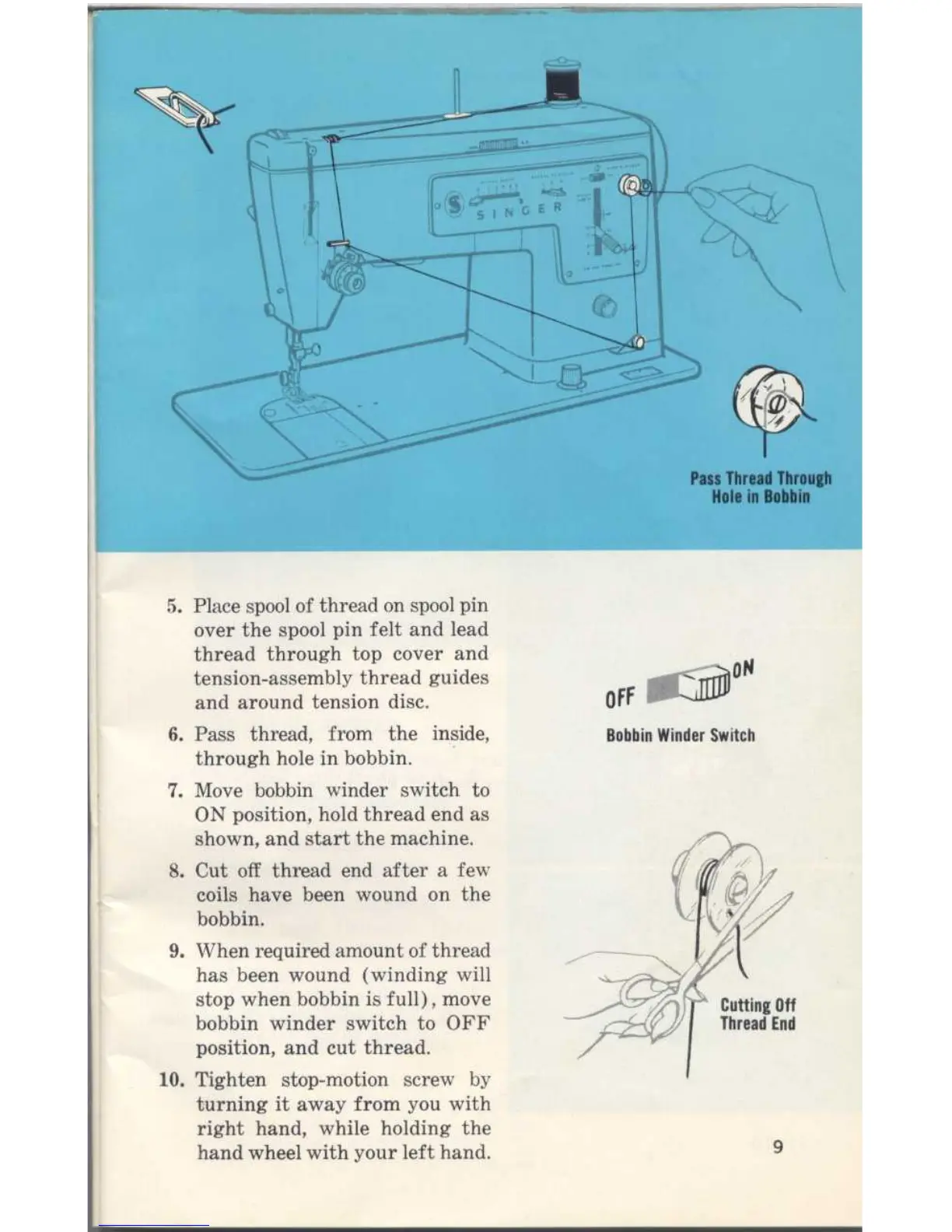

Singer 457 - Page 11

Pass Thread Through
Hole in Bobbin
5 . Place spool of thread on spool pin
over the spool pin felt and lead
thread
through top cover and
tension-assembly
threadguides
and around
tension disc . OFF
ON
6 . Pass

thread,

from

the

inside,

Bobbin Winder Switch
through hole in bobbin .
7 . Move bobbin winder switch to
ON position, hold thread end as
shown, and start the machine .
8 . Cut off thread end after a few
coils have been wound on the
bobbin .
9 . When required amount of thread
has been wound (winding will
stop when bobbin is full), move
bobbin winder switch to OFF
position, and cut thread .
10 . Tighten
stop-motion
screw by
turning it away from you with
right hand, while holding the
hand wheel withyour left hand .
9
