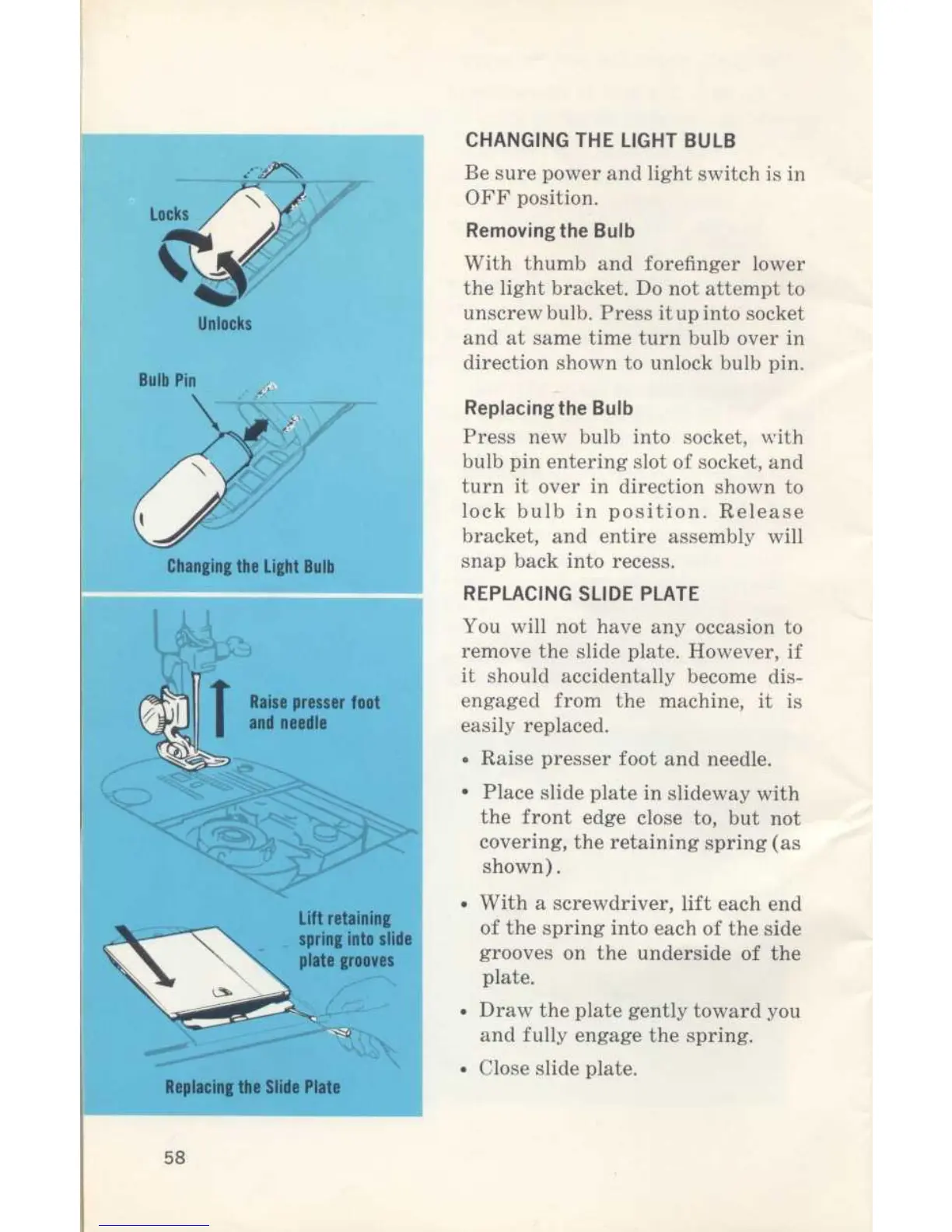

Singer 457 - Changing the Light Bulb; Replacing the Slide Plate

Bulb
Pin
Unlocks
Changing the Light Bulb
Raise
presser foot
and needle
Replacing the Slide
Plate
58
Lift retaining
spring into slide
plate grooves
CHANGING THE LIGHT BULB
Be
sure power and
light switch is in
OFF position
.
Removing
the Bulb
With
thumb
and forefinger lower
the light bracket . Do not attempt to
unscrew bulb . Press it up into socket
and at same timeturn bulb over in
direction shown to unlockbulb pin
.
Replacing the Bulb
Press
new bulb into socket, xvith
bulb pin entering slot of socket, and
turn it over in direction shown to
lock bulb in position . Release
bracket, and entire
assembly will
snap back into recess .
REPLACING
SLIDE PLATE
You will not have any occasion to
remove the slide plate . However, if
it should accidentally become dis-
engagedfrom the machine, it is
easily replaced .
. Draw the plate gently toward you
and fully engage the spring .
Raise
presser foot and needle .
Place slide plate in
slideway with
the front edge
close to, but not
covering, the
retaining spring (as
shown) .
With
a
screwdriver, lift each end
of the spring into each of the side
grooves on the underside of the
plate .
Close slide plate
.
