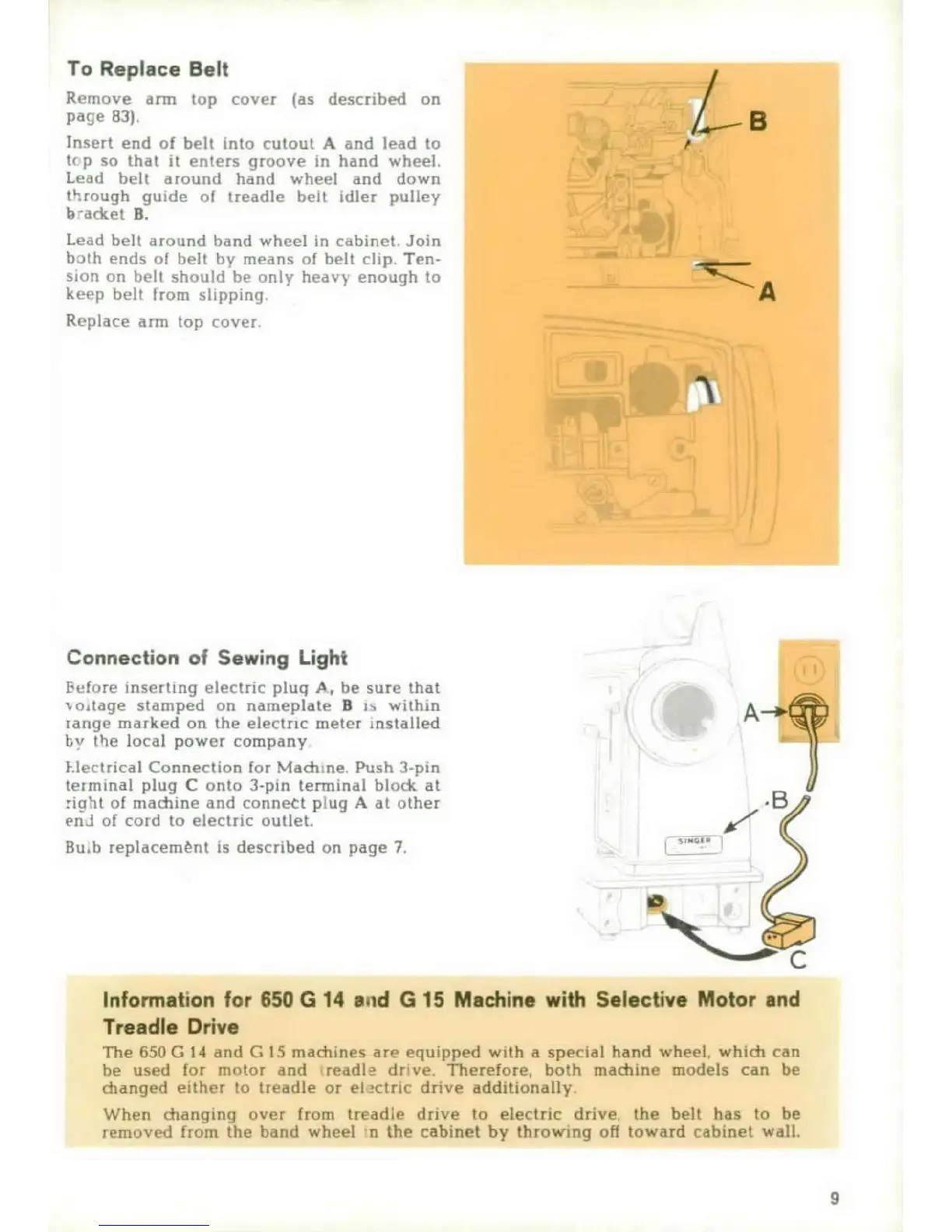

Singer 650 - To Replace Belt

To Replace
Belt
Remove arm
top cover
(as described
on
parjeA 83).
Inert end of belt into cutout A and lead
to .
tP po that
it enters
groove in hand
wheel,
Lead
belt around
hand
wheel and
down
tihrough guide of treadle belt idler pulley
bl-acket B.
Lead belt around
band wheel
in cabinet
Join
b:th
ends of belt
by means of
belt clip. Ten.
sion Do belt
should be
only heavy
enough to
ke.p belt front shipping
Replace
arm top)
Cover.
Connection
of Sewing
Light
Before
inserting
electric plug
A. be sure
that
ý0otaqe stamped on nameplate B s,. within7
tange
marked
on
the
electric
meter
installed
A
l
y
the
local
power
company
Electrical Connection
for
Machne. Push
3-pin
terminal
plug C
onto 3-pin terminal
block
at
rioht
of machine and connect
plug A at other
ý13
en.i of
cord to electric
outlet.
Bumb replacement
is described
on page 7.
Information
for 650
G 14 end
G 15 Machine
with Selective
Motor
and
Treadle
Drive
The
650 G 14 and
G 15 madcines
are equipped
with a
special hand
wheel, which
can
be used
for motor and
treadle drive,
Therefore, both
machine models
can be
dcanged
either to treadle
or electric
drive
additionally.
When
changing
over from
treadle
drive to electric
drive,
the belt
has to be
removed from
the band
wheel or the
cabinet by
throwing off
toward cabinet
wall.
9
