28

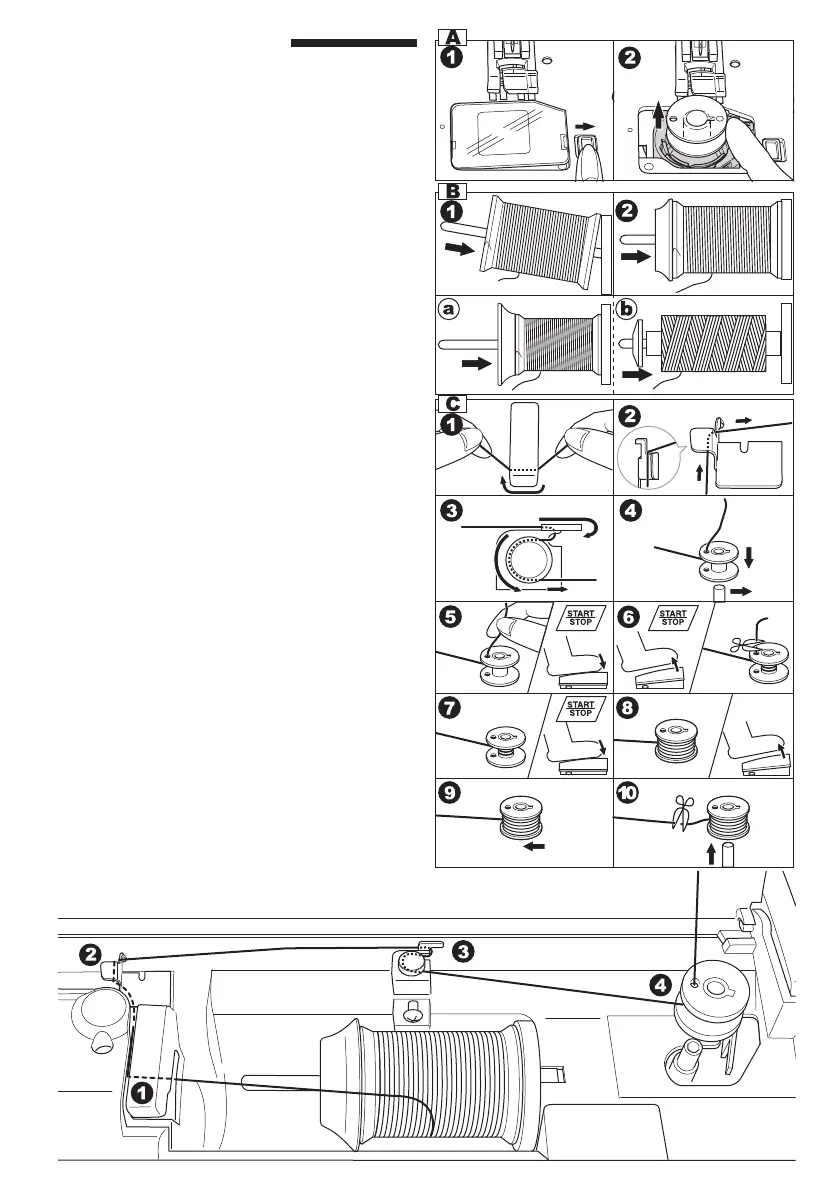

BOBBIN SETTING
A. REMOVING THE BOBBIN
1. Pull the bobbin cover latch to the right and remove
the bobbin cover.
2. Lift up the bobbin from the machine.
B. SETTING SPOOL OF THREAD ON SPOOL
PIN
1. Pull up the left end of spool pin and set the spool
of thread on spool pin so that the thread unrolls
from the front of the spool.
2. Set the spool cap on spool pin as far as it will go.
a: Reverse spool cap direction according to the
size of spool.
b. Use the small spool cap when you use cross
wound thread. Leave small opening between cap
and spool as illustration.
C. WINDING THE BOBBIN
1. Hold thread in both hands and hook thread
to the guide from front opening.
2. Bring thread towards the rear of the machine
and pass through the thread guide from left to
right.
3. Bring thread to the right and pass thread
through the thread guide from rear side. Pass
thread under tension disc in counter clockwise
direction.
4. Insert thread through hole in bobbin and
place the bobbin on bobbin winding spindle. Push
bobbin to the right to engage bobbin winder. LCD
will indicate the bobbin winding mode.
5. Hold the end of the thread and start the
machine by pressing the Start/Stop button or
pressing the foot controller pedal.
6. After the bobbin winds a few turns, stop the
machine by pressing the Start/Stop button or
releasing the foot controller pedal. Cut the thread
near hole.
7. Start the machine again.
8. The bobbin winding will stop automatically
when bobbin is full. (Release the pedal.)
9. Push the bobbin and spindle to the left.
10. Remove the bobbin from the spindle and cut
the thread.
To Next Page
