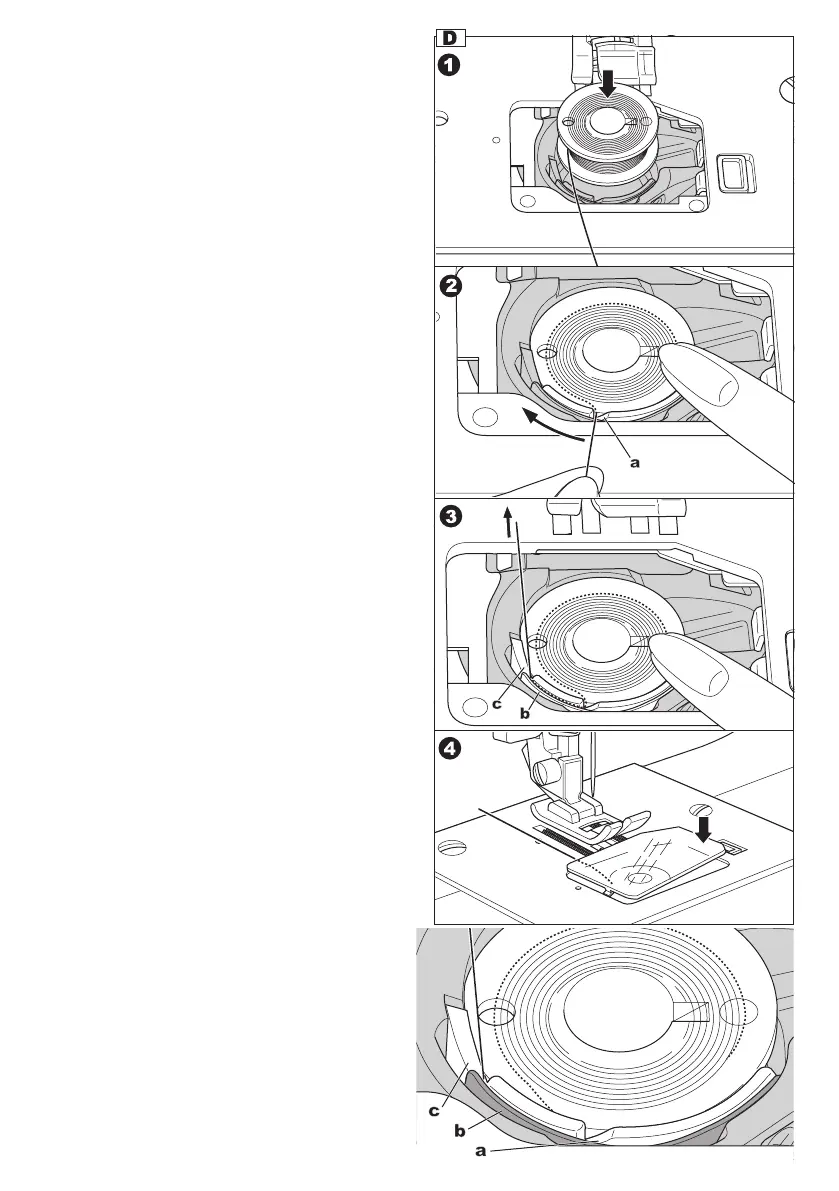

D. INSERTING THE BOBBIN
1. Place bobbin into bobbin holder so that the
bobbin turns counter clockwise.
2. Draw thread into notch (a) while holding the
bobbin lightly with your nger.
3. Pull thread toward the left and along the inside
of spring (b) until it slips into notch (c) making
sure that thread does not slip out of notch (a).
4. Pull thread out about 10 cm (4 inches).
Replace the bobbin cover. Set the left tab into
the hole in needle plate and push the right side
of bobbin cover down until it clicks into place.
Note: Be sure to use only SINGER Class 15
bobbins in this machine.
16
