Singer SRP-50 - Page 21

c ~
~
--- B ----
-
, .....
0

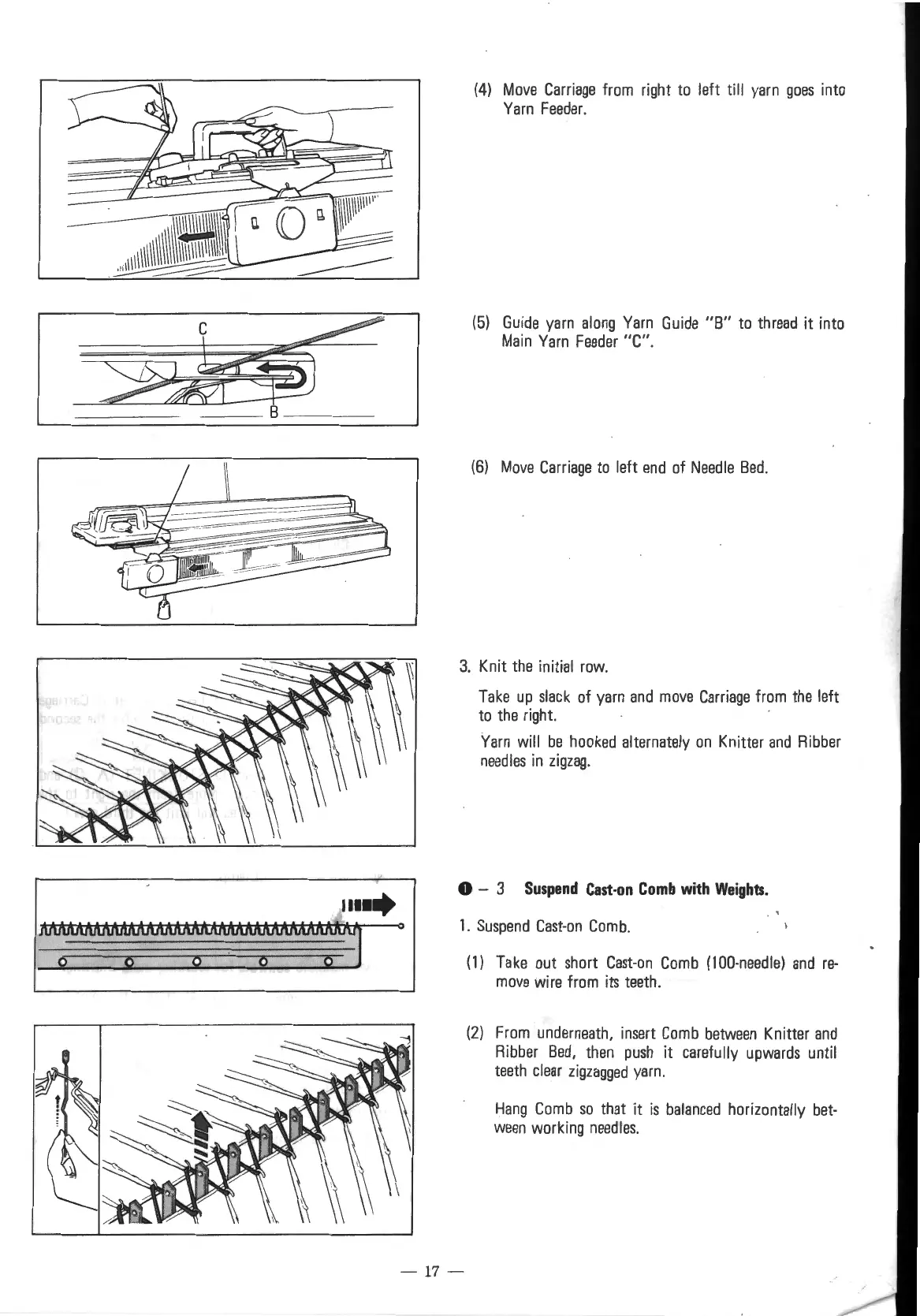

(4) Move Carriage from right to left ti ll yarn goes into
Yarn Feeder.
(5) Guide yarn along Yarn Guide "B" to thread it into
Main Yarn Feeder "C".
(6) Move Carriage to left end of Needle Bed.
3. Knit the initial row .
Take up slack of yarn and move Carriage from the left
to the right.
Yarn will be hooked alternately on Knitter and Ribber
needles in zigzag.
0 - 3 Suspend Cast-on Comb with Weights.
1. Suspend Cast-on Comb .
(1) Take out short Cast-on Comb (100-needle) and re-
move wire from its teeth.
(2) From underneath, insert Comb between Knitter and
Ribber Bed, then push it carefully upwards until
teeth clear zigzagged yarn.
Hang Comb so that it is balanced horizontally bet-
ween working needles.
- 17 -
