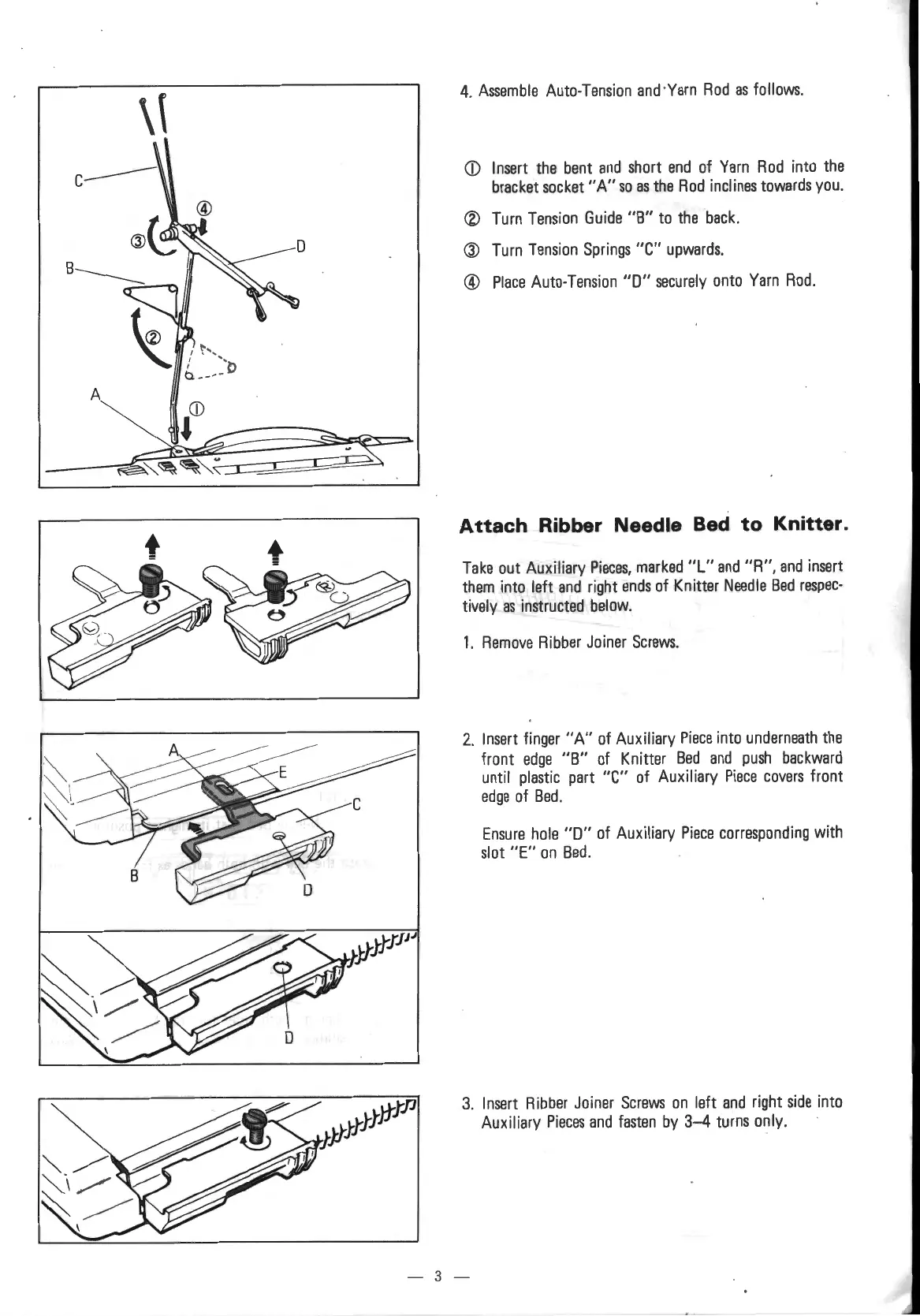

4. Assemble Auto-Tension and · Yarn Rod as follows.
CD Insert the bent and short end of Yarn Rod into the
bracket socket "A" so as the Rod inclines towards you .
CV Turn Tension Guide "B" to the back .
® Turn Tension Springs "C" upwards .
@ Place Auto-Tension "D" securely onto Yarn Rod.
Attach Ribber Needle Bed to Knitter.
Take out Auxiliary Pieces, marked "L" and "R", and insert
them into left and right ends of Knitter Needle Bed respec-
tively as instructed below.
1. Remove Ribber Joiner Screws.
2. Insert finger "A" of Auxiliary Piece into underneath the
front edge "B" of Knitter Bed and push backward
until plastic part "C" of Auxiliary Piece covers front
edge of Bed .
Ensure hole "D" of Auxiliary Piece corresponding with
slot "E" on Bed.
3. Insert Ribber Joiner Screws on left and right side into
Auxiliary
Pieces and fasten by 3-4 turns only.
- 3-
