TT700
12
THREADING THE MACHINE

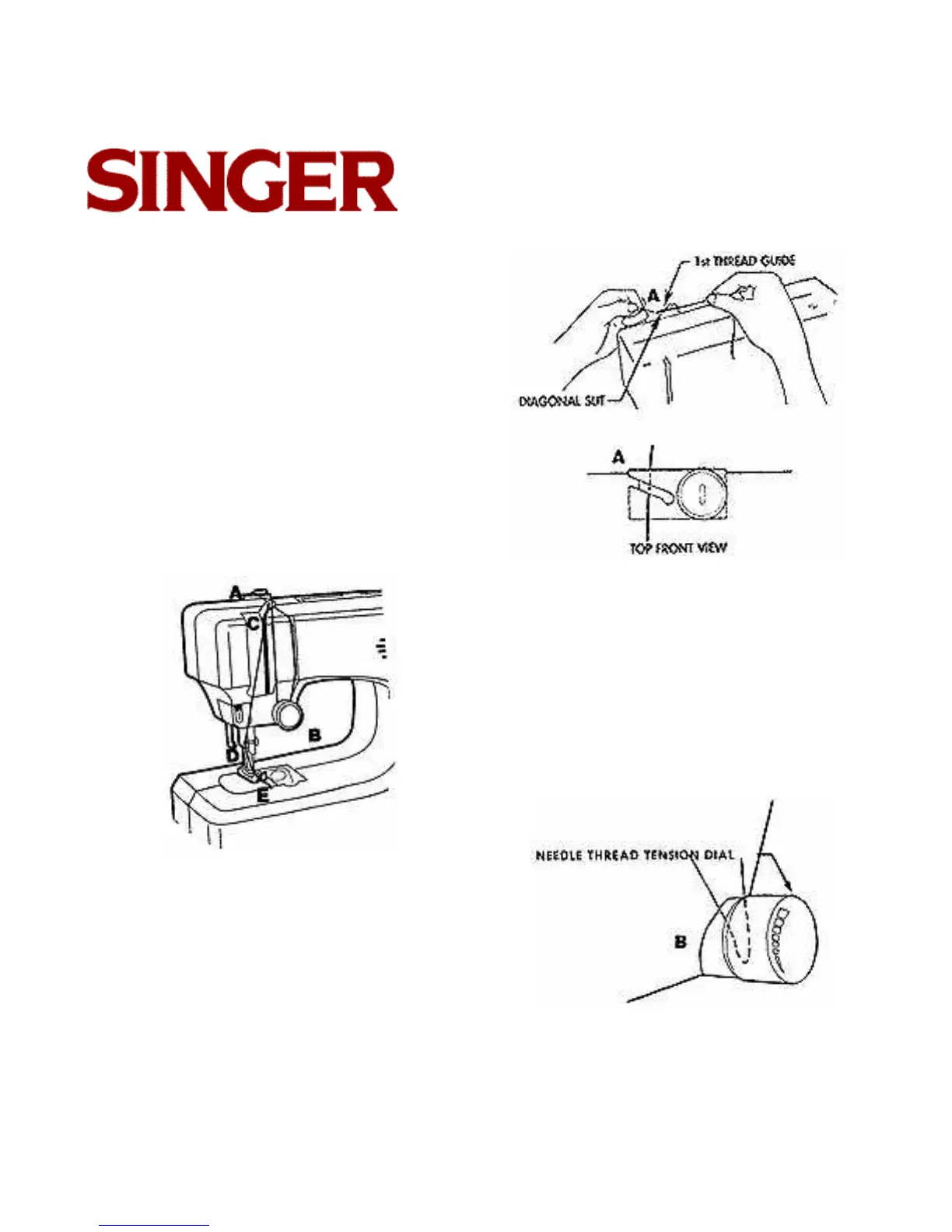

There are five thread guides that the top
(needle) thread passes through. The diagram
at right shows an overview of the threading
procedure; refer to the specific instructions
below for important details.
Your spool of thread should be in the same
position as it was for winding the bobbin, on
the spool pin on the back of the machine. Cut
the thread near the spool and pull the tail out
of the thread guide and tension disc.
1. Pull thread from spool and, using two
hands, pull it through diagonal slit in
thread guide A. Do not wrap thread
around tension disc for sewing.
Thread guide A should look like this
when properly threaded.
2. Guide thread around tension dial B and
Pull thread between the tension discs.
