TT700
19
BOBBIN CASE REPLACEMENT
A special feature of the machine is the anti-thread jamming bobbin case. The bobbin case is
held in place by a positioning plate which is designed to flex slightly to allow the bobbin case
to move back and forth freely, about 1/16".
In the event that the bobbin case becomes displaced and does not move freely or pops out
completely, follow the three easy steps below. To assist you, the instructions are color coordi-
nated to the illustrations.

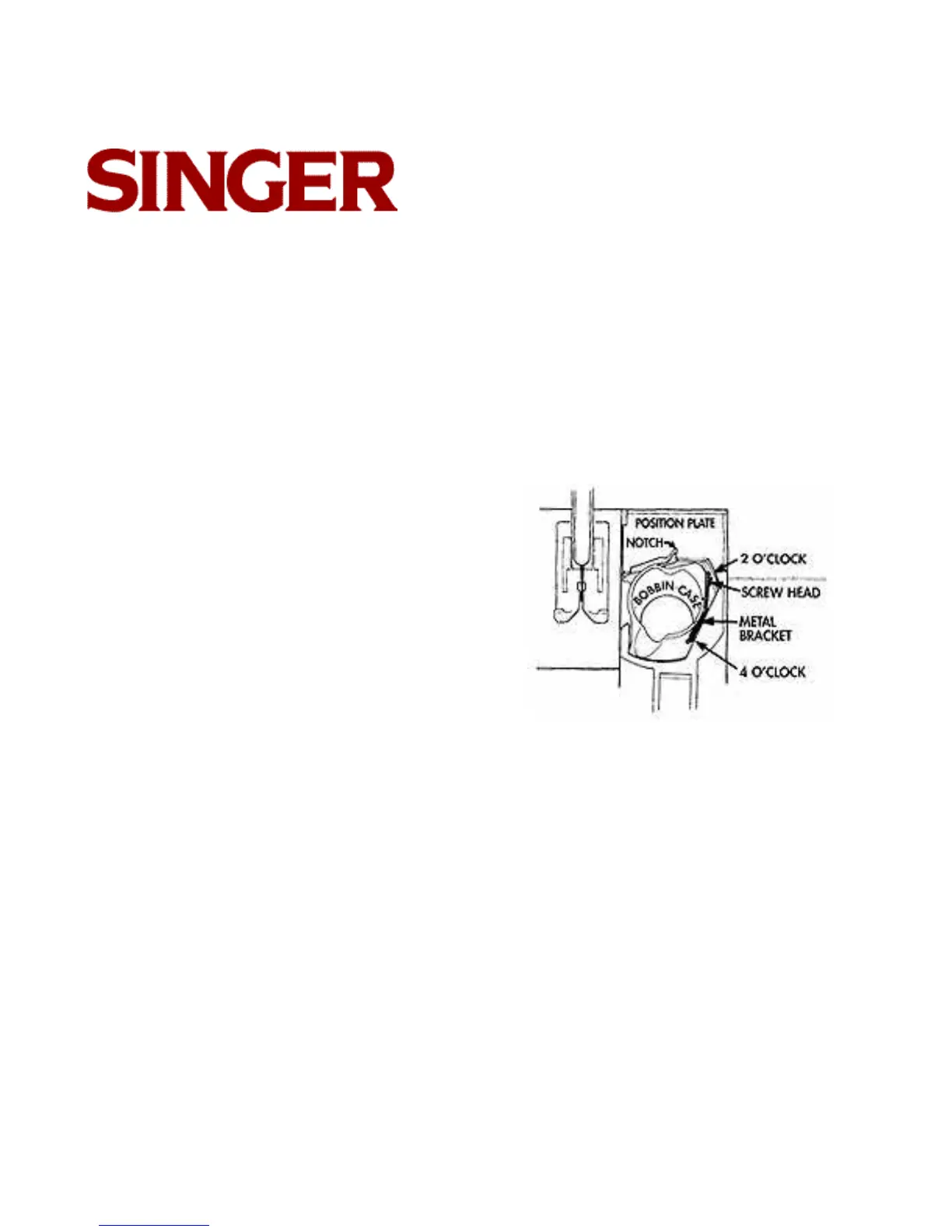

STEP 1:
Remove bobbin from bobbin case.
If bobbin case has popped out, put back in
position as follows: Place bobbin case under
position plate so that screw head is under
notch in position plate. Then, slide bobbin
case around until metal bracket sits between
2 o'clock and 4 o'clock positions. Proceed to
step 2.
