TT700
8

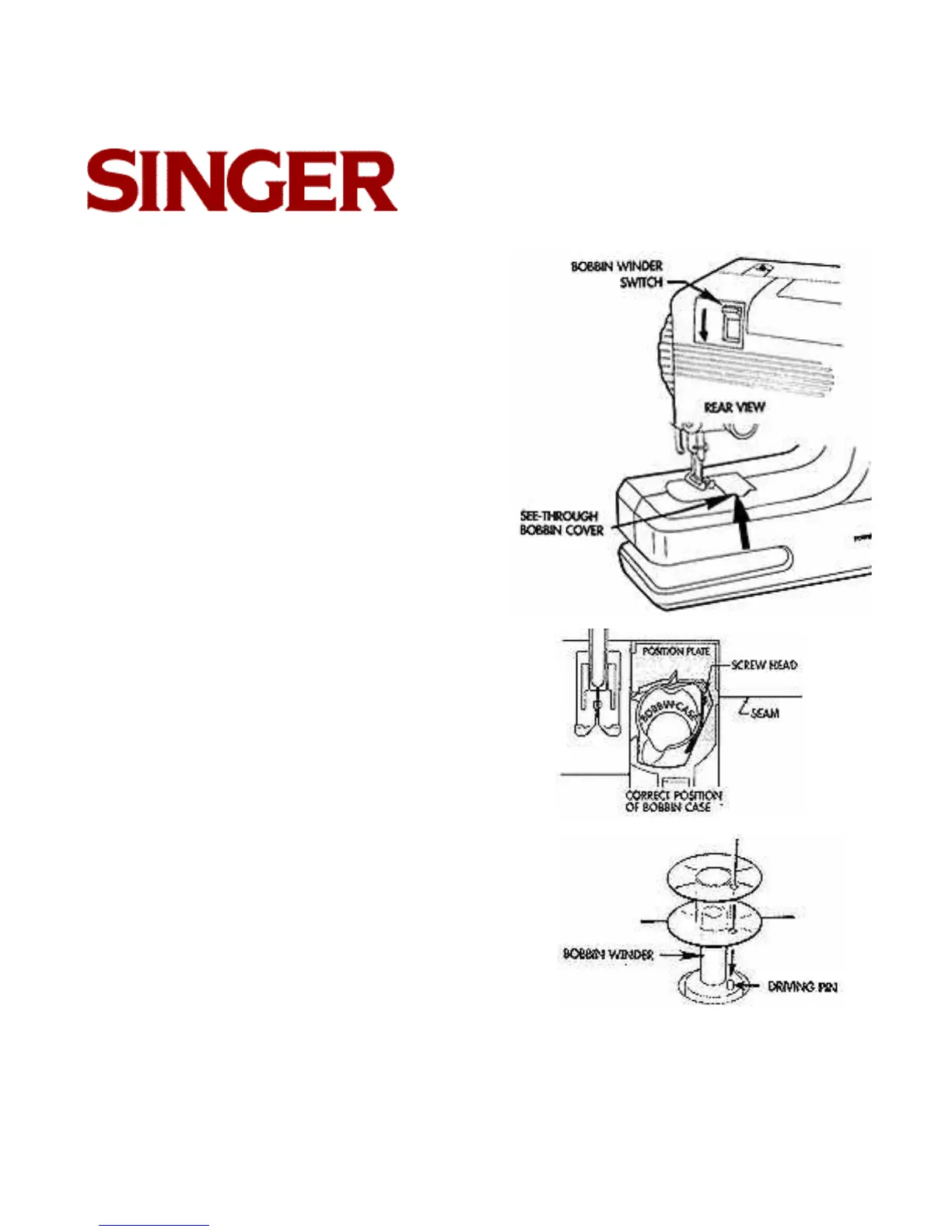

WINDING THE BOBBIN
1. Push bobbin winder switch down to raise
bobbin winder.
2. Remove see-through bobbin cover by
pulling it upwards.
Check that bobbin case is in proper posi-
tion. The bobbin case is held in place by a
position plate which is designed to flex
slightly to allow the bobbin case to move
back and forth freely, about 1/16"
Screw head should line up with seam in
plastic casing of machine and bobbin case
should move back and forth slightly (about
1/16'') when handwheel is turned. If not,
refer to page 17 for repositioning instruc-
tions.
3. Remove empty bobbin from bobbin case.
The seam ripper may make removal easi-
er.
Place bobbin on bobbin winder, aligning
hole in bobbin with driving pin on bobbin
winder. You may have to turn the handwheel
to help locate the driving pin.
