TT700
22

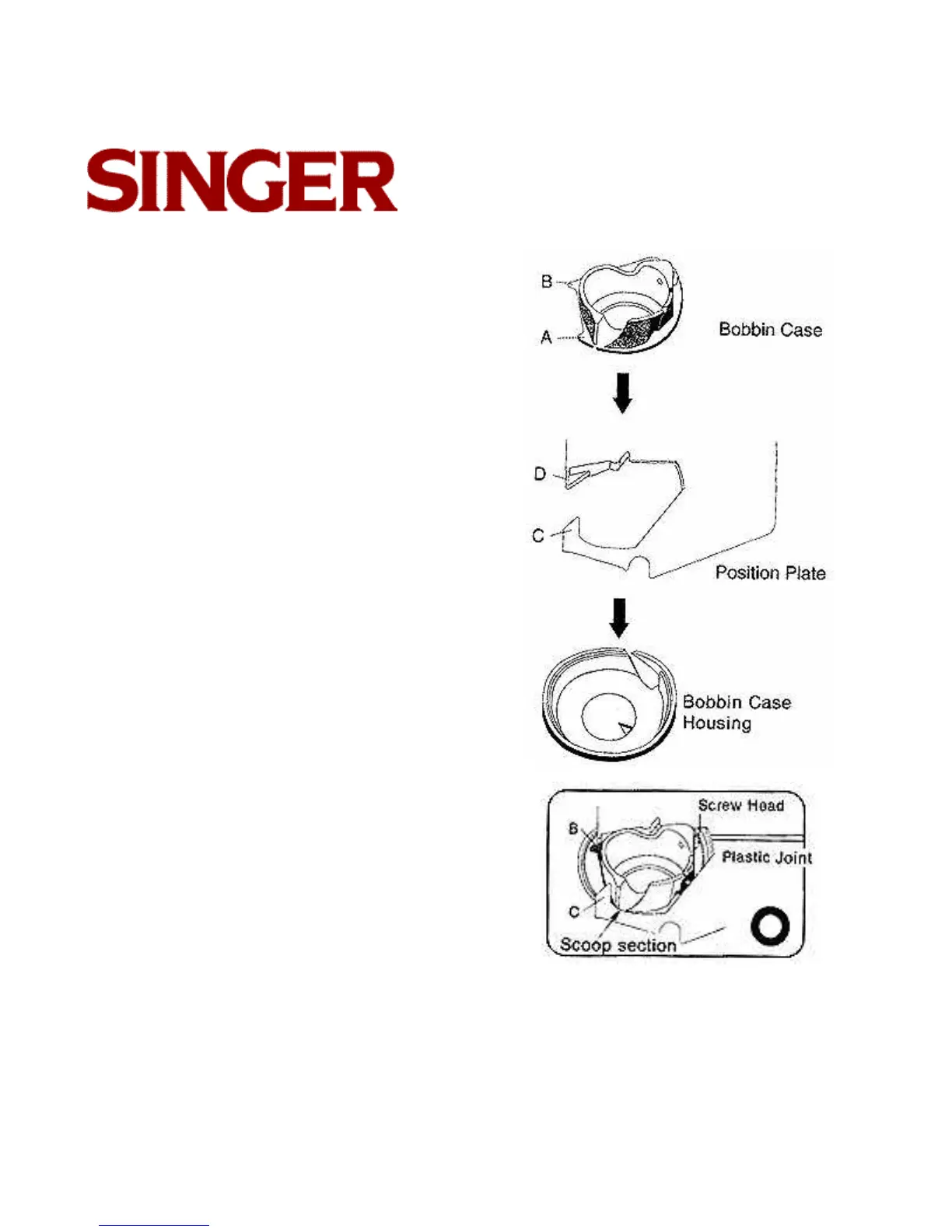

Drawing A
Breakdown view of bobbin case,
position plate and bobbin case housing
Drawing B
• Correct position of bobbin case after
installation.
• The screw head aligns with opposite side
of plastic joint.
• The scoop section located to right side of
point C
