3

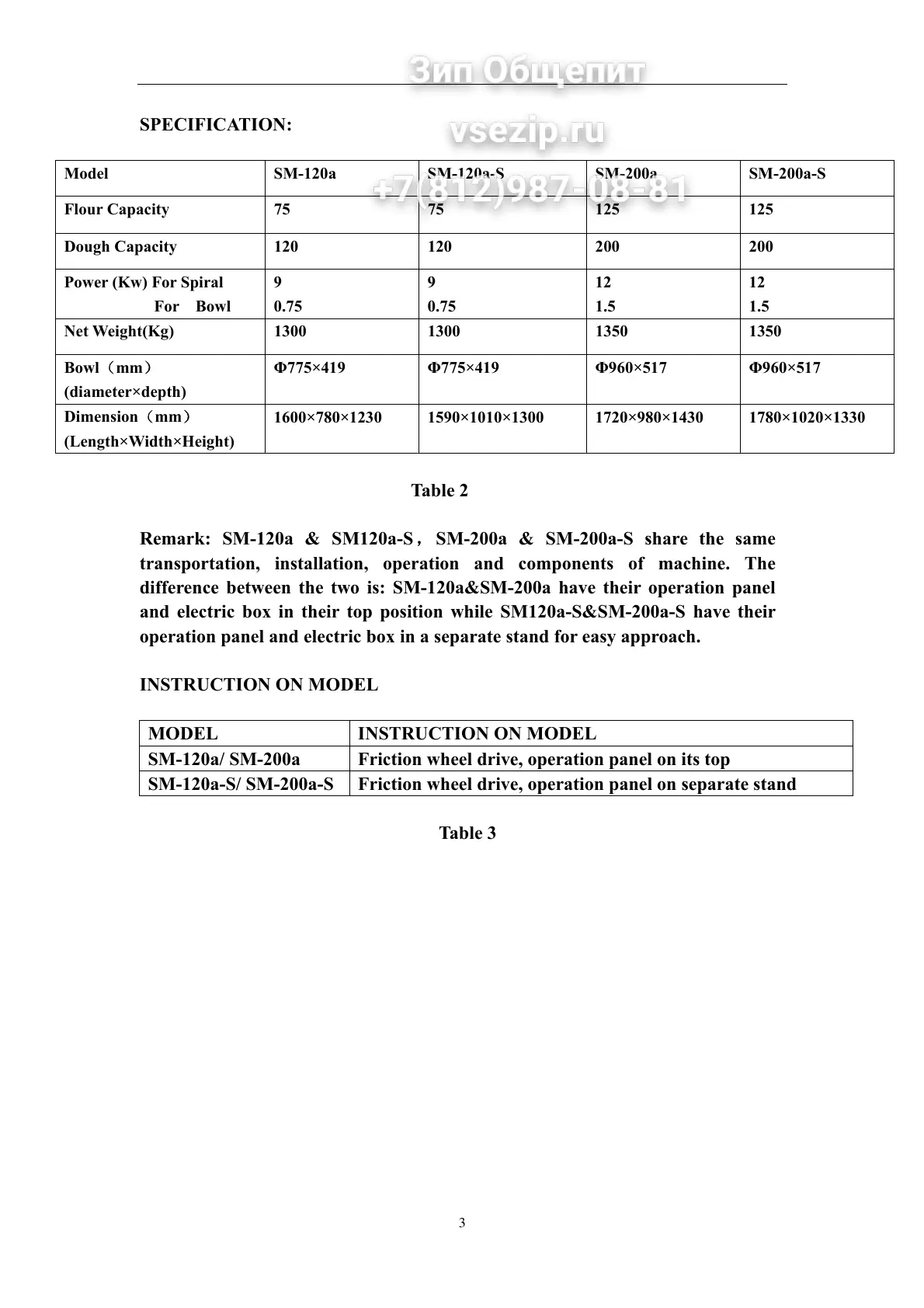

SPECIFICATION:
Model SM-120a SM-120a-S SM-200a SM-200a-S
Flour Capacity 75 75 125 125
Dough Capacity 120 120 200 200
Power (Kw) For Spiral
For Bowl
9
0.75
9
0.75
12
1.5
12
1.5
Net Weight(Kg) 1300 1300 1350 1350
Bowl（mm）
(diameter×depth)
Φ775×419 Φ775×419 Φ960×517 Φ960×517
Dimension（mm）
(Length×Width×Height)
1600×780×1230 1590×1010×1300 1720×980×1430 1780×1020×1330
Table 2
Remark: SM-120a & SM120a-S，SM-200a & SM-200a-S share the same
transportation, installation, operation and components of machine. The
difference between the two is: SM-120a&SM-200a have their operation panel
and electric box in their top position while SM120a-S&SM-200a-S have their
operation panel and electric box in a separate stand for easy approach.
INSTRUCTION ON MODEL
MODEL INSTRUCTION ON MODEL
SM-120a/ SM-200a Friction wheel drive, operation panel on its top
SM-120a-S/ SM-200a-S Friction wheel drive, operation panel on separate stand
Table 3
