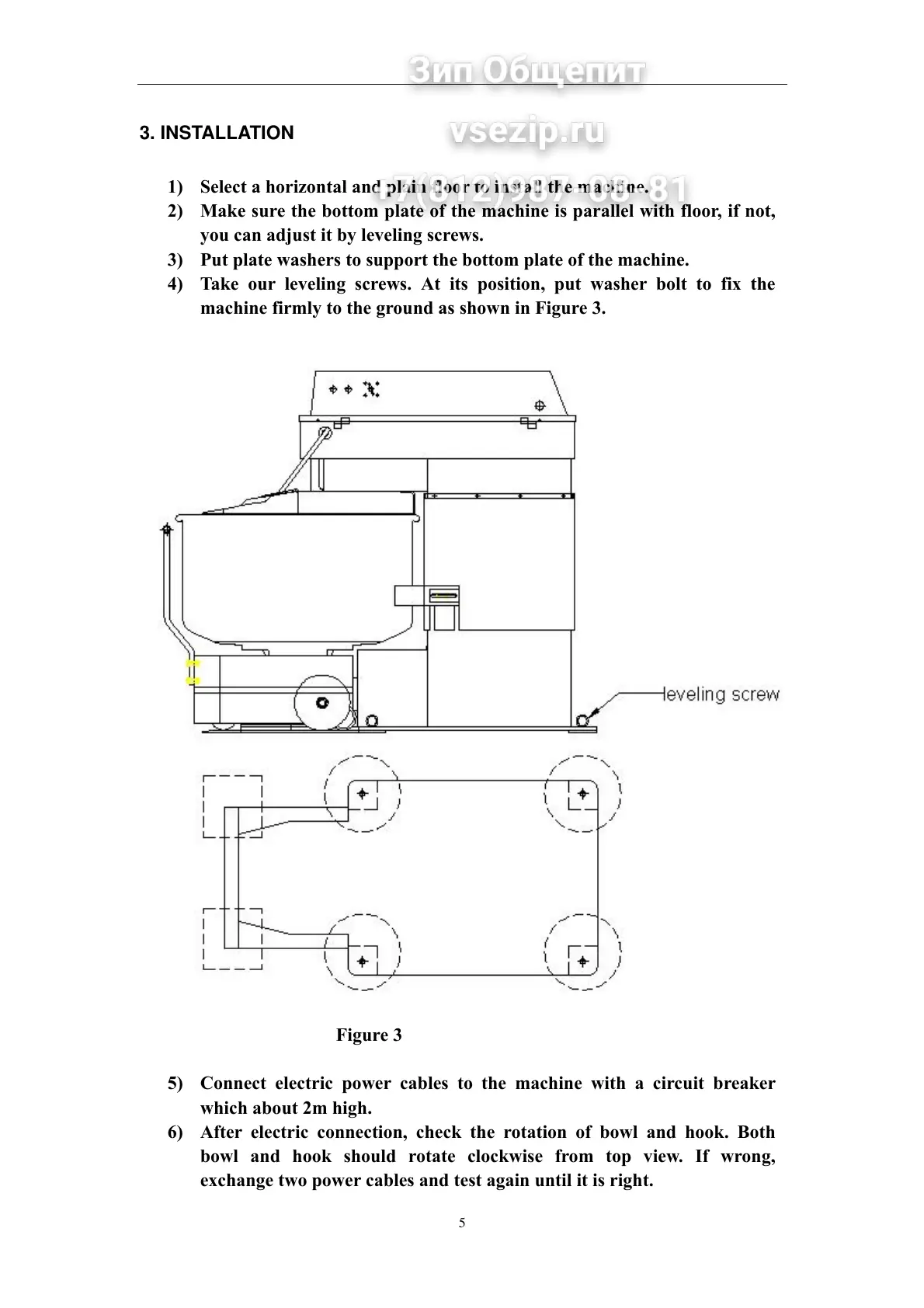

3. INSTALLATION
1) Select a horizontal and plain floor to install the machine.
2) Make sure the bottom plate of the machine is parallel with floor, if not,
you can adjust it by leveling screws.
3) Put plate washers to support the bottom plate of the machine.
4) Take our leveling screws. At its position, put washer bolt to fix the
machine firmly to the ground as shown in Figure 3.
Figure 3
5) Connect electric power cables to the machine with a circuit breaker
which about 2m high.
6) After electric connection, check the rotation of bowl and hook. Both
bowl and hook should rotate clockwise from top view. If wrong,
exchange two power cables and test again until it is right.
