6

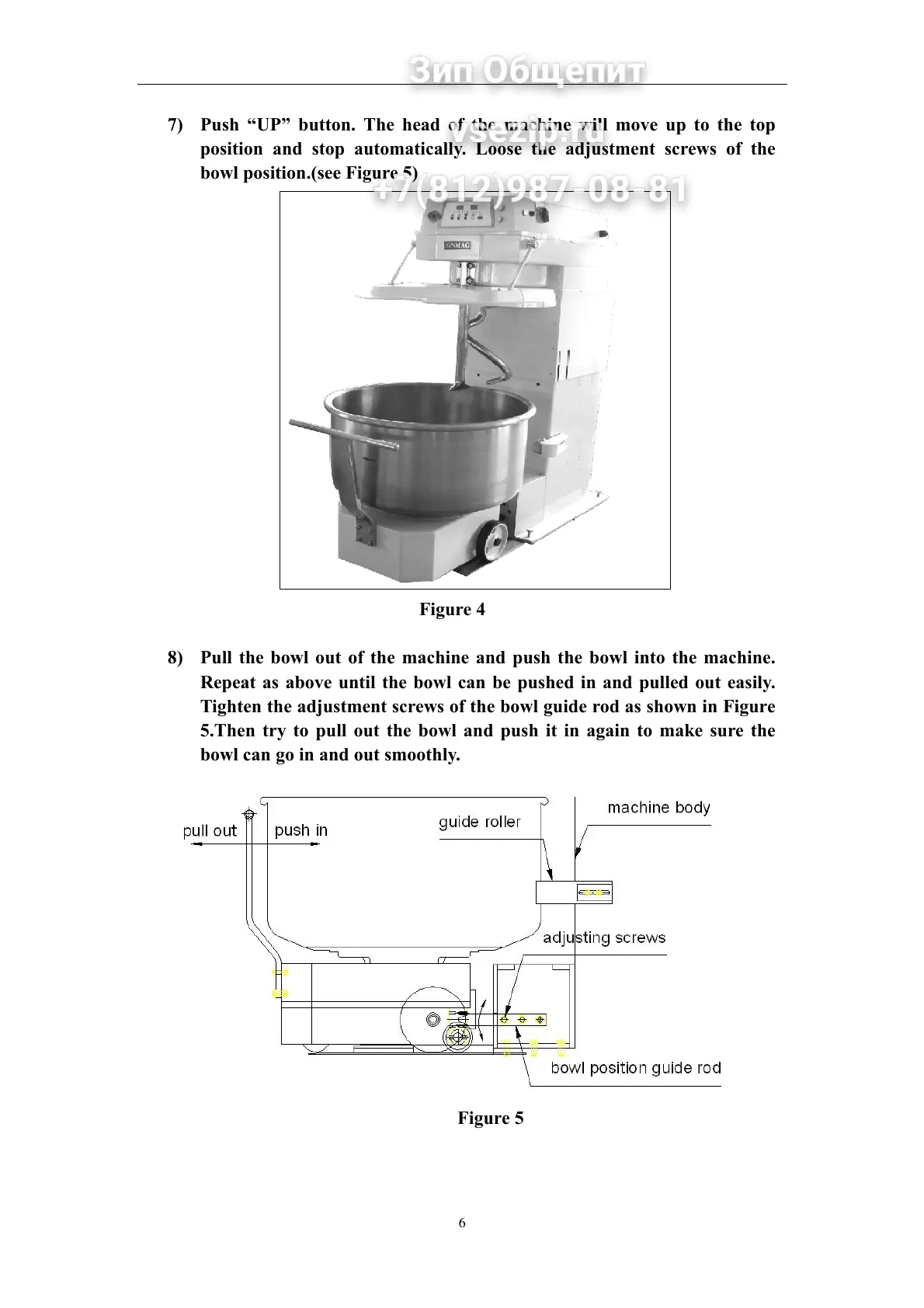

7) Push “UP” button. The head of the machine will move up to the top
position and stop automatically. Loose the adjustment screws of the
bowl position.(see Figure 5)
Figure 4
8) Pull the bowl out of the machine and push the bowl into the machine.
Repeat as above until the bowl can be pushed in and pulled out easily.
Tighten the adjustment screws of the bowl guide rod as shown in Figure
5.Then try to pull out the bowl and push it in again to make sure the
bowl can go in and out smoothly.
Figure 5
