4

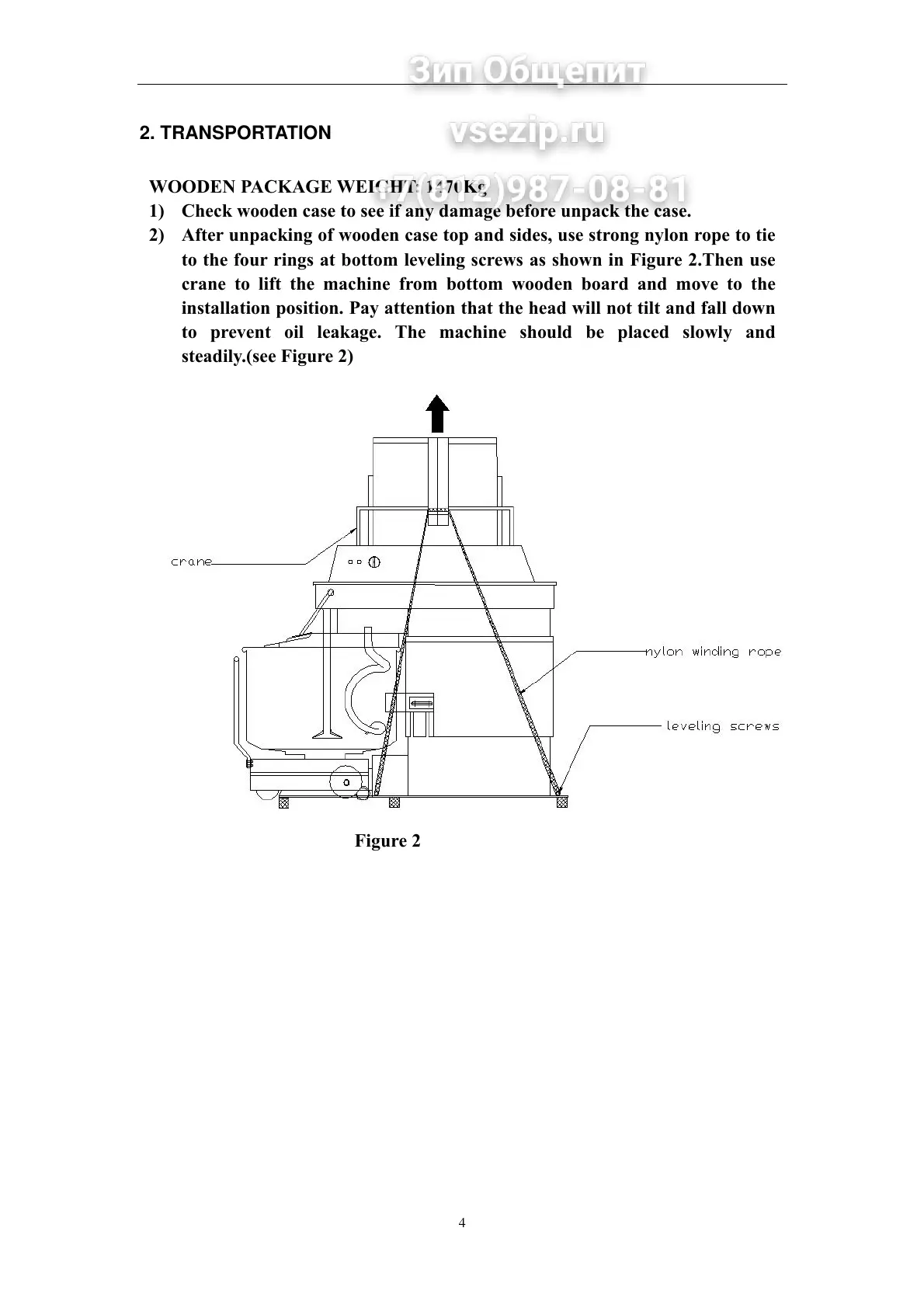

2. TRANSPORTATION
WOODEN PACKAGE WEIGHT: 1470Kg
1) Check wooden case to see if any damage before unpack the case.
2) After unpacking of wooden case top and sides, use strong nylon rope to tie
to the four rings at bottom leveling screws as shown in Figure 2.Then use
crane to lift the machine from bottom wooden board and move to the
installation position. Pay attention that the head will not tilt and fall down
to prevent oil leakage. The machine should be placed slowly and
steadily.(see Figure 2)
Figure 2
