SINTERIT POWDER HANDLING STATION - 4 Sinterit Powder Handling Station; Description

4. Sinterit Powder Handling Station
A. DESCRIPTION
3
4
40
12
5
41
7
8
9
11
10
1
2
6
13

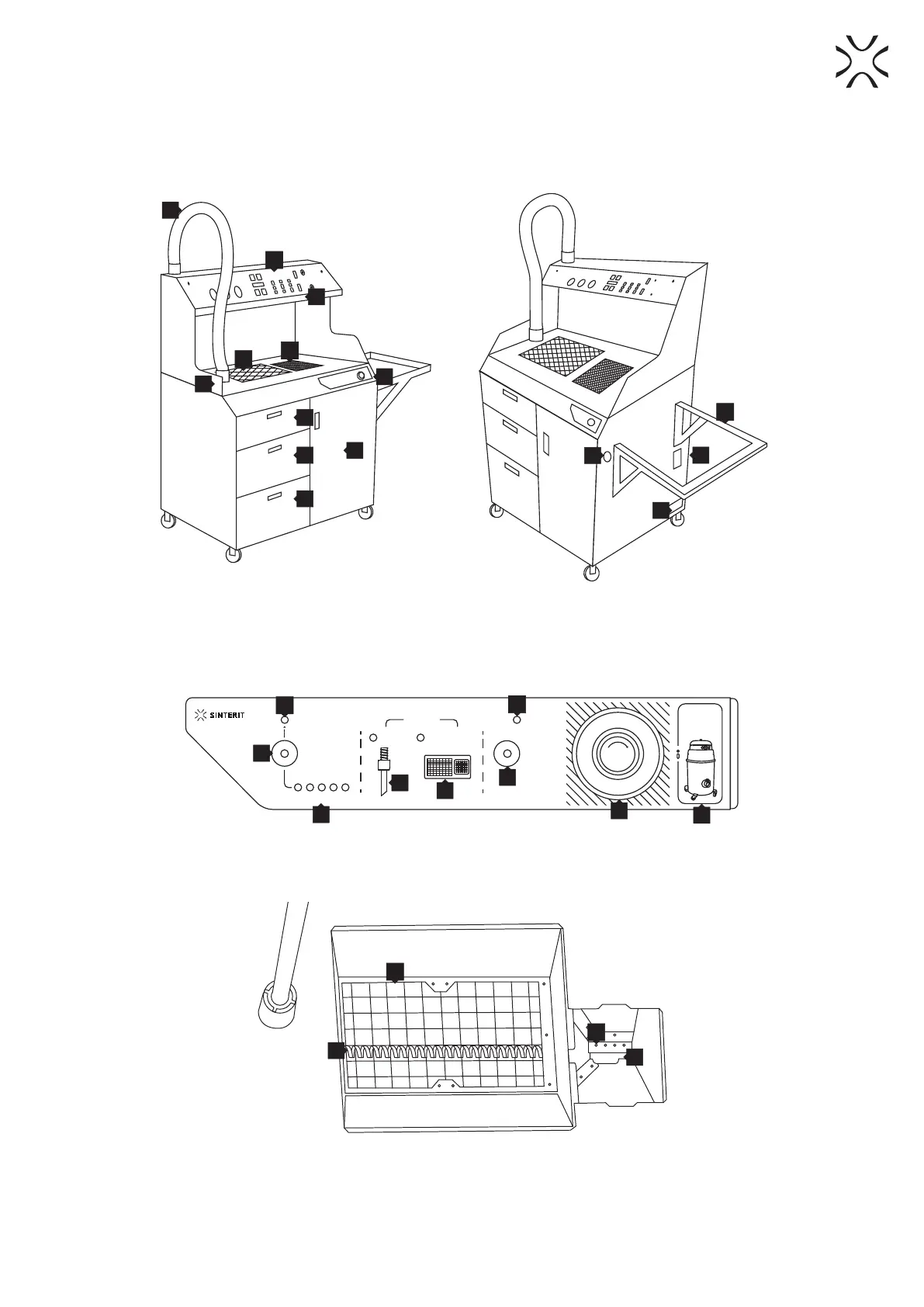

Image 1. General view of the Sinterit PHS.
1.Powder Chamber with grid, 2.Fine Dust Chamber with grid, 3.Suction hose with Suction Handle, 4.Suction Handle socket,
5.LED light, 6.Toolboard, 7.Drawer 1 (for small printout cleaning equipment), 8.Drawer 2 (for IO Box),
9.Drawer 3 (for Spare Metal container and Funnel), 10.Control panel, 11.Sifting module (behind the door),
12.Connector for Antistatic hose, 13.Metal shelf for Sandblaster or Foldable Tray (option), 40.Power socket,
41. Service access to Powder Feeding Screw
TURN ON
VACUUM
FIRST
PHS
LIGHT
ON/OFF
POWER
SUCTION
VACUUM
SIFTING
ON/OFF
ON/OFF
TIMER
HANDLE
DEPOWDERING
ZONE
SUCTION
S
T
O
P
E
M
E
R
G
E
N
C
Y
15
17
18
19
20
14
16
22
21
Image 2. View of the Control panel
14.Main switch, 15. Sifting module timer, 16.Suction Handle suction indicator, 17.Fine Dust Chamber suction indicator,
18.LED light switch (on/off), 19.Safety button (E-STOP), 20. Reminder to turn on the vacuum cleaner, 21.Power supply indicator,
22.Vacuum Suction sensor indicator
23
24
22
23
Image 3. View of the inside of Powder Chambers (main and Fine Dust).
22.Powder Feeding Screw guard (mesh) in Powder Chamber, 23.Powder Feeding Screw,
24.Powder Feeding Screw guard in Fine Dust Chamber
POWDER HANDLING STATION Manual | 12
