Snifter mA+ EX RF User Manual 6

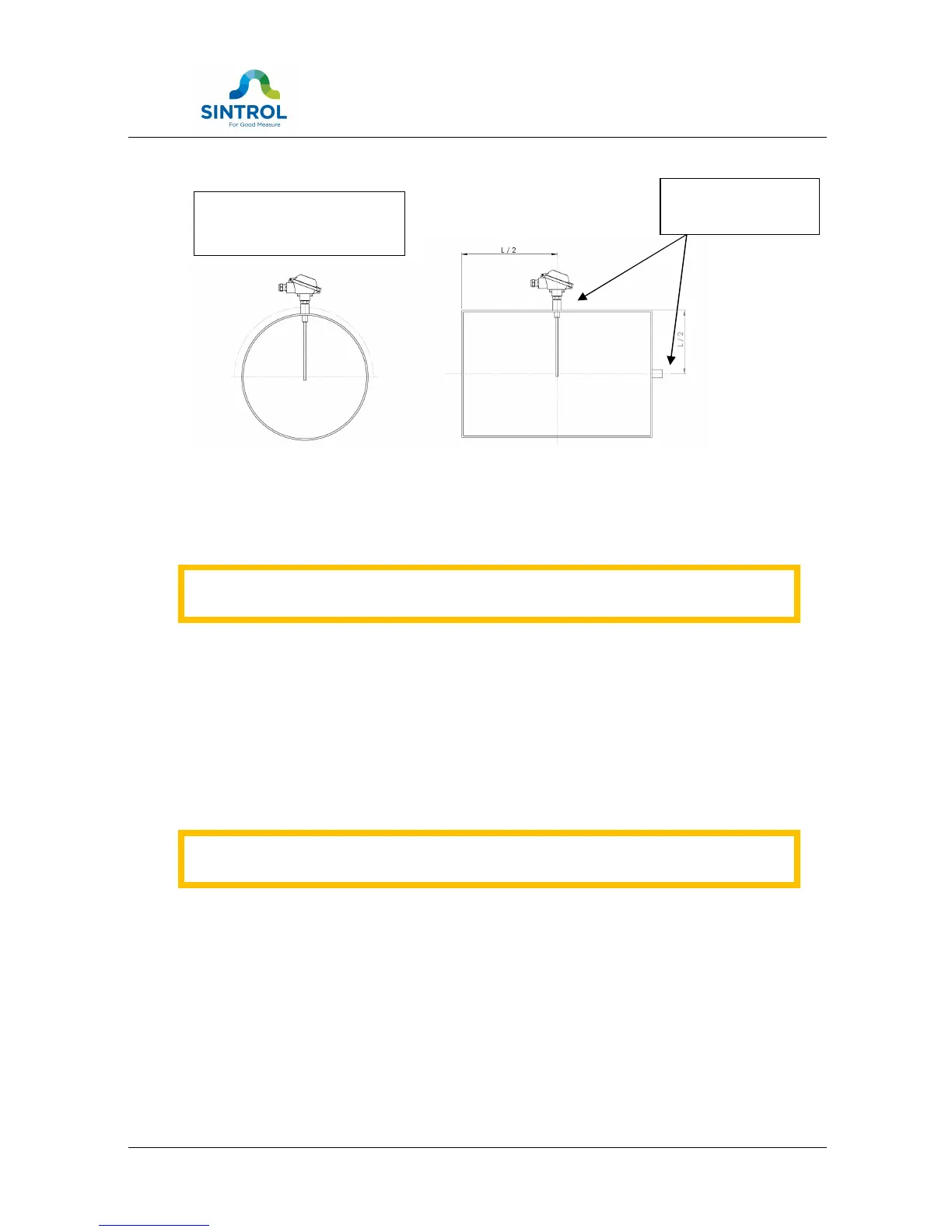

Figure 2 Round cross section duct Figure 3 Square cross section duct
NOTE
The sensor must not contact the opposite wall or any other obstacle inside the
duct. The only allowed interaction with sensor is dust particles.
2.2 Installing the sensor
Once the location of the unit has been selected, the Snifter mA+ EX RF with NPT
1/2” male thread can be installed to process with 1/2” female thread. Make sure
the installation is in the right position, insert the sensor inside the adapter and
rotate the unit until the connection is tight.
NOTE
Do not over tighten the Snifter mA+ EX RF with process connection - It may cause
damage to sensor and electronics.
The mounting
socket in the
The unit above
horizontal axis
