26

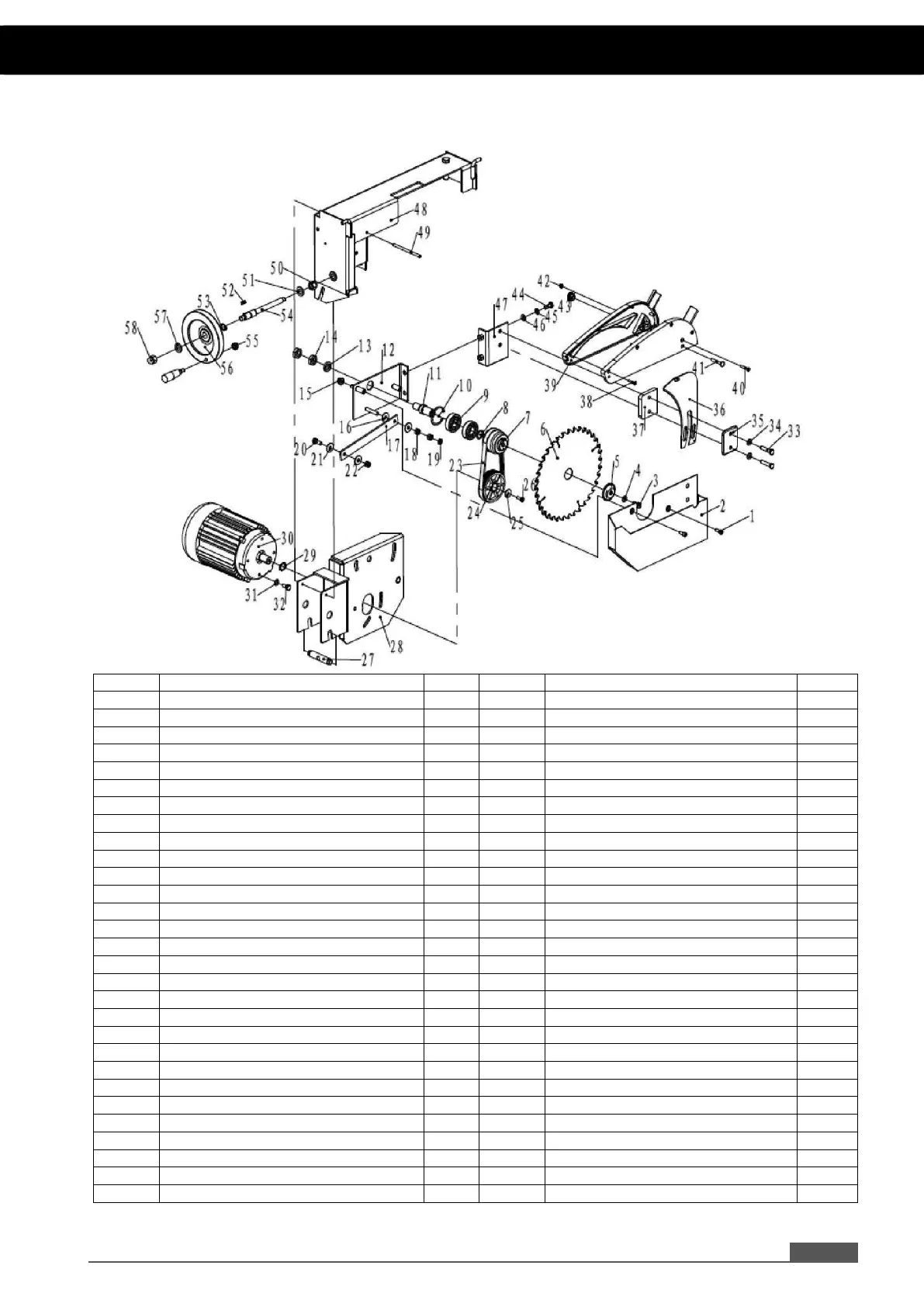

Diagram B-Saw unit
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
1 Screw M6X16 2 2 Dust collector 1
3 Hex bolt M8X16 1 4 Washer Ø8 1
5 Platen 1 6 Saw blade 1
7 Driven pulley 1 8 “C”ring Ø20 1
9 Bearing 6204 2 10 “C”ring Ø47 1
11 Saw axis 1 12 Parallel plate 1
13 Spring washer 16 1 14 Thin hex nut M16 2
15 Hex nut M8 2 16 Large washer Ø8 2
17 Connecting plate 1 18 Hex locking nut M8 2
19 Thin hex nut M8 1 20 Hex bolt M8X20 1
21 Large washer Ø8 2 22 Hex locking nut M8 1
23 Cuneal belt 1 24 Motor pulley 1
25 Very large washer Ø6 1 26 Hex bolt M6X16 1
27 Turning pole 1 28 Motor rack 1
29 “C”ring Ø19 1 30 Motor 1
31 Washer Ø8 3 32 Hex bolt M6X16 3
33 Hex bolt M8X35 2 34 Washer Ø8 2
35 Clamp plate 1 36 Riving wedge 1
37 Clamp plate 1 38 Screw 3.5X25 4
39 Exterior dust collector 1 40 Screw M5X30 1
41 Round bolt M6X40 1 42 Hex locking nut M5 1
43 Locking nut 1 44 Hex bolt M8X20 2
45 Spring washer 8 2 46 Washer Ø8 2
47 Parallel plate 1 48 Turning support 1
49 Pin 8X110 1 50 Hex locking nut M12 1
51 Washer Ø12 1 52 Key 5X15 1
53 “C”ring Ø16 1 54 Bolt shaft 1
55 Hex nut M8 1 56 Hand wheel 1
57 Washer Ø12 1 58 Hex nut M12 1
12. EXPLODED DRAWING
