27

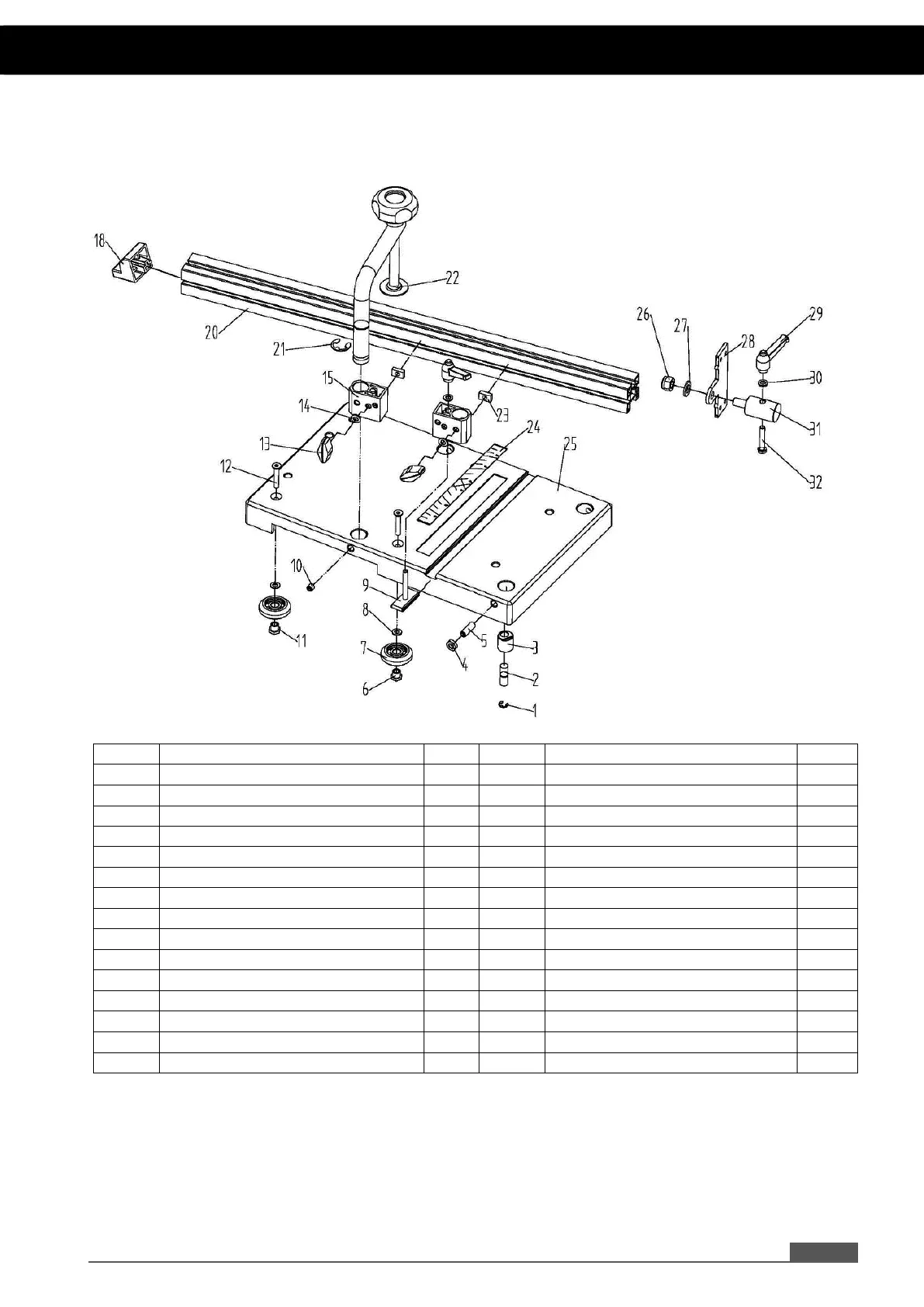

Diagram C-Sliding table
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
1 C-shaped ring 1 2 Sliding axle 1
3 Eccentric bush 1 4 Hex thin nut M8 1
5 Set screw M8X25 1 6 Eccentric nut 2
7 Trolley 4 8 Washer Ø6 4
9 T-shaped bolt 1 10 Set screw M8X10 1
11 Homocentric nut 2 12 Screw M6X35 4
13 Rhombic handgrip 2 14 Washer Ø6 3
15 Connecting block 2 18 Plastic block 1
19 Hex bolt M6X25 1 20 Angle fence 1
21 “E” ring Ø12 1 22 Press handle 1
23 Hex nut M6 2 24 Angle.ruler 1
25 Sliding table 1 26 Locking nut M10 1
27 Washer Ø10 1 28 Turing plate 1
29 Small handgrip 2 30 Washer Ø6 1
31 Locating pole 1 32 Hex bolt M6X35 1
13. PARTS LIST
