6
UNPACKING
Check for shipping damage. If damage has occurred, a claim must be filed with carrier. Check for
completeness. Immediately report missing parts to dealer.

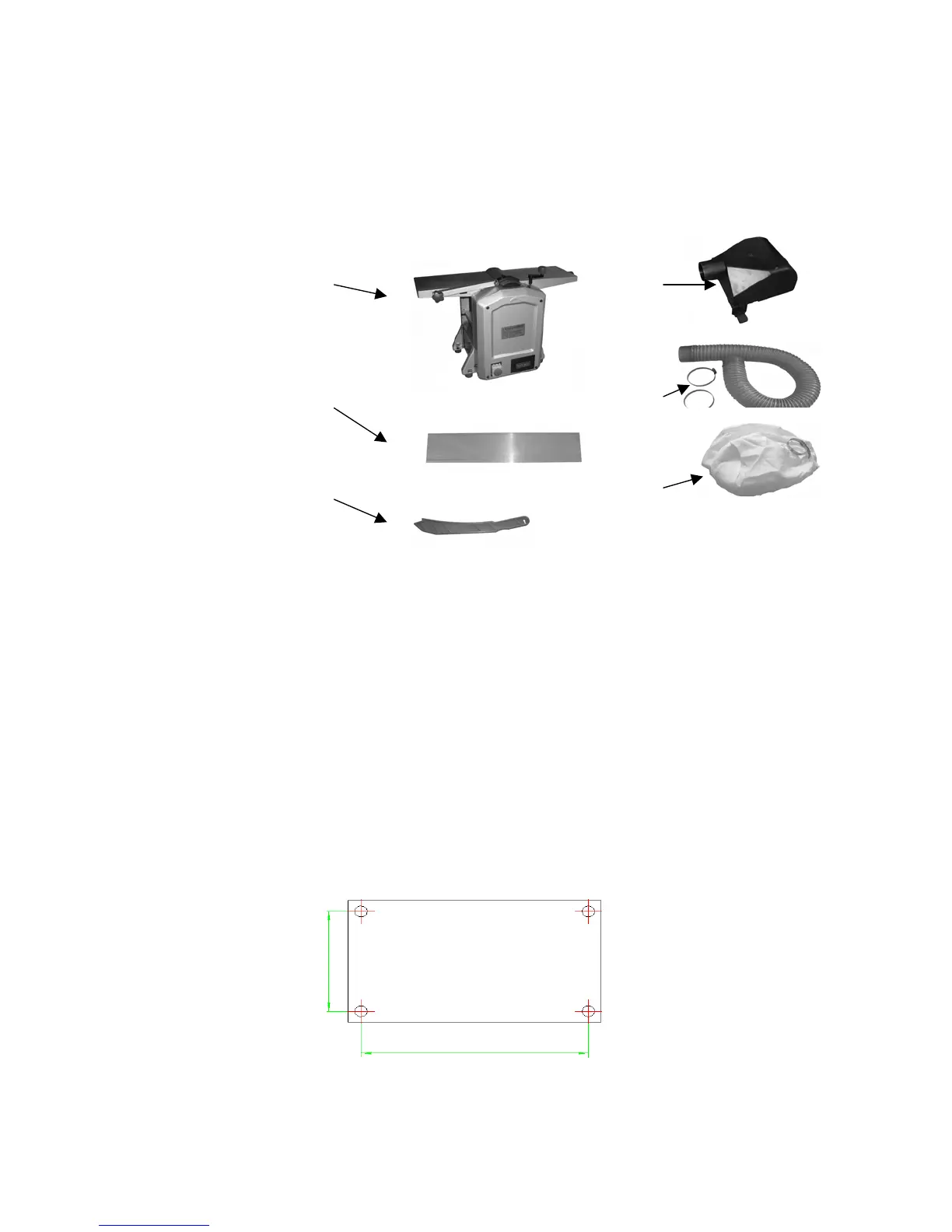

The machine is shipped complete in one carton. Additional parts which need to be fastened to machine
should be located and accounted for before assembling. Refer to figure 1.
A. Planer and Thicknesser
B.
Dust collector
C. Guide fence
D. Extraction hose and clamps A B
E. Bag
F. Push-stick
C D
F E
Figure 1
INSTALLATION
The planer weighs approximately 32Kg. when completely assembled. The planer must be installed in a
place with ample lighting and correct power supply. To install planter:
-Make sure there is plenty of room for moving the work-piece through the entire cut. There must be enough
room that neither the operators nor the bystanders will have to stand in line with the wood while using the
tool.
-Planer should be installed on a workbench using bolts, Locking Nuts and hex nuts.
-The planer must be bolted to a firm, level surface.
-Make sure the planer does not rock and the tables are level.
Refer to Figure 2
380
Figure 2
240
