9
OPERATION REGULATIONS
ATTENTION: Make sure that the switch is in off position before adjusting the cutting depth, replacing or
adjusting the blades. Make sure the blade screws are securely tightened.

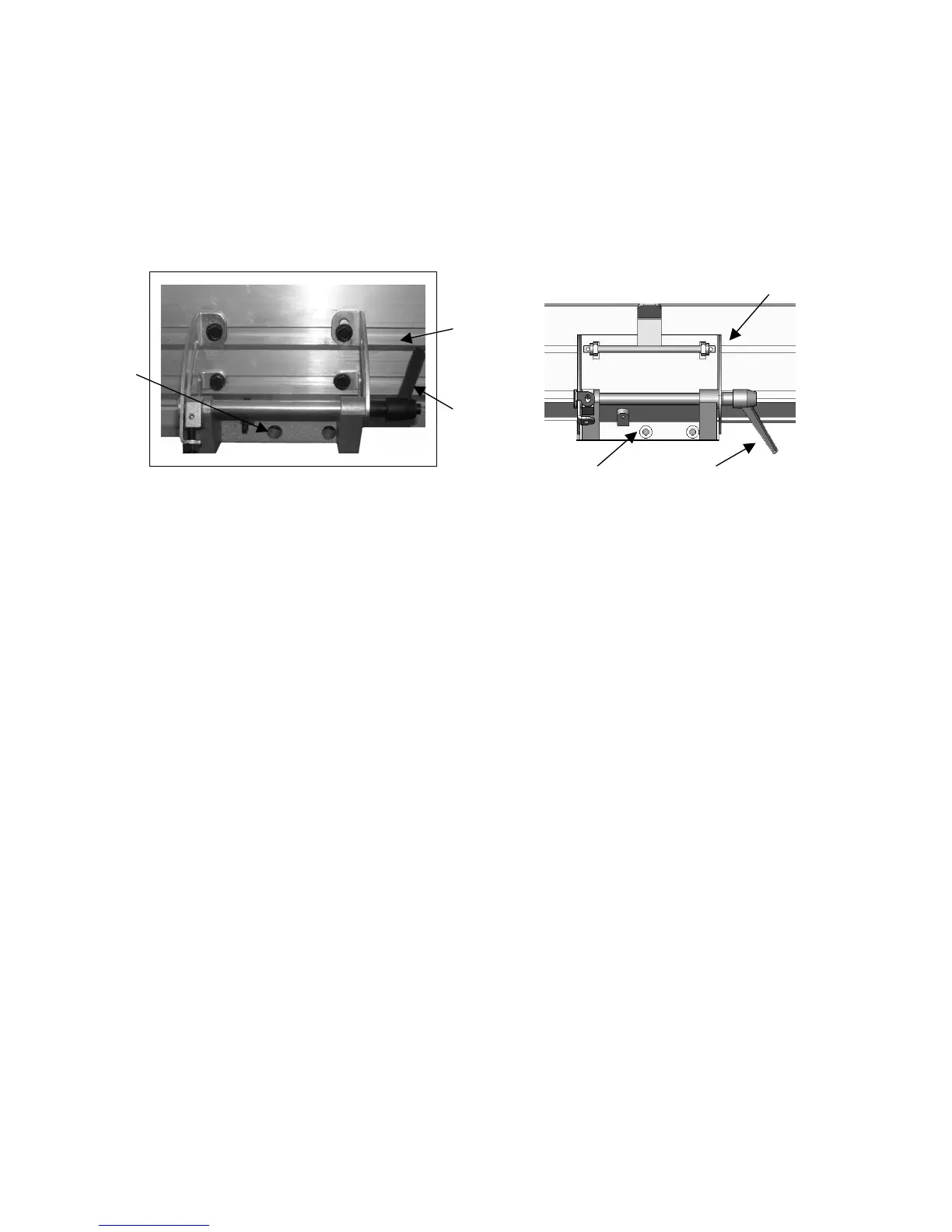

SETTING ANGLE FENCE
Insert screw into hole A, then locate the fence on screw; tighten screw.
Loosen the lock handle B to adjust the fence angle.
Refer to figure 5
3
A
B
Figure 5
△
The angle fence has some different modus, if you have any question about it, please contact the
Seller.
OVERLOAD PROTECTION
If the motor protection responds, this always indicates that the motor is overloaded. The cause must be
located and the fault eliminated.
If the motor is overloaded or in the event of power failure, the motor switches off automatically. The
machine can not be switched on again until the motor is cooled down or the power supply has been
restored.
CHIP EXTRACTION
To ensure trouble free and reliable operation on enclosed premises, the machine must be connected to
an extractor unit at the dust collector 1 (accessory)
DUST COLLECTOR CONNECTION WHEN PLANING :
- Connect the dust collector to the extremity of cannulation by hoop.
- Connect the other extremity of cannulation to the fan house entrance by hoop.
- Fit the chip bag to the fan house export.
- Lift up the blade guard arm C so that the longitude holes D being exposed;
- Pull out the key E on both sides of the dust collector 1;
- Move down the working table 12 to the lowest position, and insert the dust collector 1; referring to Fig.
9,10.
AB
3
